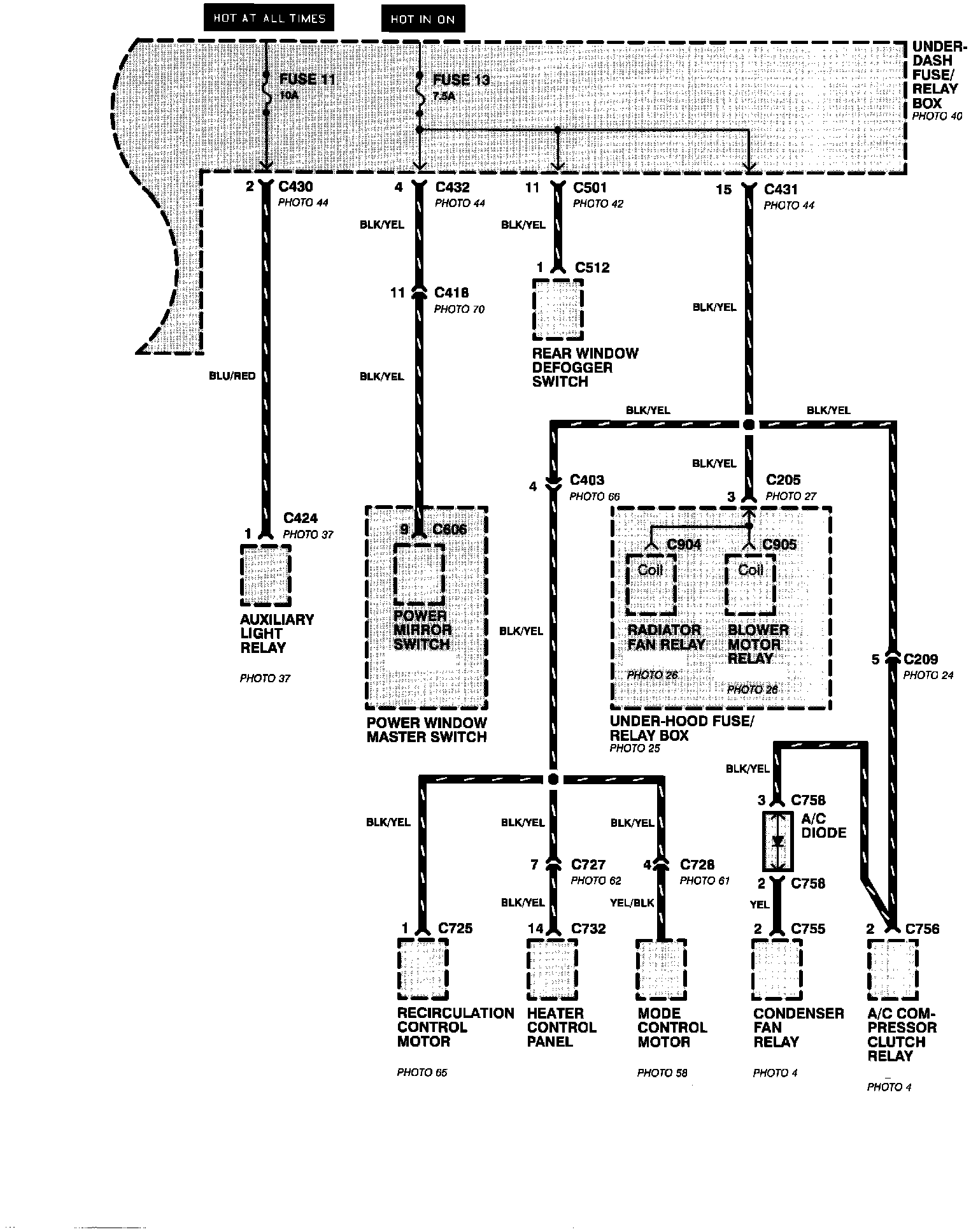

Fuse 5, 7, 8, 11, 13, and 14
Fuse 5, 7, 8, 11, 13, and 14
Power Distribution: Fuses And Relays To Components:
Power Distribution: Fuses And Relays To Components:
