Home >> Honda >> 1993 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 3, 17, and 18

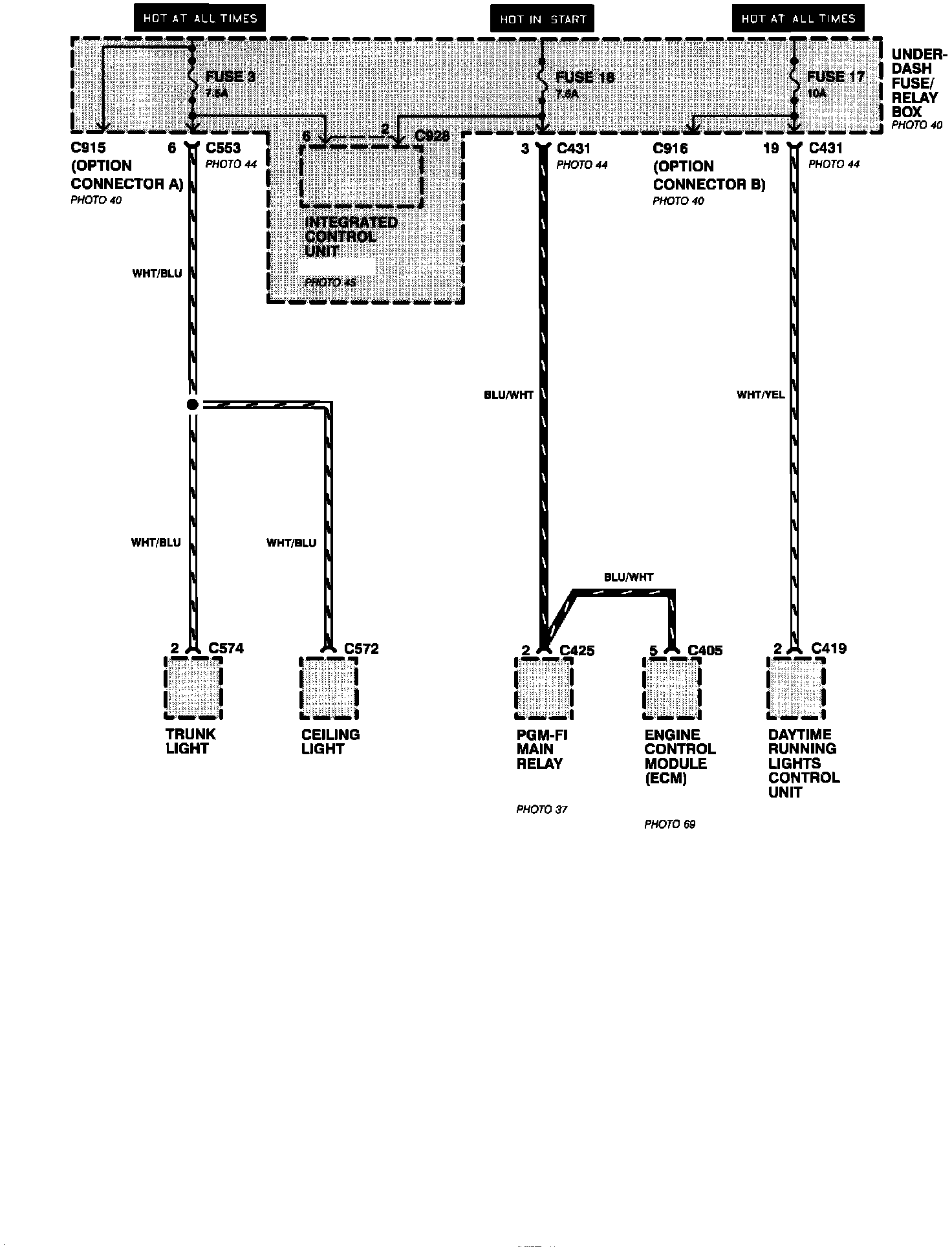

Fuse 3, 17, and 18

Power Distribution: Fuses And Relays To Components:
