Home >> Honda >> 1993 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 24 and 25

Fuse 24 and 25

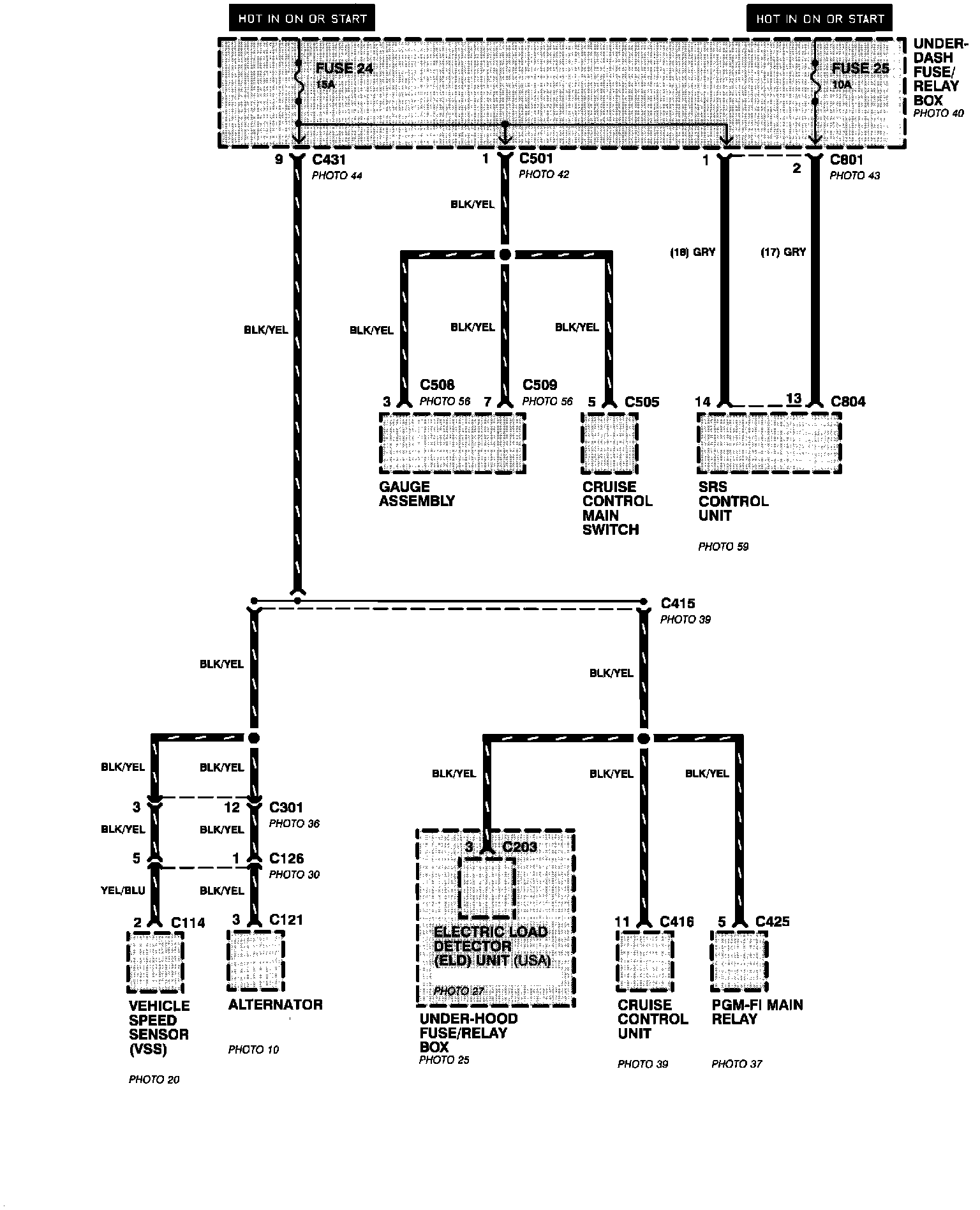

Power Distribution: Fuses And Relays To Components:
