Removal and Installation/Replacement

1. Disconnect the cable from the battery negative (-) terminal.

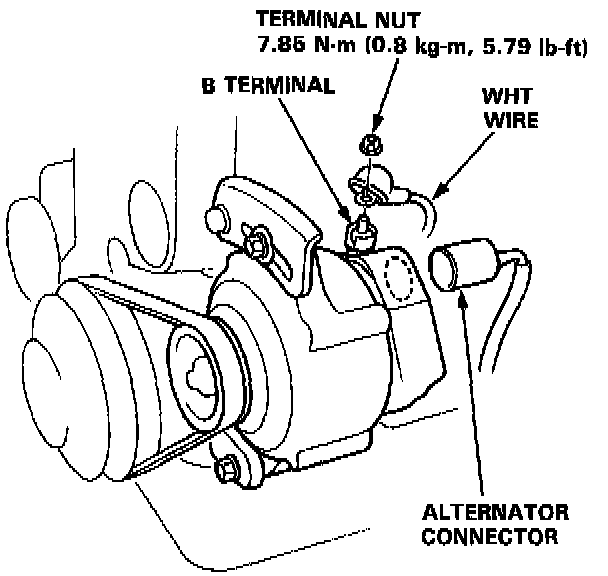

2. Disconnect the alternator connector from the alternator.

Alternator Removal:

3. Remove the terminal nut and the WHT wire from the B terminal.

4. Remove the adjusting bolt and through bolt nut, then remove the alternator belt from the pulley.
5. Pull out the alternator through bolt, then remove the alternator.

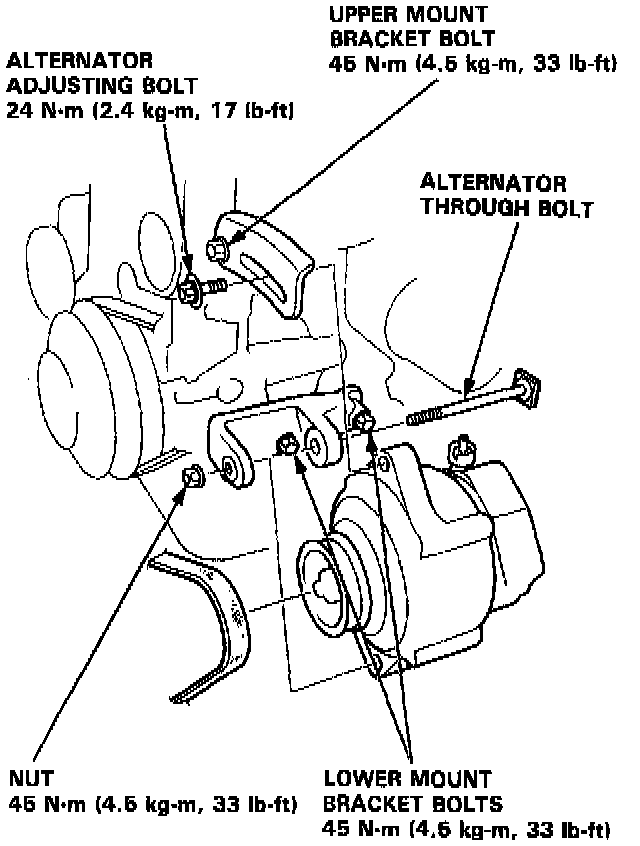

Alternator Removal:

6. If necessary, remove the mount bracket bolts, and the upper and lower mount brackets.
7. Adjust the alternator belt tension after installation, refer to Engine/Drive Belts, Mounts, Brackets and Accessories/Drive Belt/Alternator/Service and Repair
