Torque Specifications

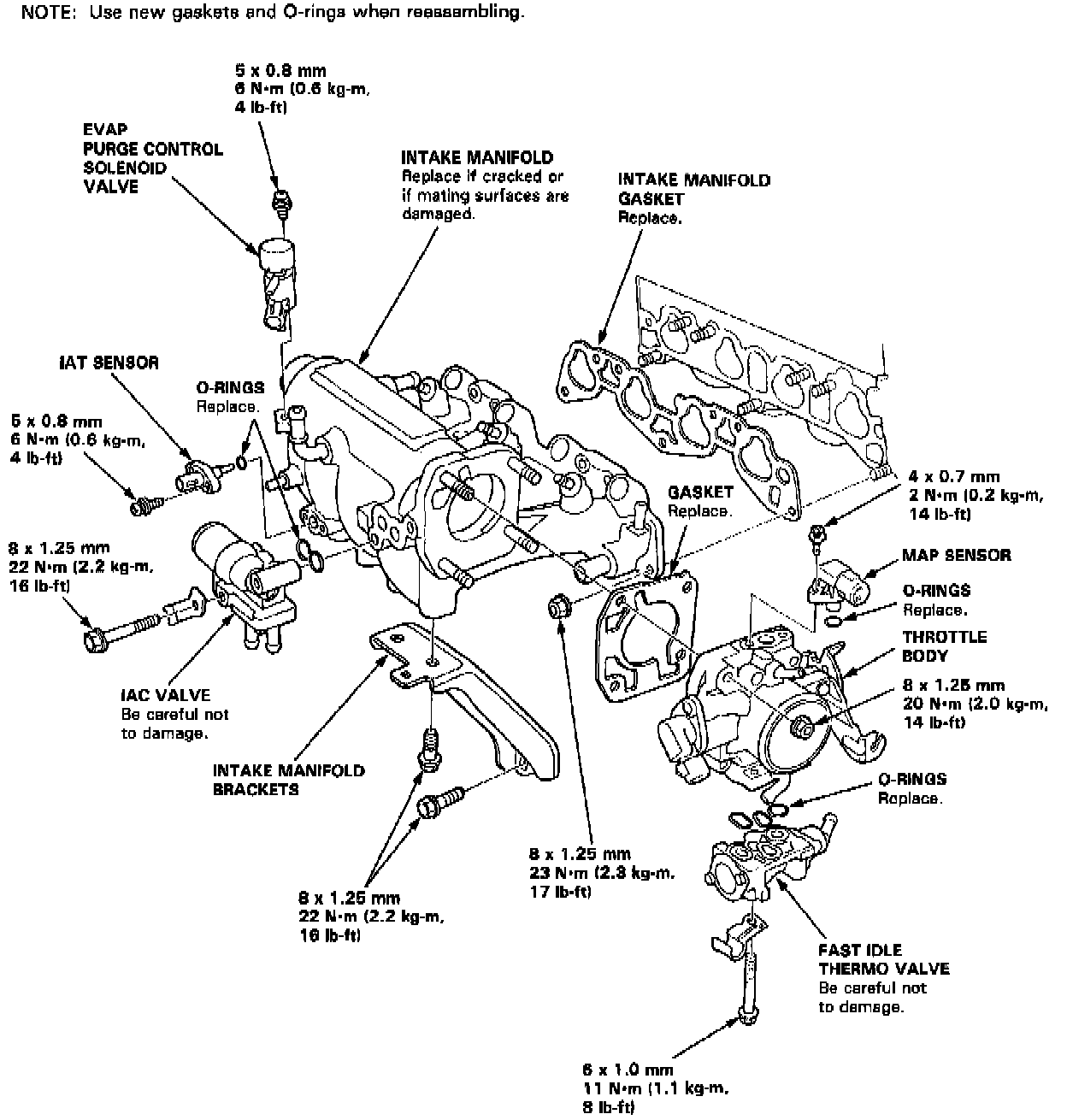

Intake:

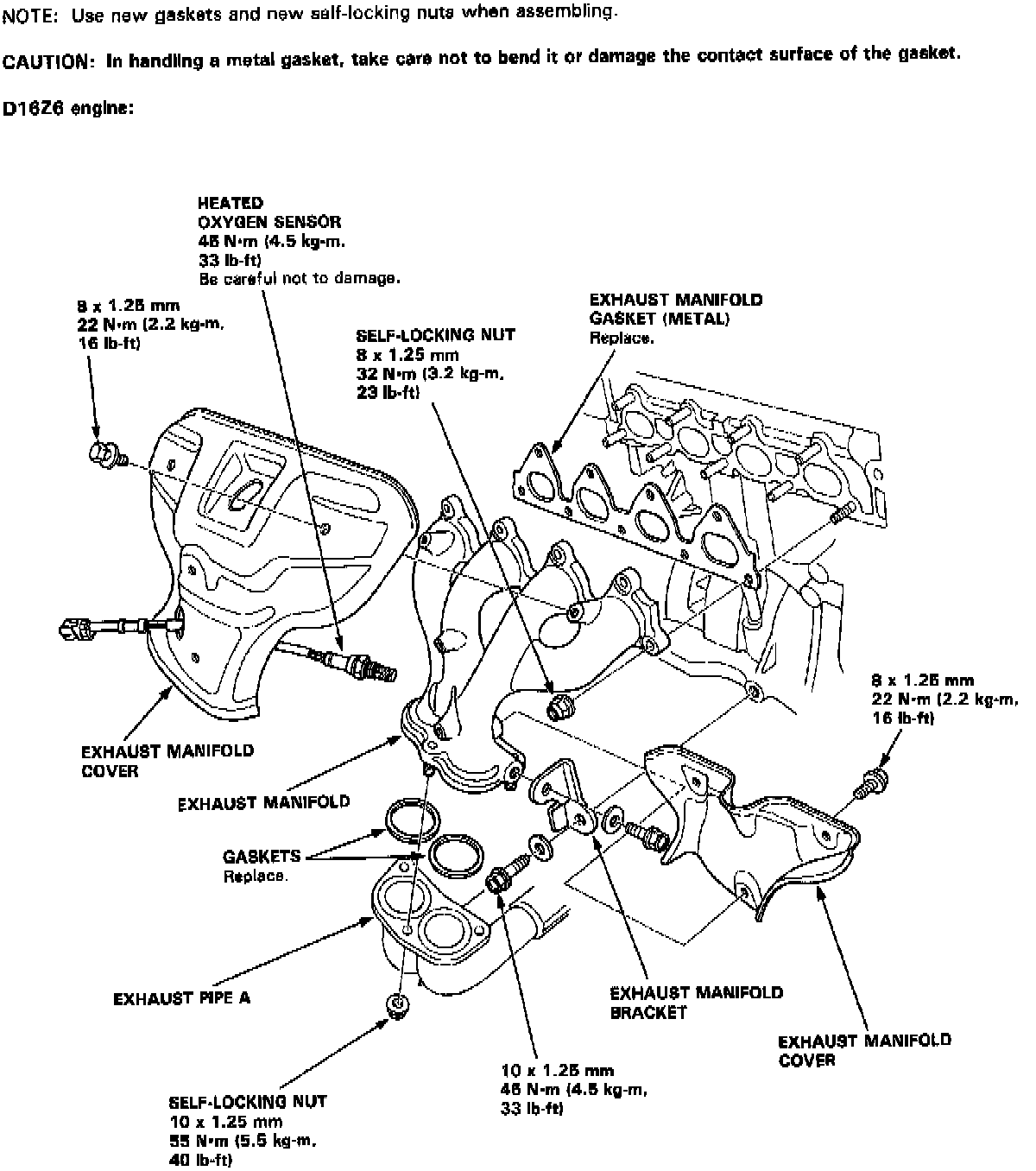

Exhaust Manifold (D16Z6):

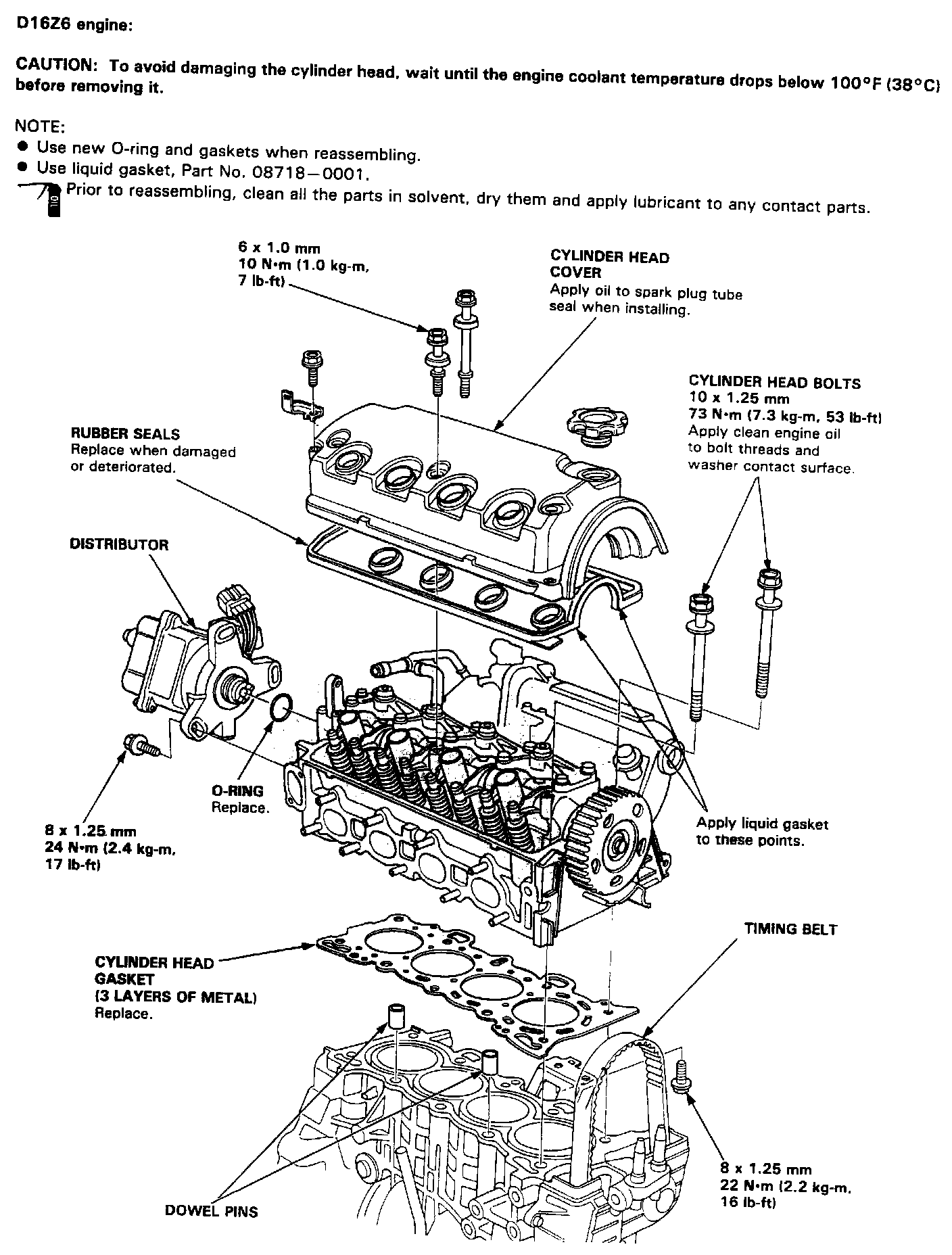

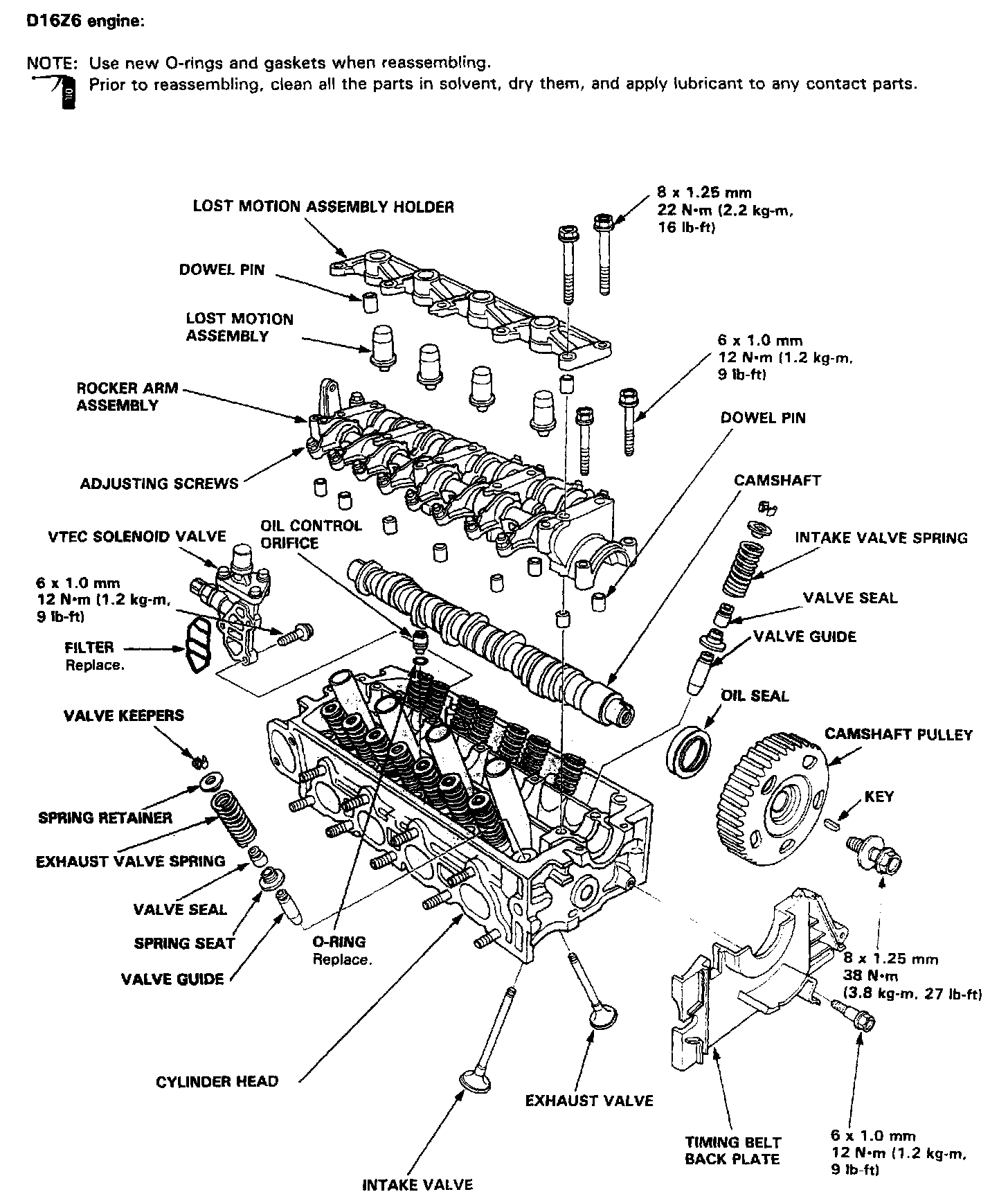

Upper Engine (D16Z6):

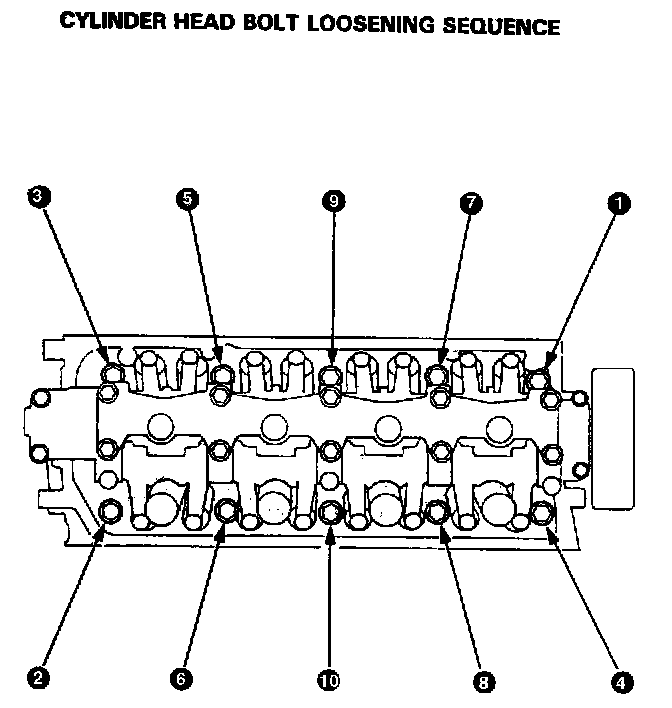

Head Bolt Loosening Sequence:

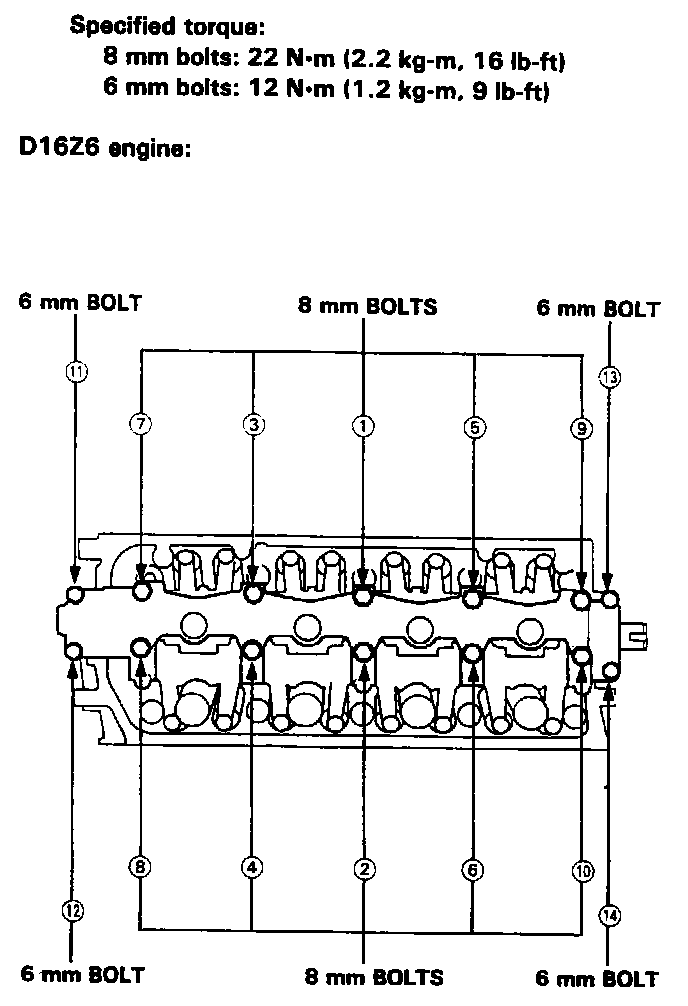

Cam Holder Torque Sequence - Tighten 2 Turns At A Time.:

Cylinder Head Torque Sequence:

Tighten cylinder head bolts in sequence in two steps:

1st step: 30 N.m (3.0 kg-m, 22 lb.ft)
2nd step: 73 N.m (7.3 kg-m, 53 lb.ft)

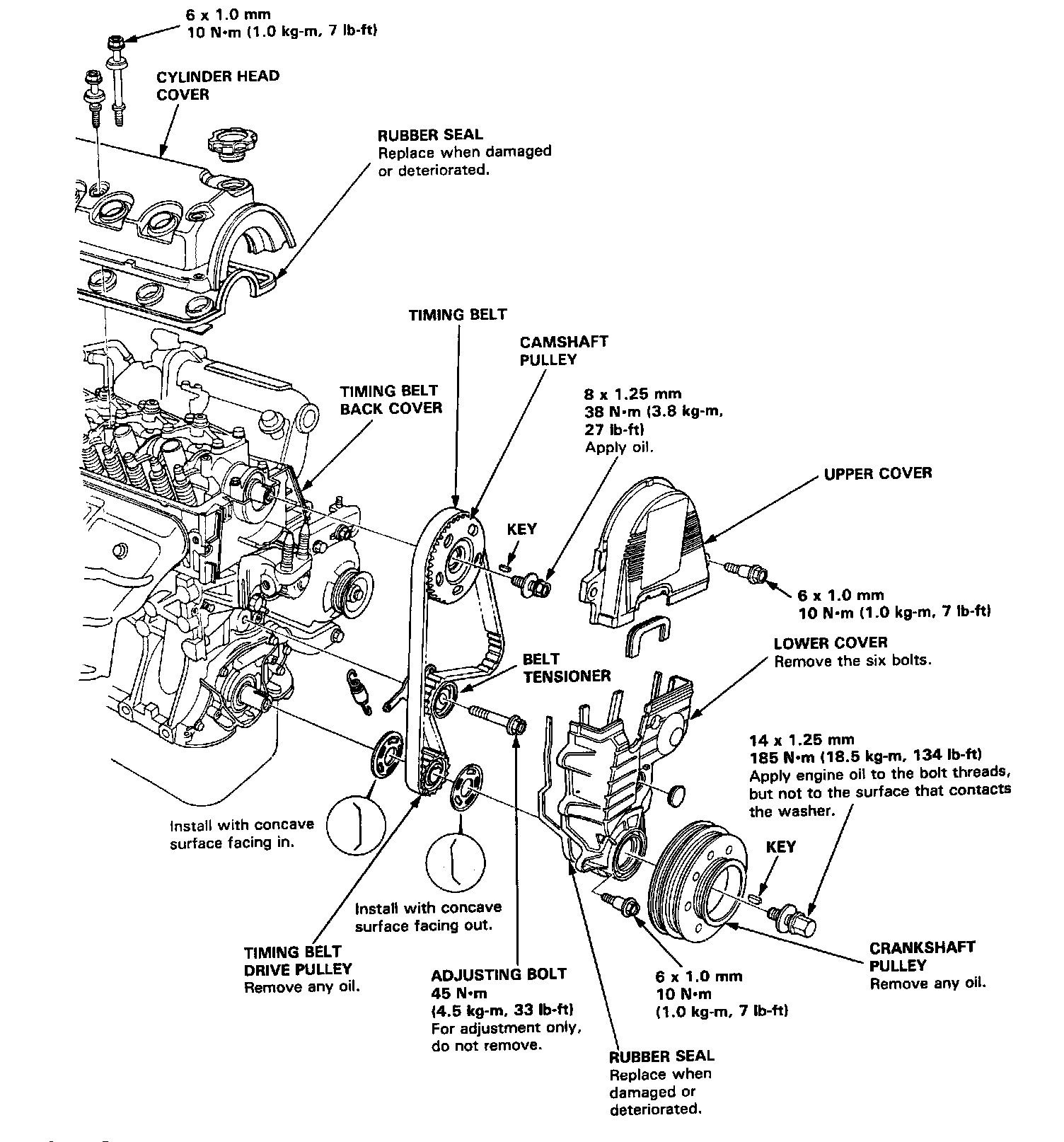

Timing Components (D16Z6):

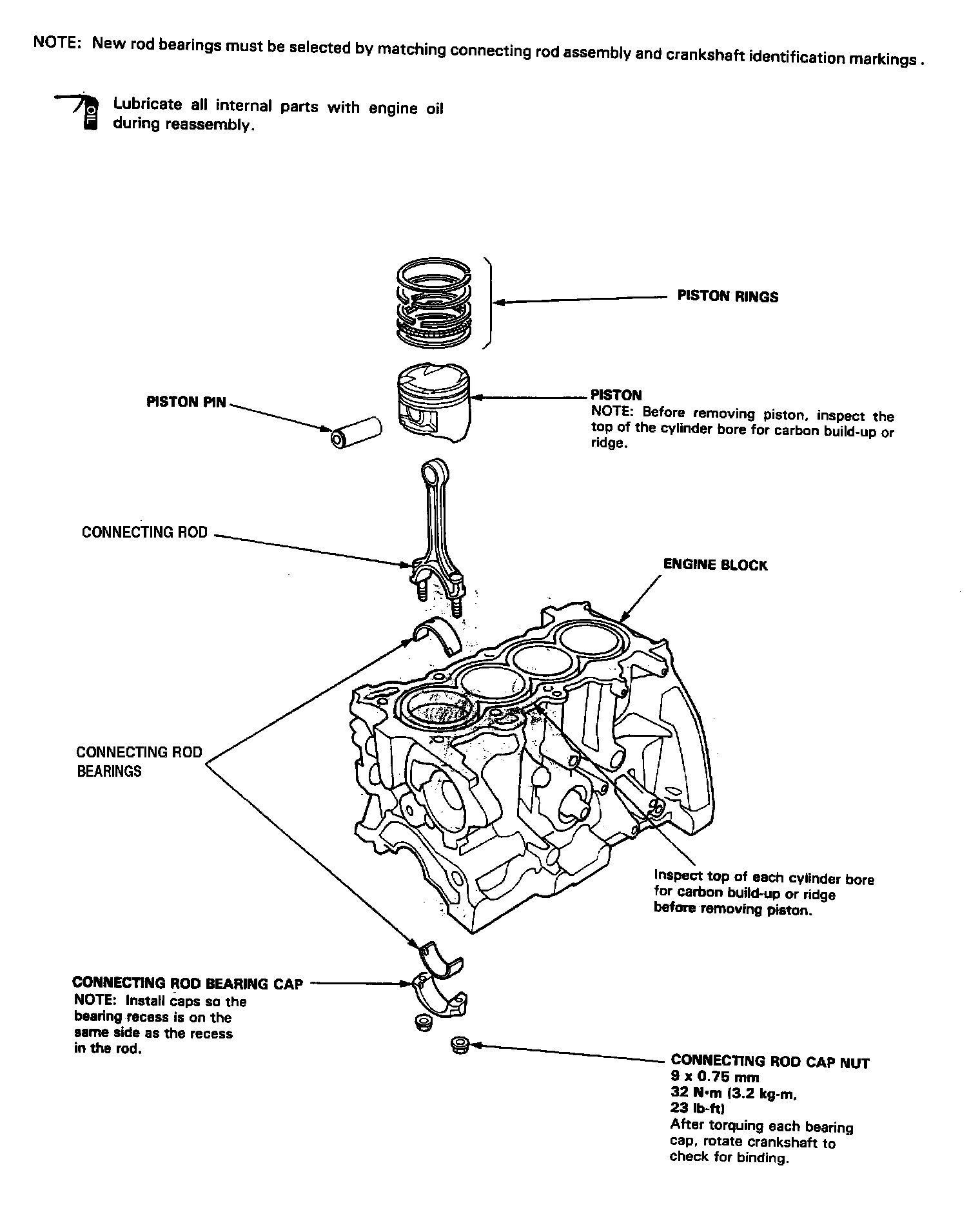

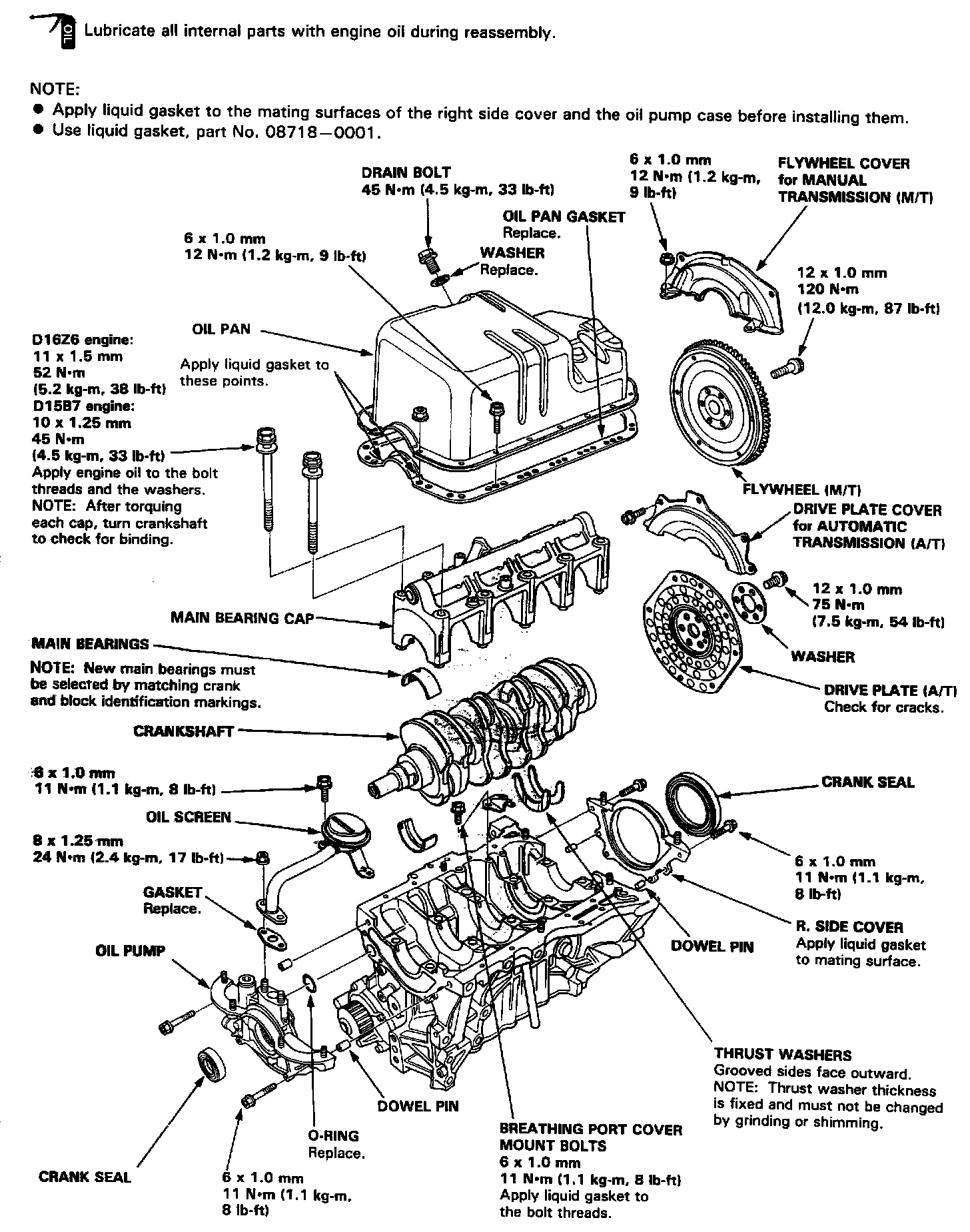

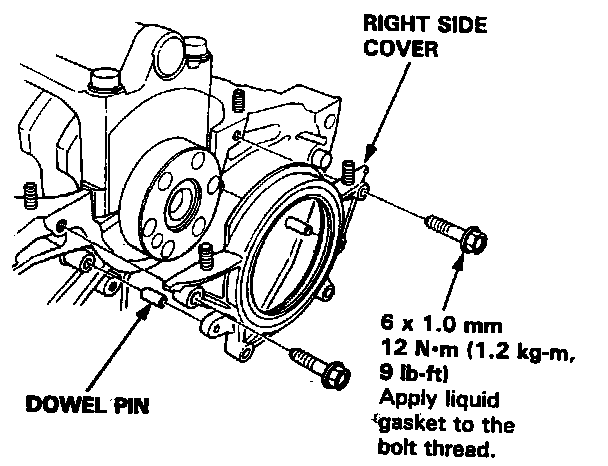

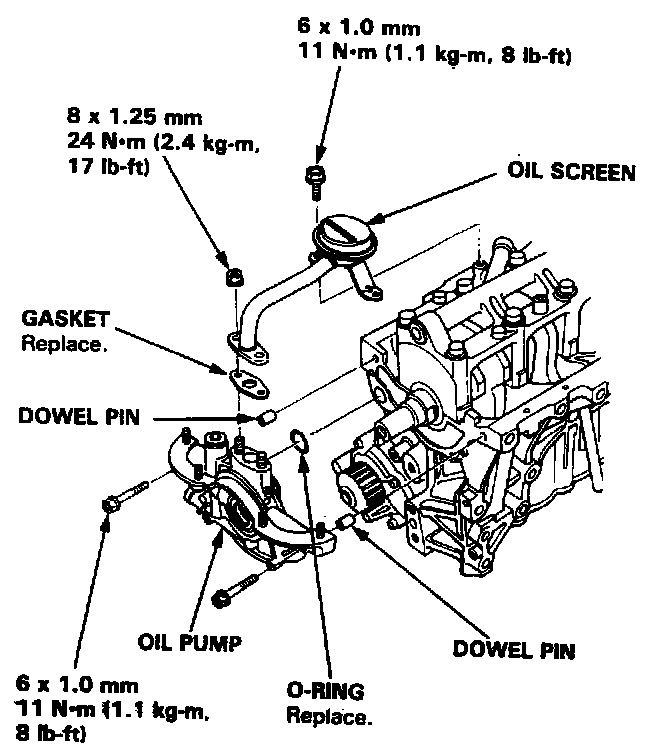

Lower Engine:

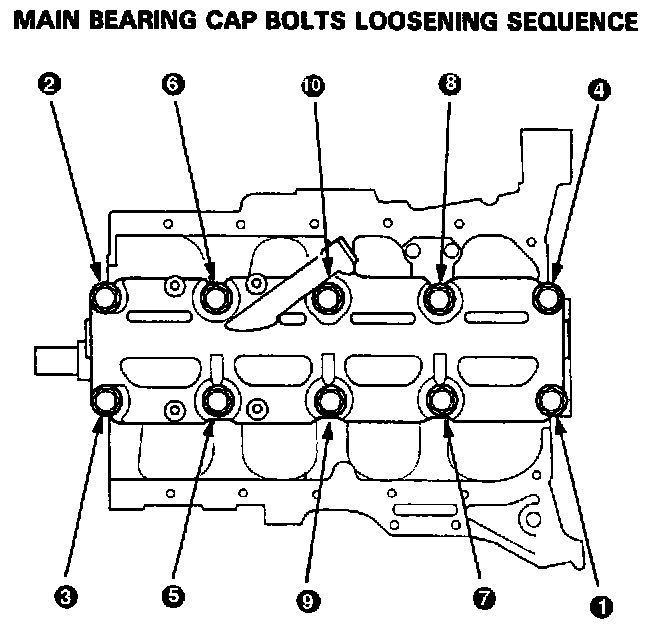

Main Bearing Loosening Sequence:

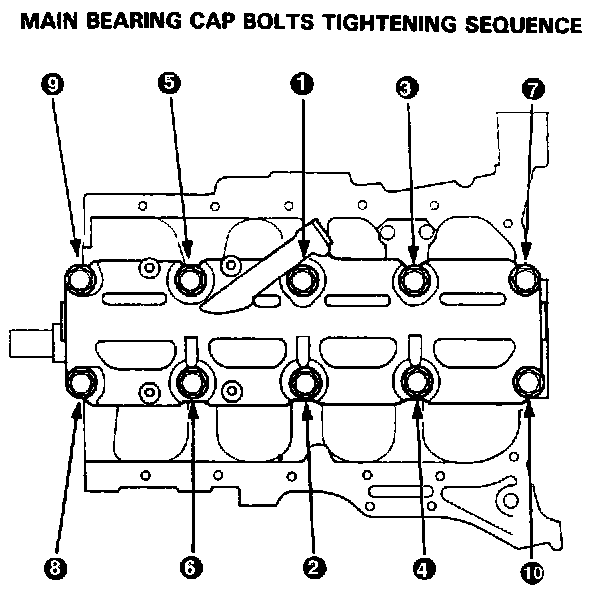

Main Bearing Torque Sequence:

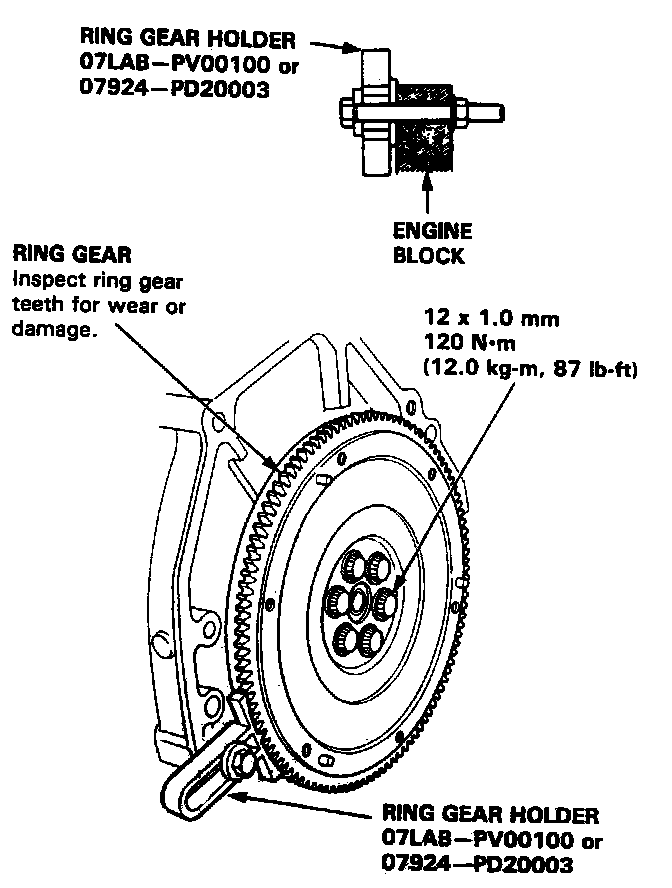

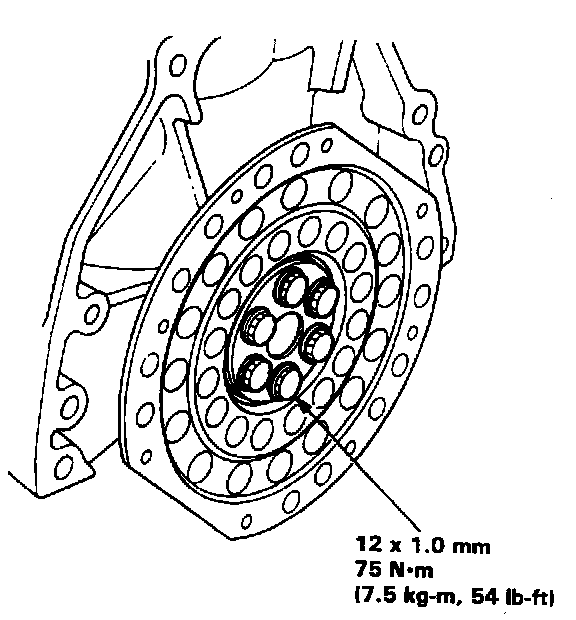

Flywheel (M/T) Torque:

Drive Plate (A/T) Torque:
