Air Bag Control Module: Service and Repair

REMOVAL

CAUTION:
^ Before disconnecting any part of the SRS wire harness, install the short connector on the airbag.
^ Do not damage the SRS unit terminals or connectors.
^ Do not disassemble the SRS unit; it has no serviceable parts.
^ Store the SRS unit in a clean, dry area.
^ Do not use any SRS unit which has been subjected to water damage or shows signs of being dropped or improperly handled, such as dents, cracks or deformation.

1. Disconnect the battery negative cable, then the positive cable.
2. Install the short connector on the airbag, refer to Short Connector.

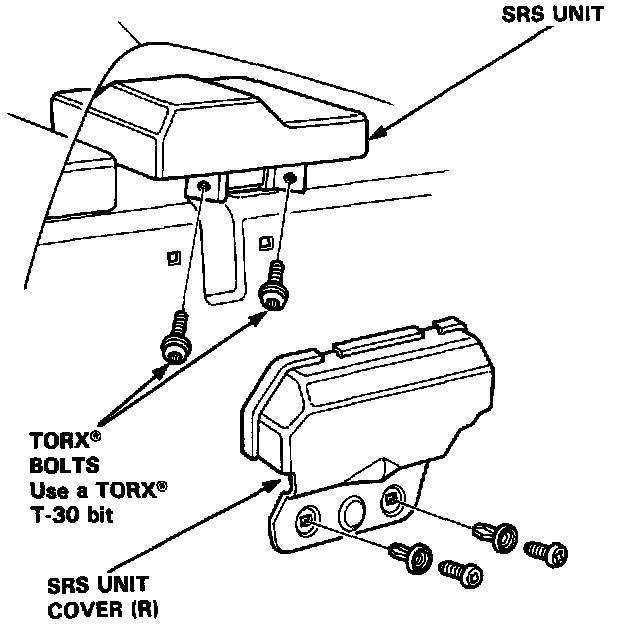

Right Side Cover Removal:

3. Remove the right side cover from the SRS unit.

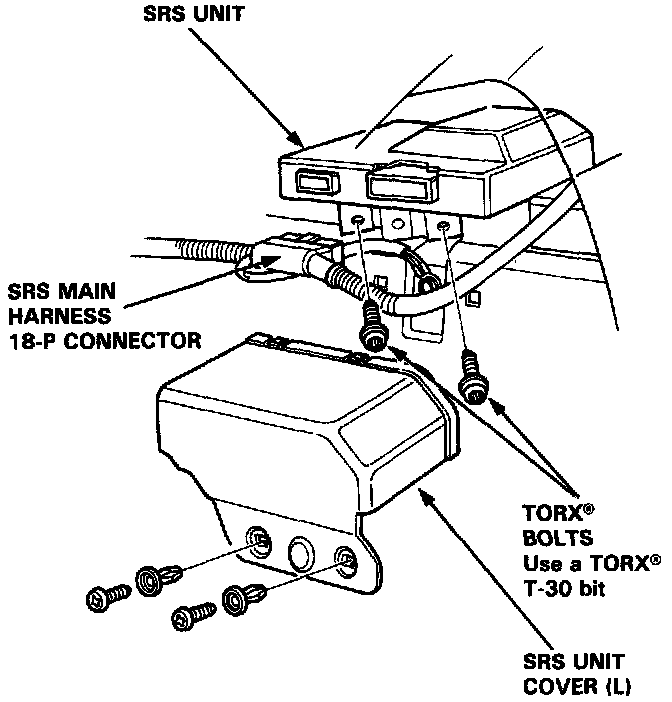

Left Side Cover Removal:

4. Remove the left side cover from the SRS unit, then disconnect the SRS main harness 18-P connector from the SRS unit.
5. Remove the SRS unit TORX bolts, then pull the SRS unit out from the driver's side.


INSTALLATION

CAUTION: Be sure to install the SRS wiring so that it is not pinched or interfering with other parts.

SRS Unit Installation:

1. Install the SRS unit.
2. Connect the SRS main harness 18-P connector to the SRS unit; push it into position until it clicks.
3. Install the SRS unit covers (right and left).
4. Remove the short connector from the airbag.

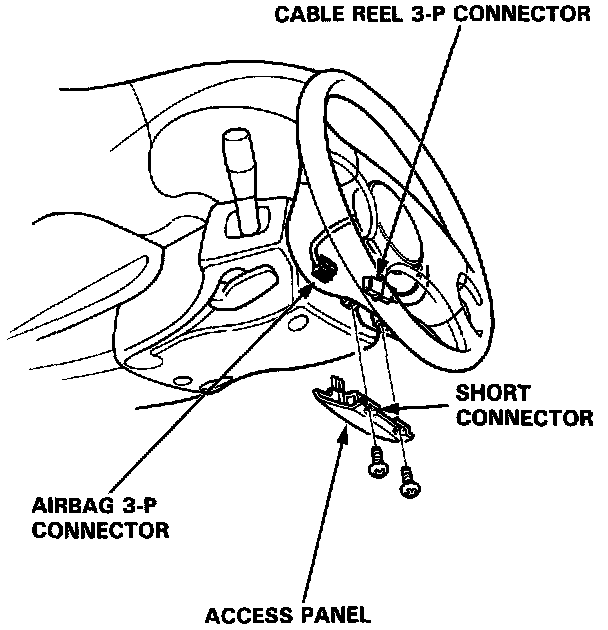

Storage Of The Short Connector And Installation Of Access Panel:

5. Reconnect the airbag connector to the cable reel connector. Attach the short connector to the access panel, then reinstall the panel.
6. Reconnect the battery positive cable, then the negative cable.
7. After installing the SRS unit, confirm proper system operation: Turn the ignition to II: the instrument panel SRS light should go on for about 6 seconds and then go off.
