22 VTEC Pressure Switch

DTC 20 - Electrical Load Detector (ELD)

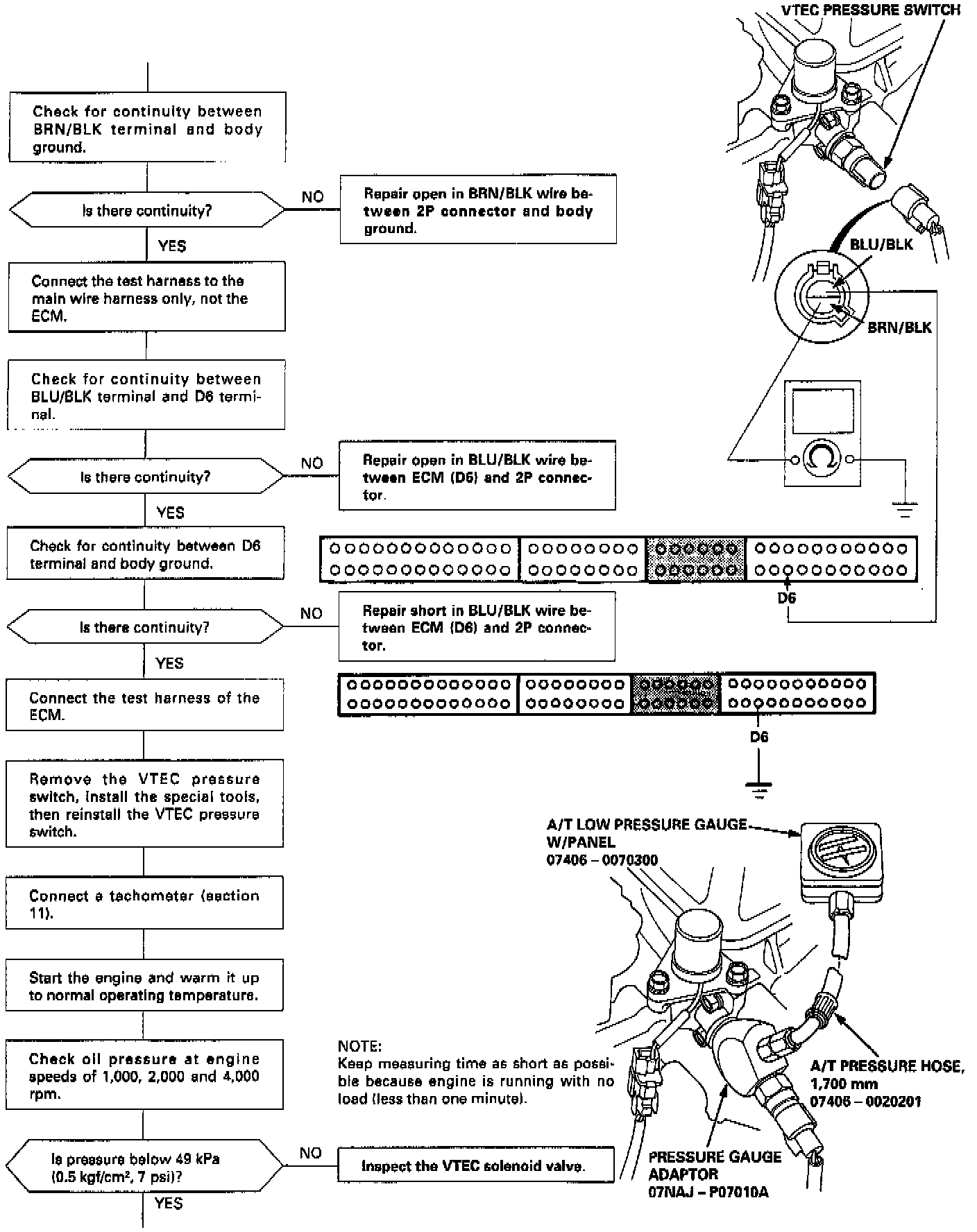

DTC 22 - VTEC Presure Switch - Page 1:




DTC 22 - VTEC Presure Switch - Page 2:




DTC 22 - VTEC Presure Switch - Page 3:





The Check Engine warning light may come on, indicating a system problem, when, in fact, there is a poor or intermittent electrical connection. First, check the electrical connections, clean or repair connections if necessary.
