Home >> Honda >> 1993 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

Programmed Fuel Injection System:

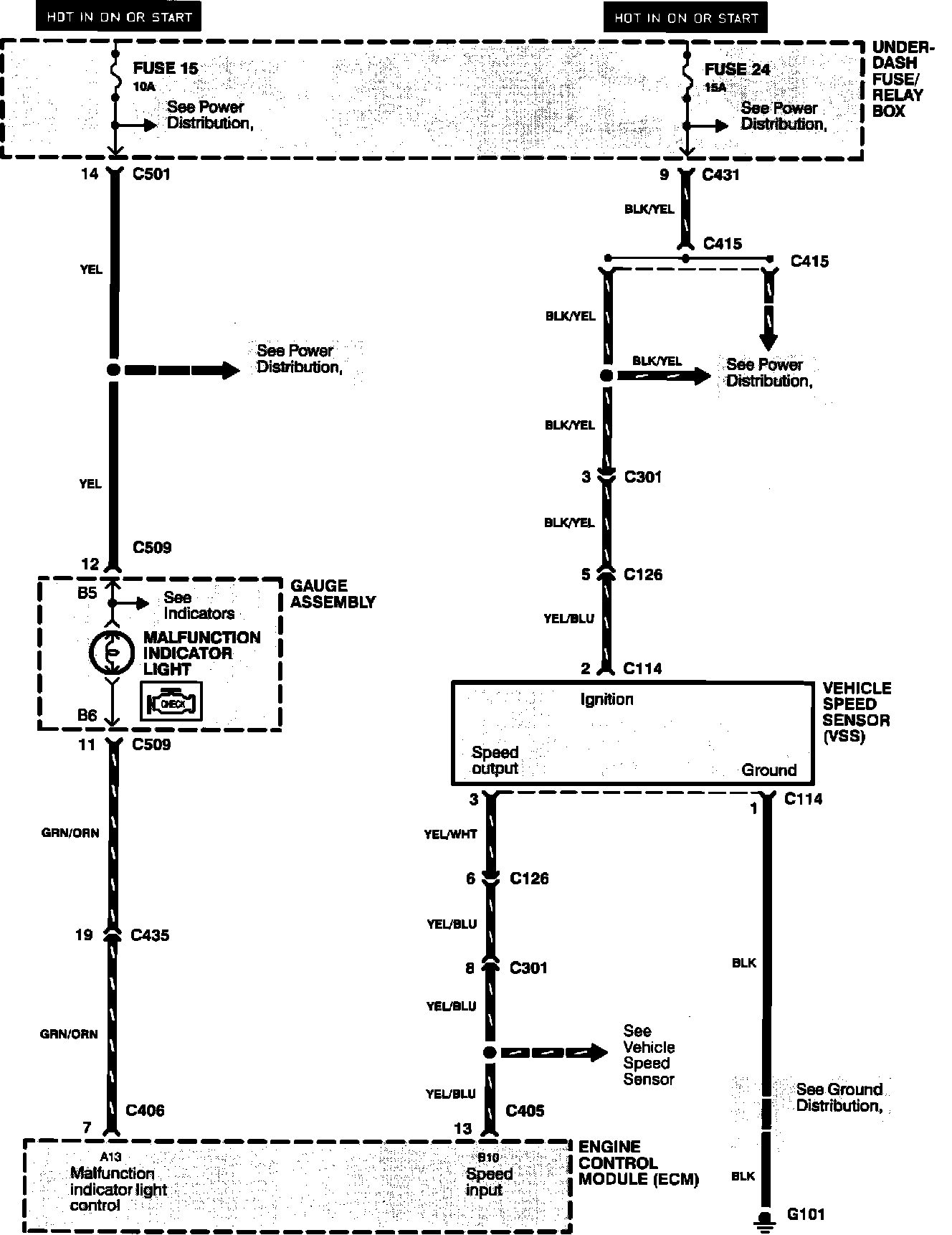

Engine Management (PGM-FI): Malfunction Indicator Light (MIL And Vehicle Speed Sensor (VSS):
