Del Sol L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom
>>
A/C Clutch and Both Cooling Fans Do Not Come on
>>
Part 1 of 2
Part 1 of 2

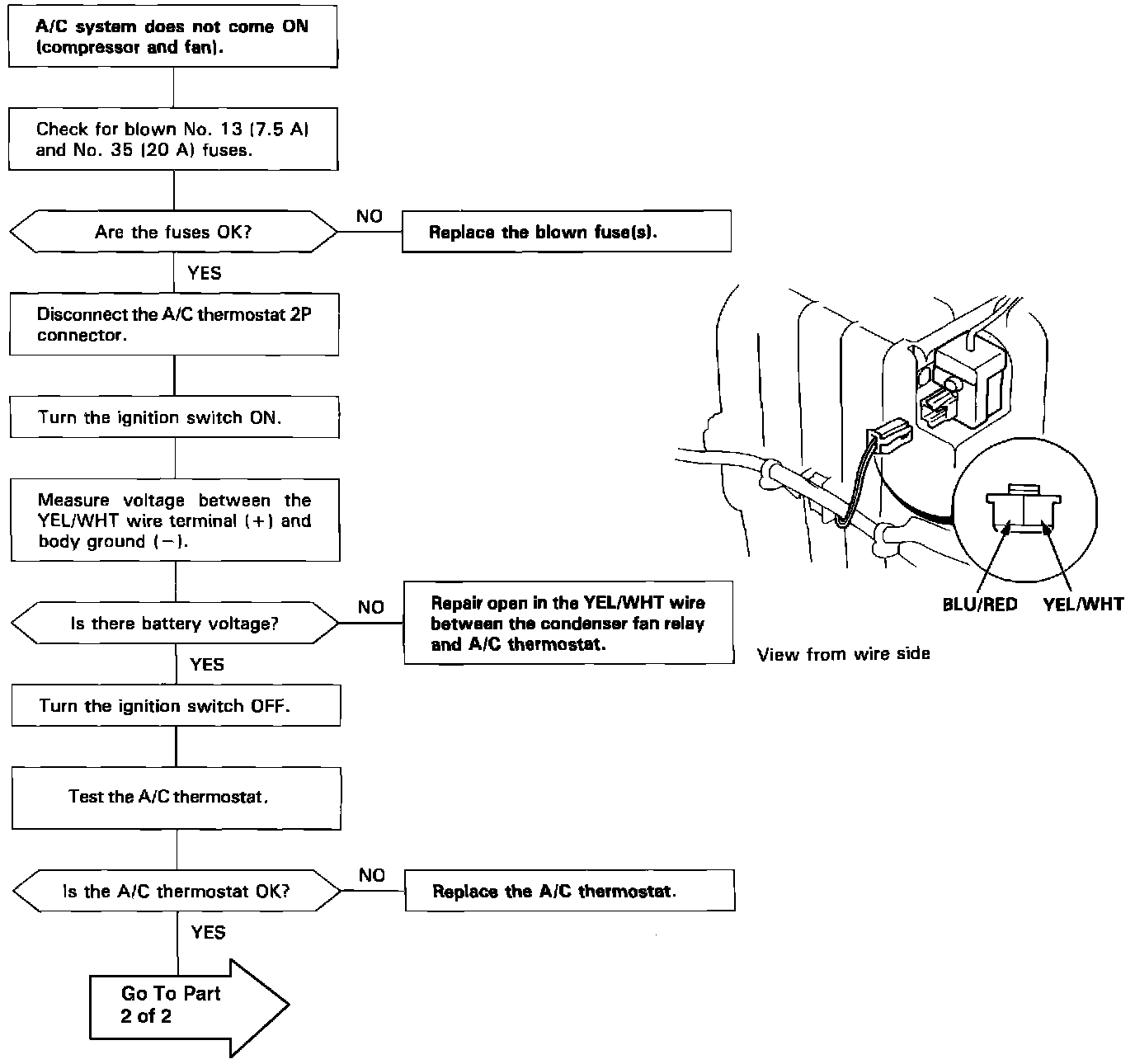

A/C System Does Not Come ON (Part 1 Of 2):
