Home >> Honda >> 1993 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Testing >> Recirculation Control Switch

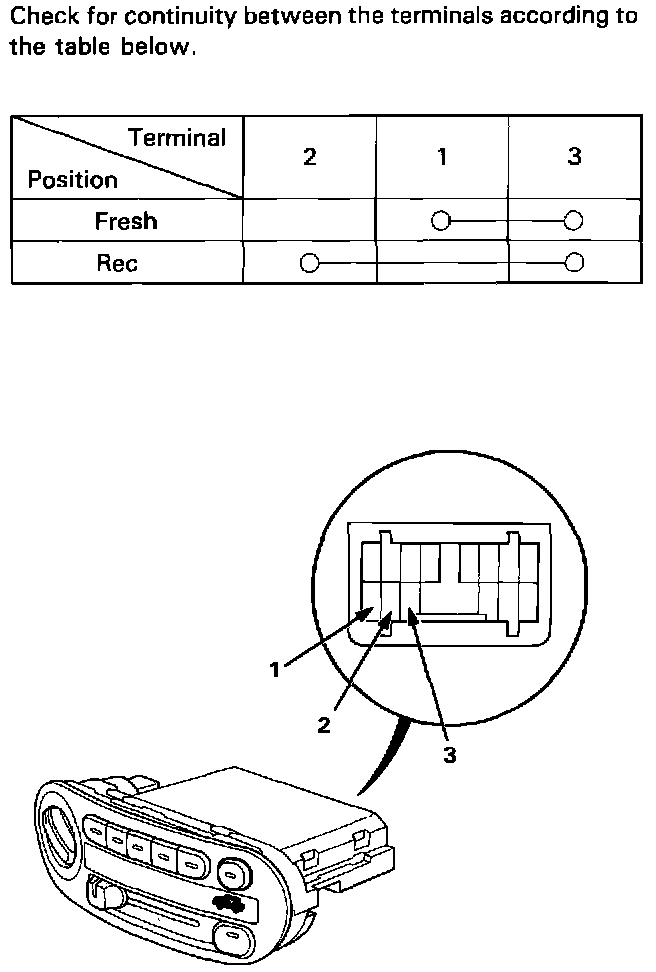

Recirculation Control Switch

Recirculation Control Switch Test:
