Home >> Honda >> 1993 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Testing >> Blower Motor >> Part 1 of 3

Part 1 of 3

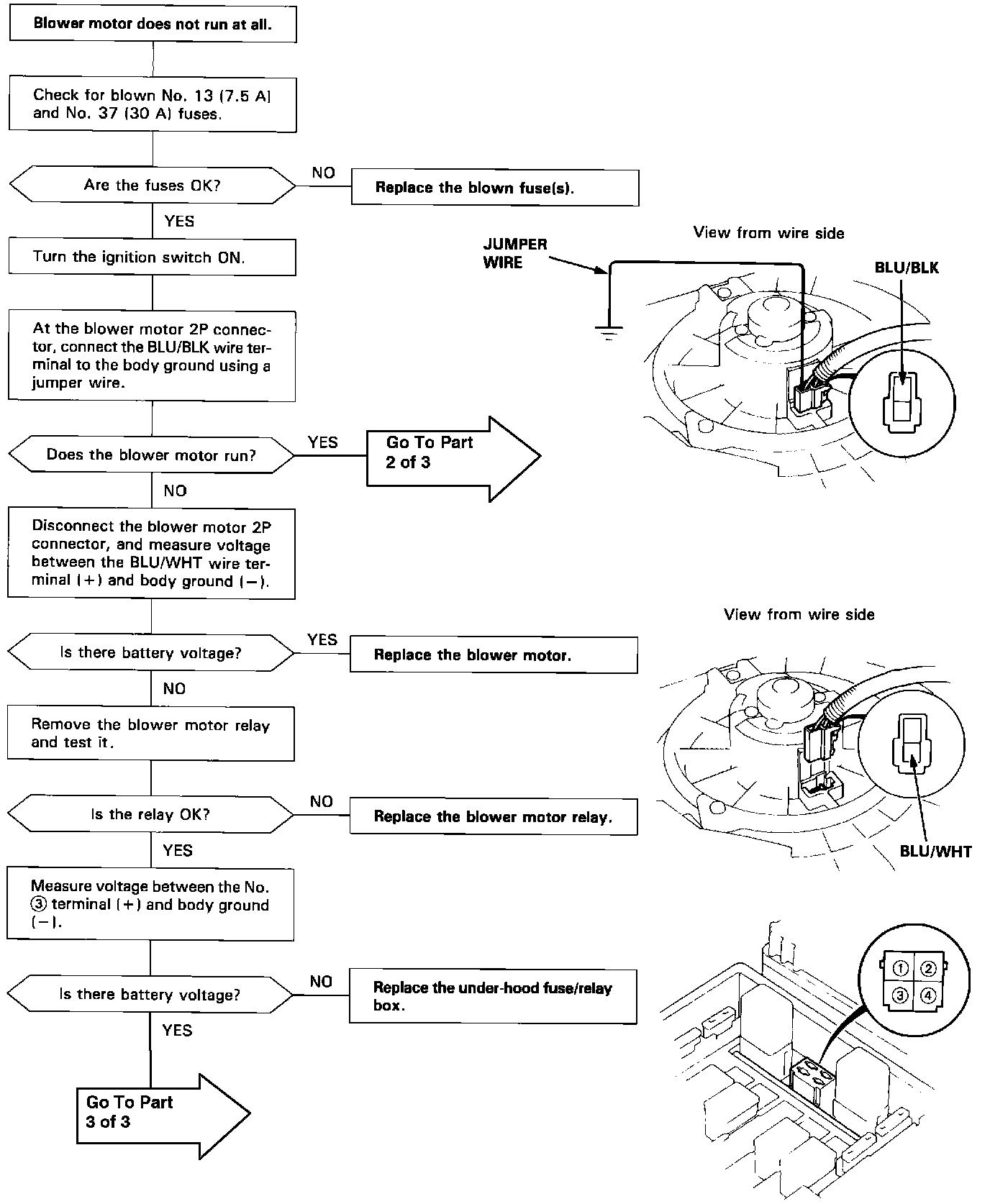

Blower Motor Diagnostic Chart (Part 1 Of 3):
