Honda
>>
1993
>>
Del Sol L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Schematic and Routing
Schematic and Routing

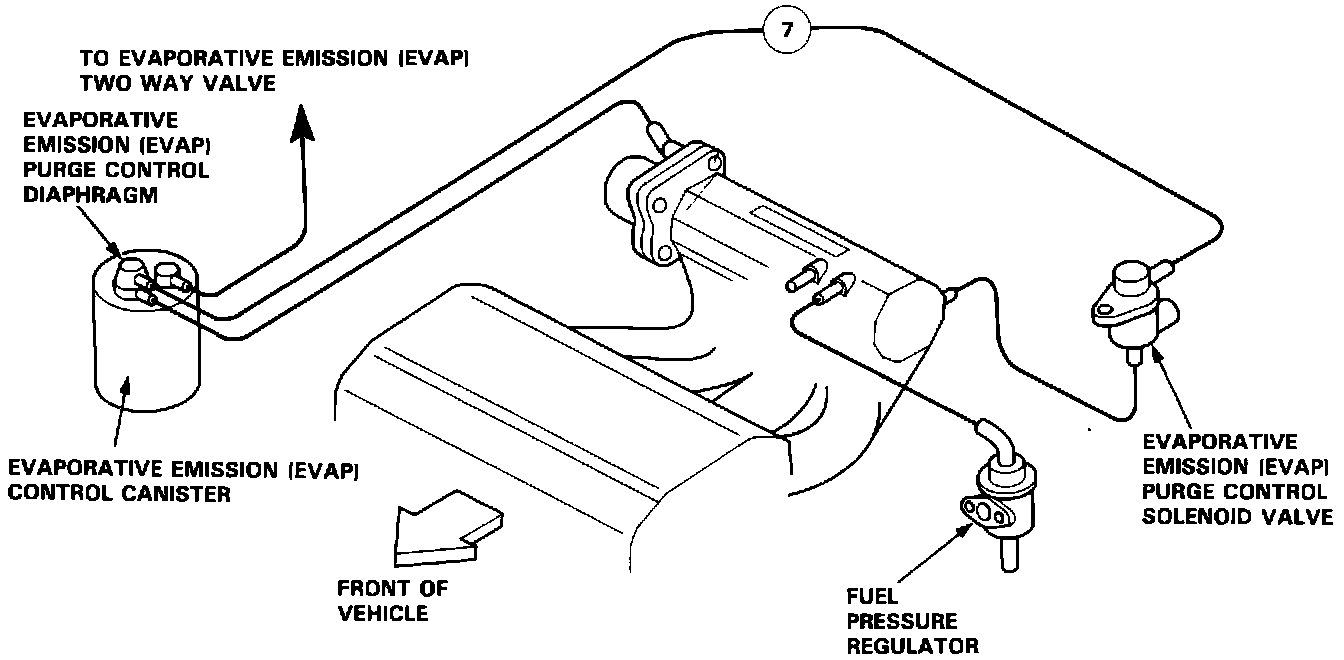

Engine Vacuum Hose Connections:
Engine Vacuum Hose Routing.

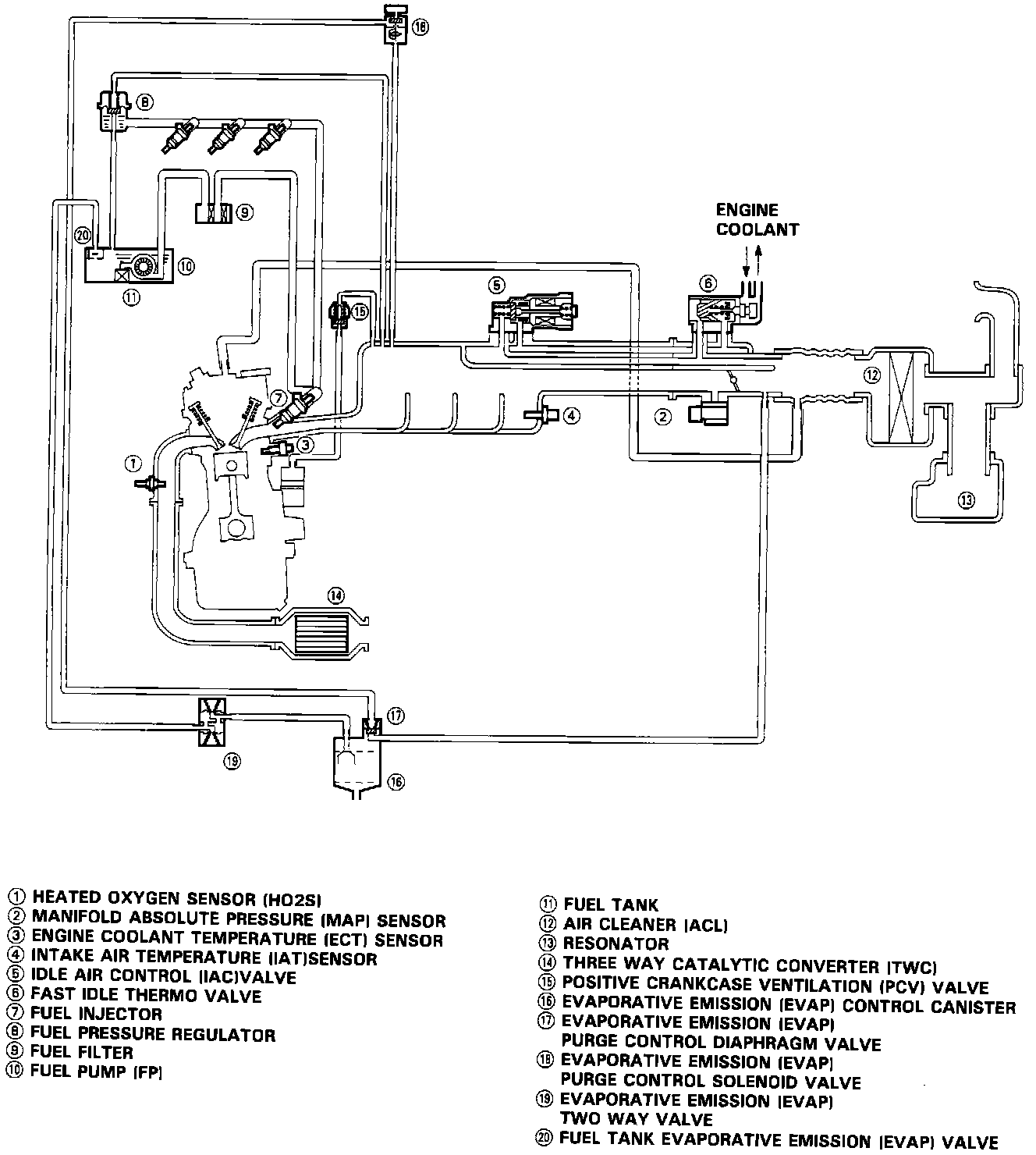

Schematic View Vacuum Hose Connections:
Complete Vacuum Hose Schematic.
