Main
>>
Right Side of Engine Compartment Branch
Right Side of Engine Compartment Branch

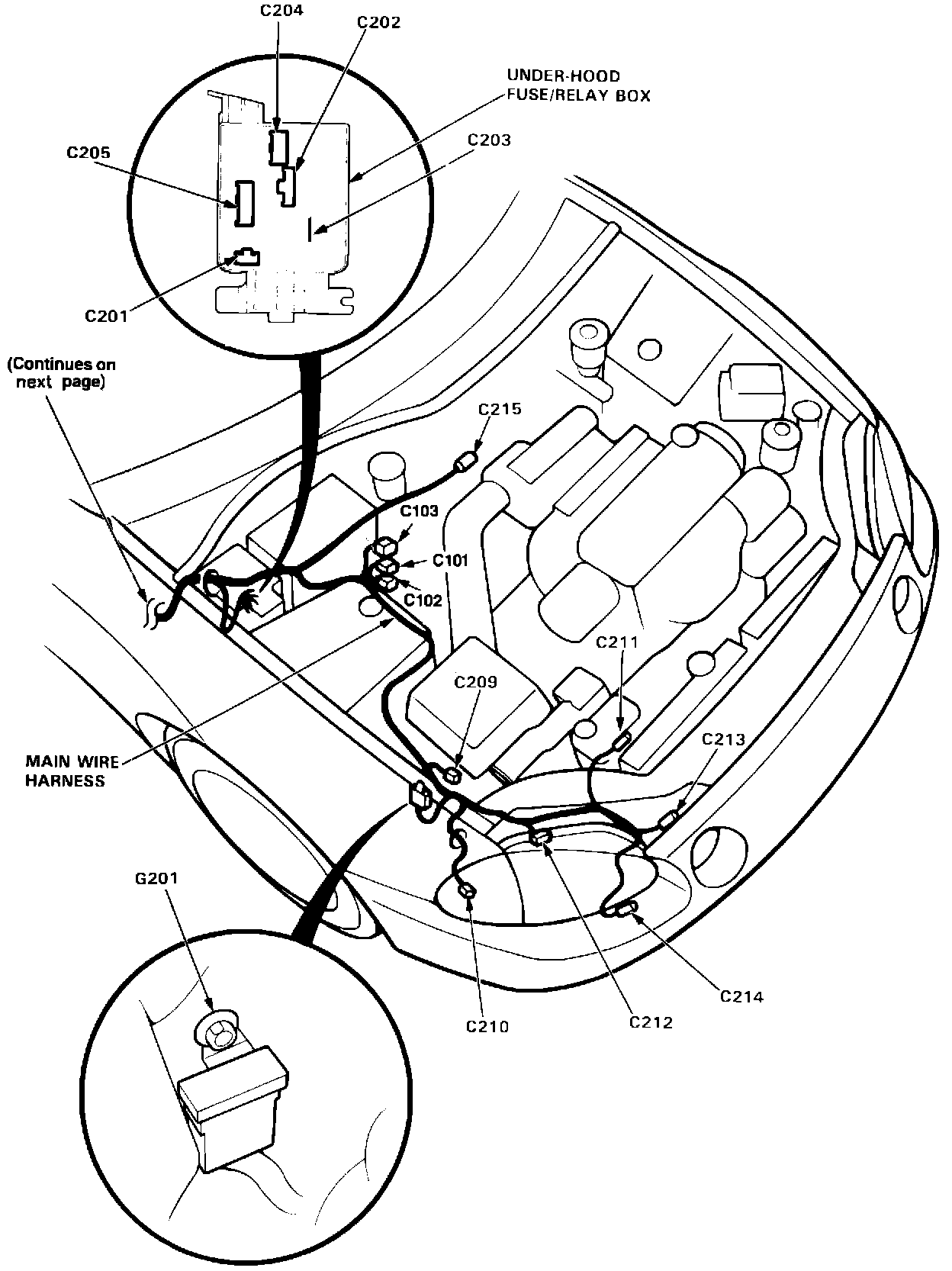

Connector Locations And Wire Harness Routing: Main Wire Haness (Right Side Of Engine Compartment Branch):
