Left Side of Dash and Floor Branch
Left Side of Dash and Floor Branch

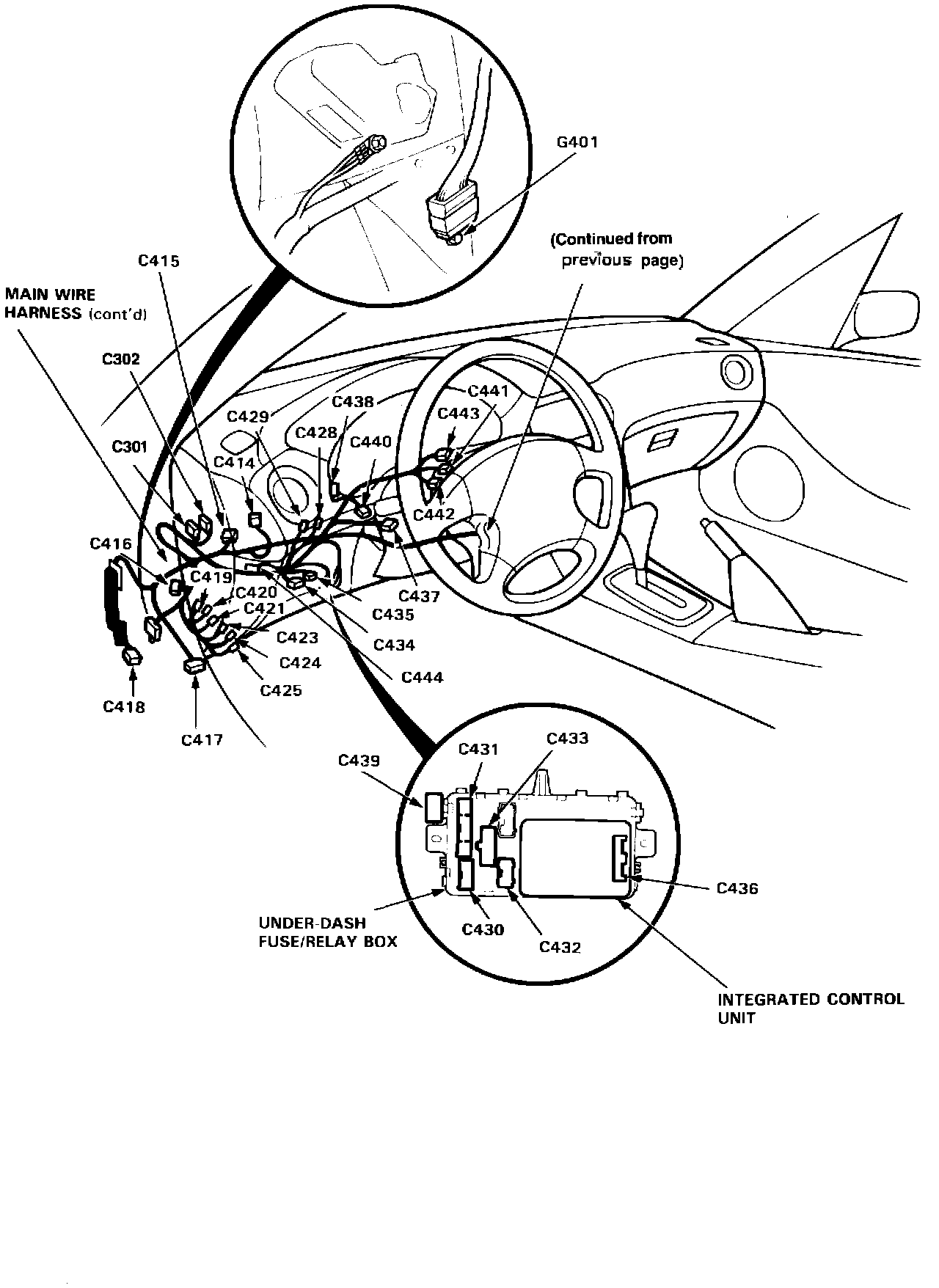

Connector Locations And Wire Harness Routing: Main Wire Harness (left Side Of Dash Branch):
