Battery, Engine Ground, and A/C Wire Harness
Battery, Engine Ground, and A/C Wire Harness

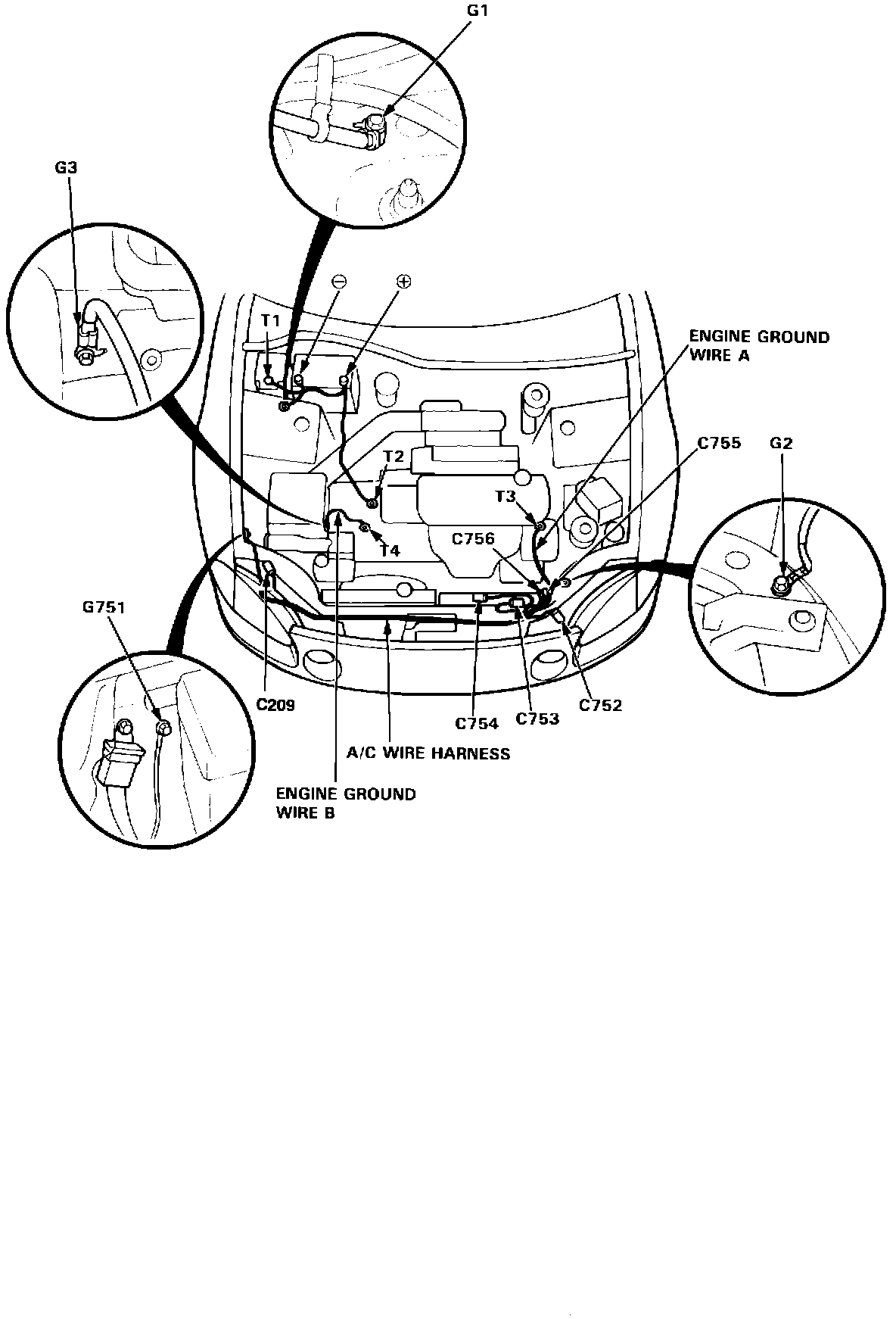

Connector Locations And Wire Harness Routing: Battery, Engine Ground And A/C Wire Harness:
