Starting System (With Security System)

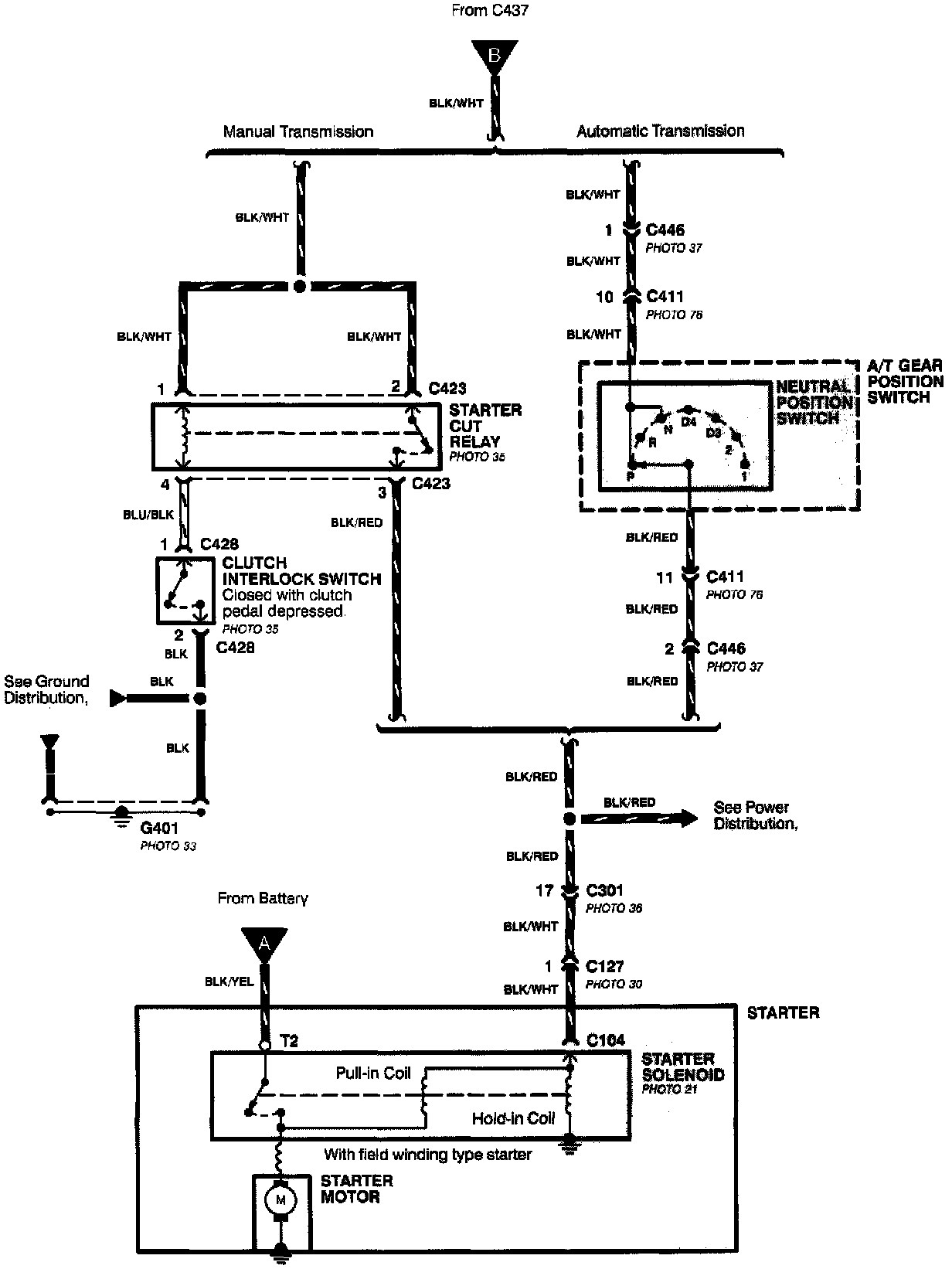

Starting System:



Starting System:

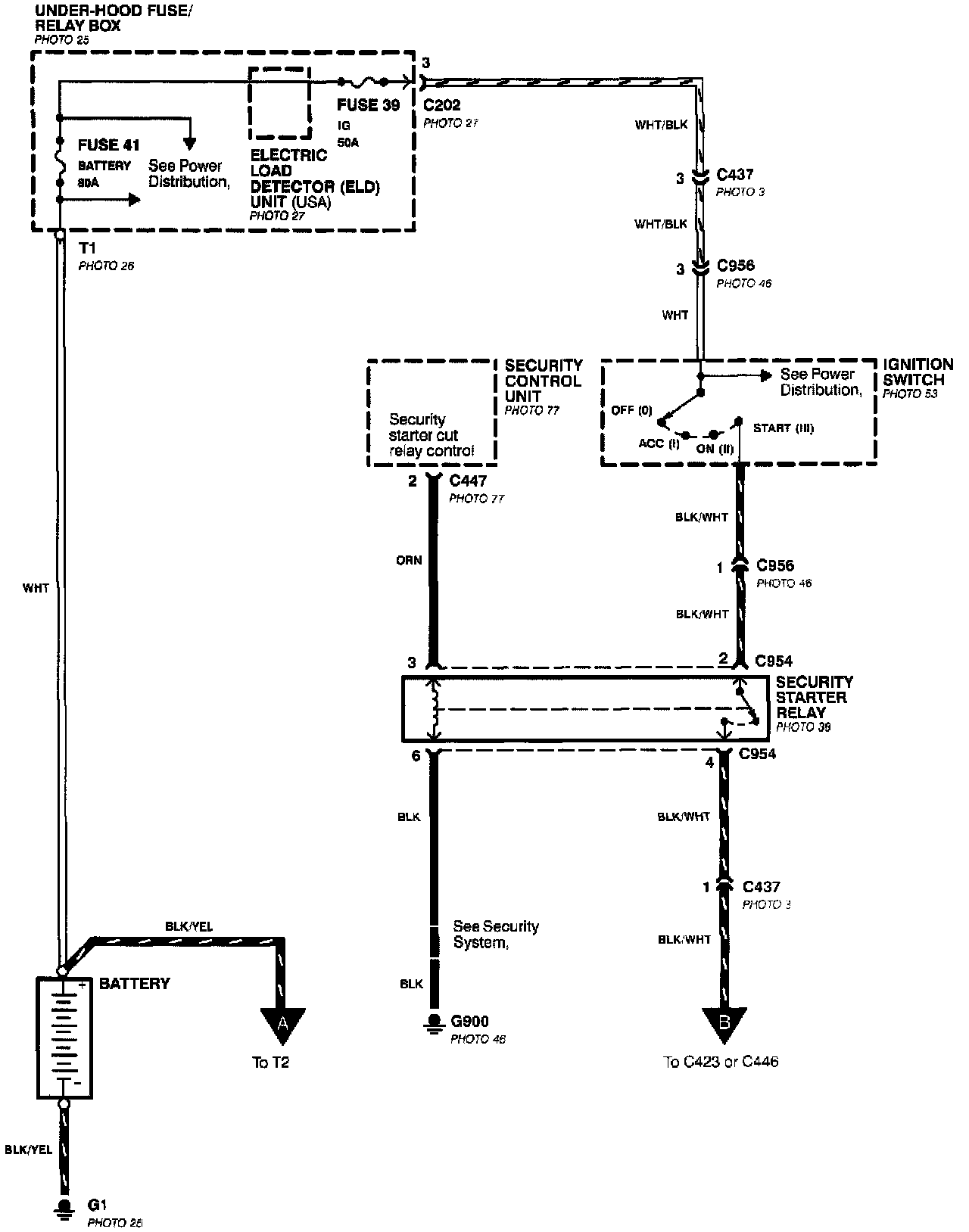

Starting System: With Security System:

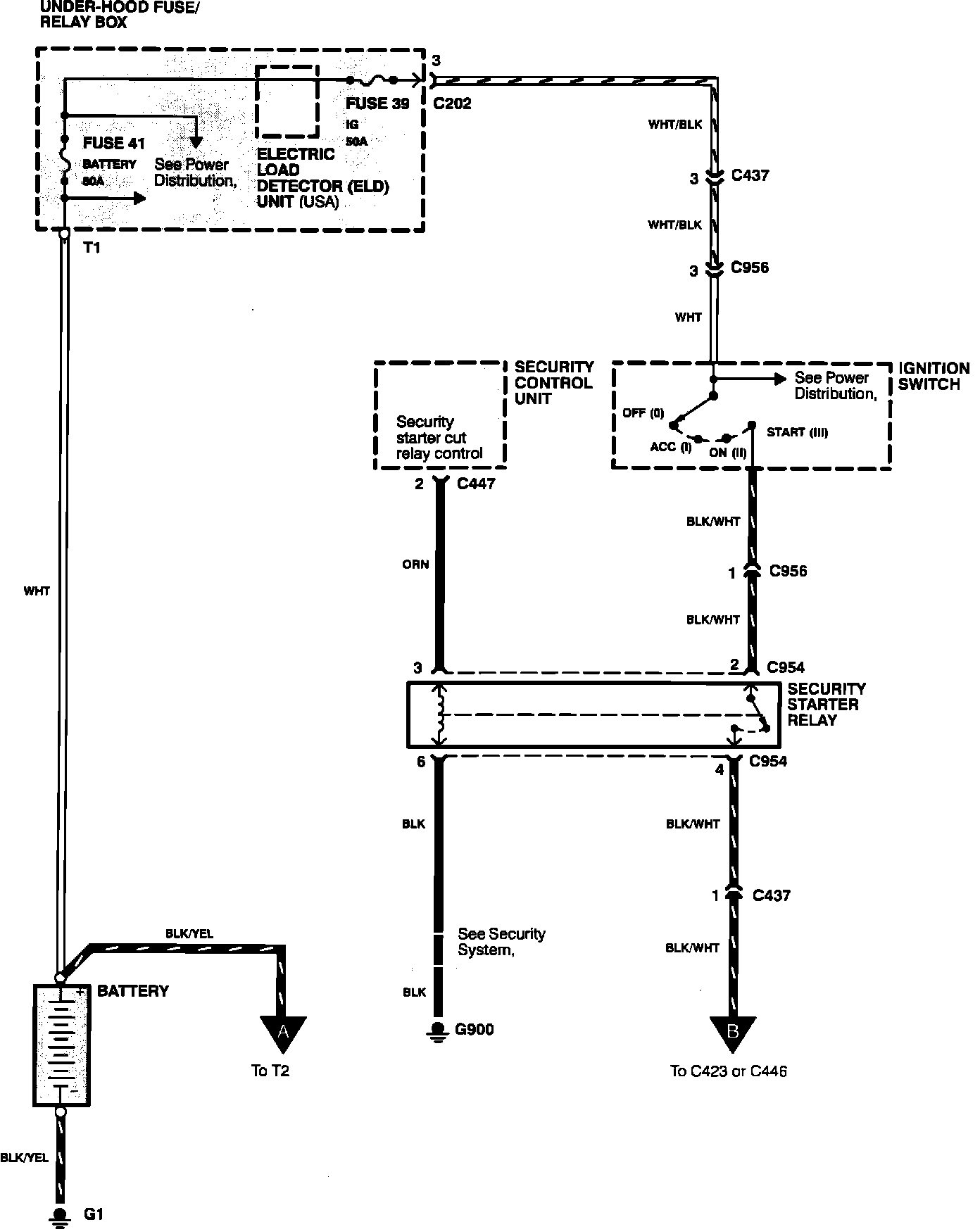

Starting System: With Security System:
