Home >> Honda >> 1993 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Engine Compartment Left Side

Engine Compartment Left Side

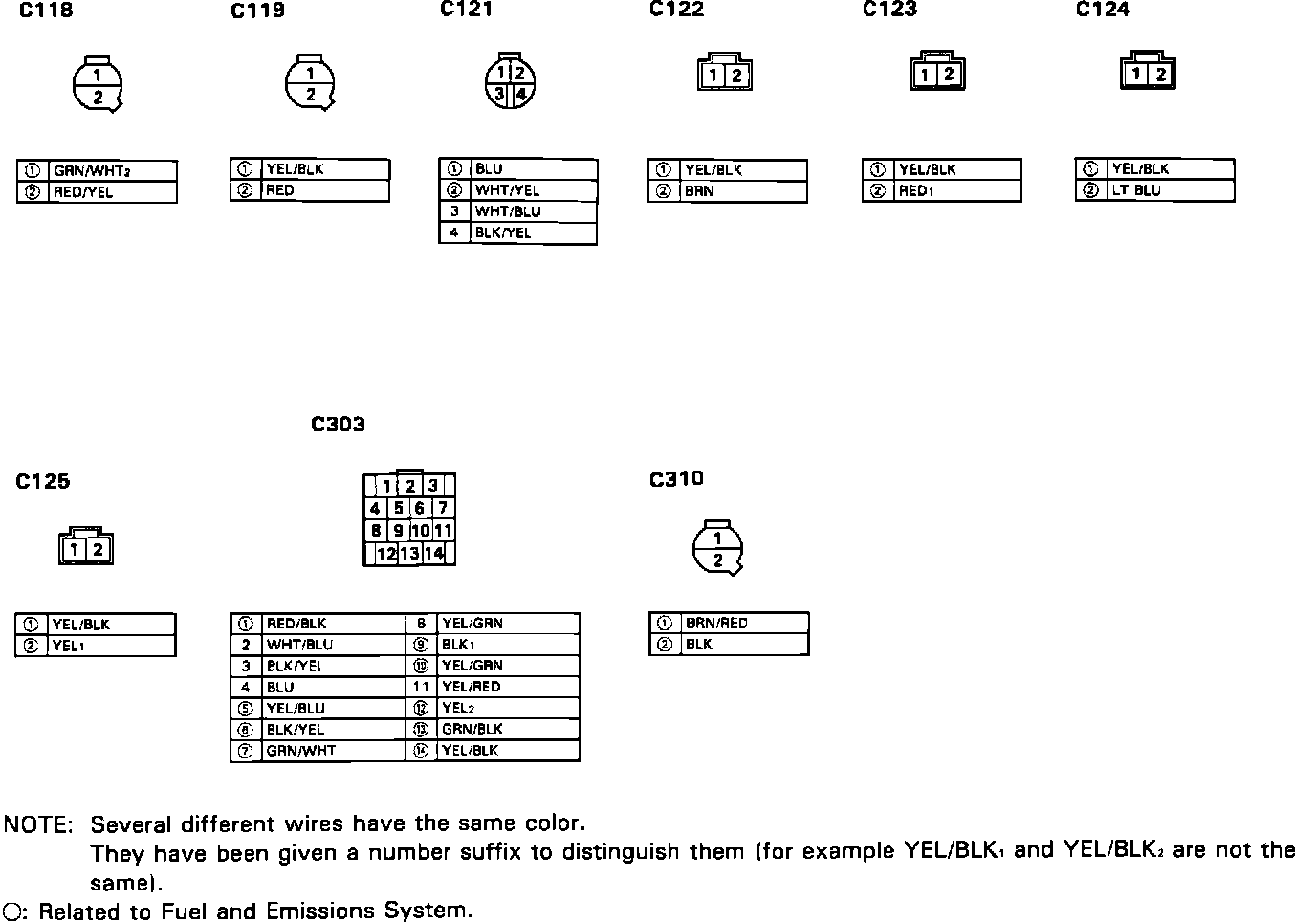

Wire Connector Identification And Wire Location:
