Symptom Related Diagnostic Procedures

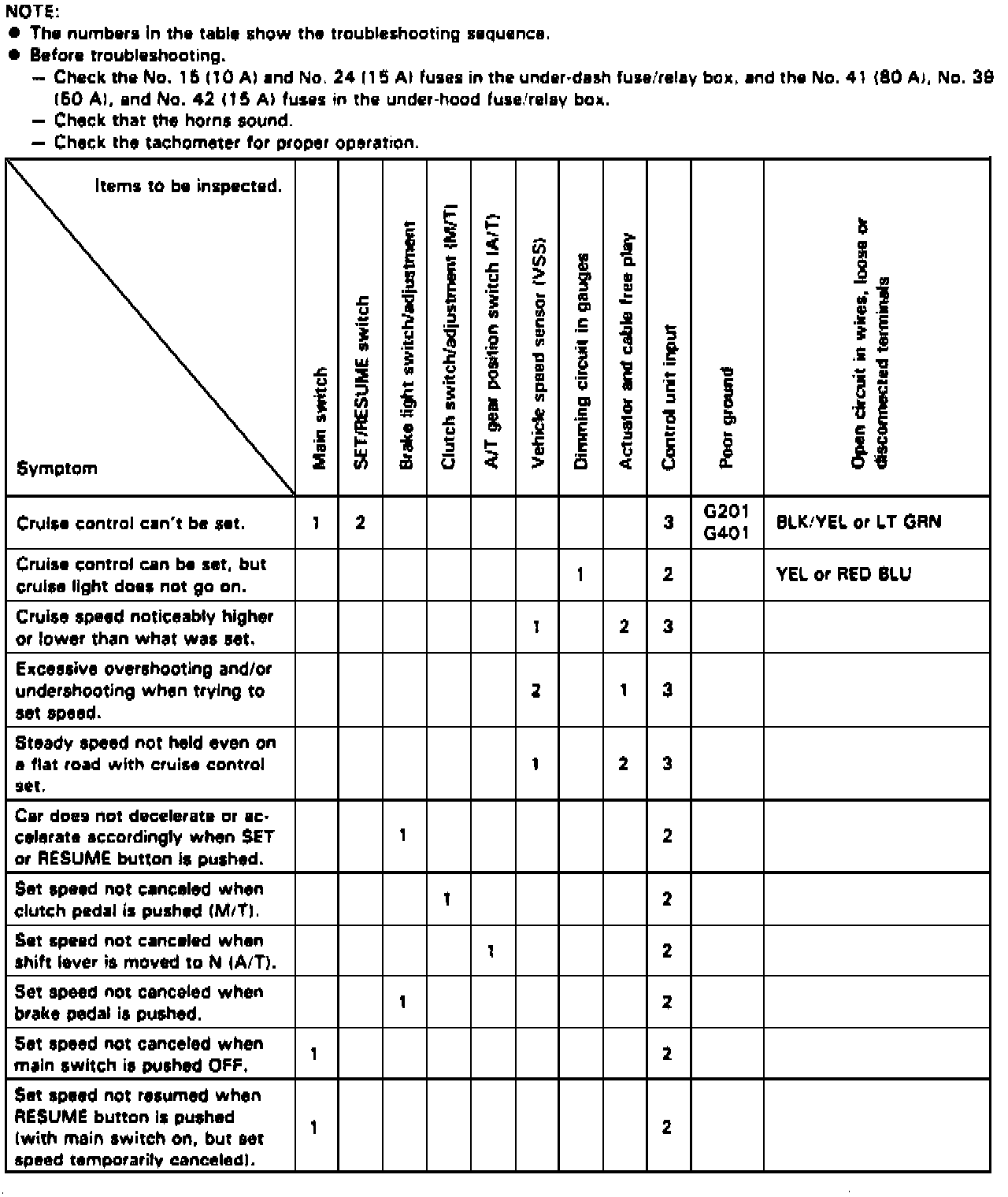

Fig. 5 - Speed Control Troubleshooting Chart:

Prior to troubleshooting the speed control system, check No. 15 (10A), No. 24 (15A) and No 12 (15A) fuses in the fuse box and the No. 41 (80A), No. 39 (50A) and the No. 42 (20A) fuses in the relay box. If fuses are operating, ensure horn sounds properly. then refer to Fig. 5 for troubleshooting sequence.
