Civic L4-1493cc 1.5L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Horn Switch
>>
Testing and Inspection
>>
Without SRS
Without SRS
1.
Remove the steering wheel, then turn it over.
2.

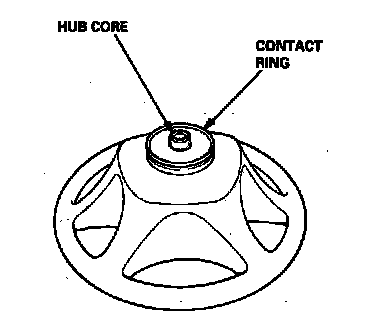

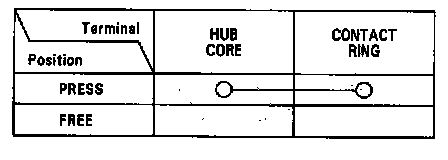

Check for continuity between the hub core and the contact ring.
3.
If OK, reinstall the steering wheel, then test the combination light switch.
