Wheel Speed Sensor: Service and Repair

FRONT

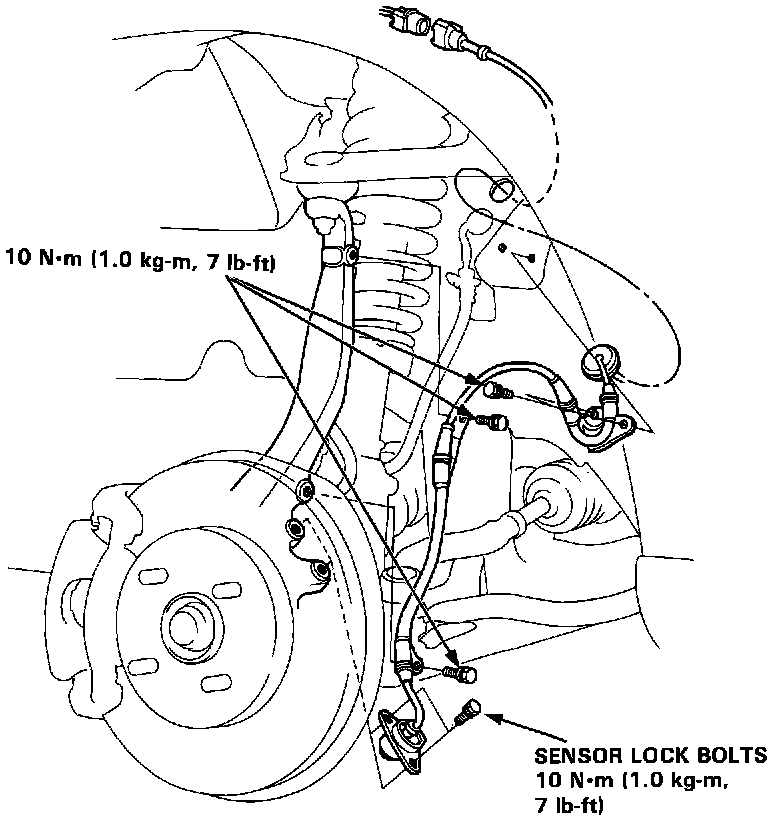

Front Wheel Sensor Replacement:

NOTE:
^ Be careful when installing the sensors to avoid twisting the wires.
^ After sensor replacement, confirm proper operation, refer to Brakes and Traction Control/Brakes/Antilock Brake System/Wheel Speed Sensor/Testing and Inspection/Procedures.

REAR

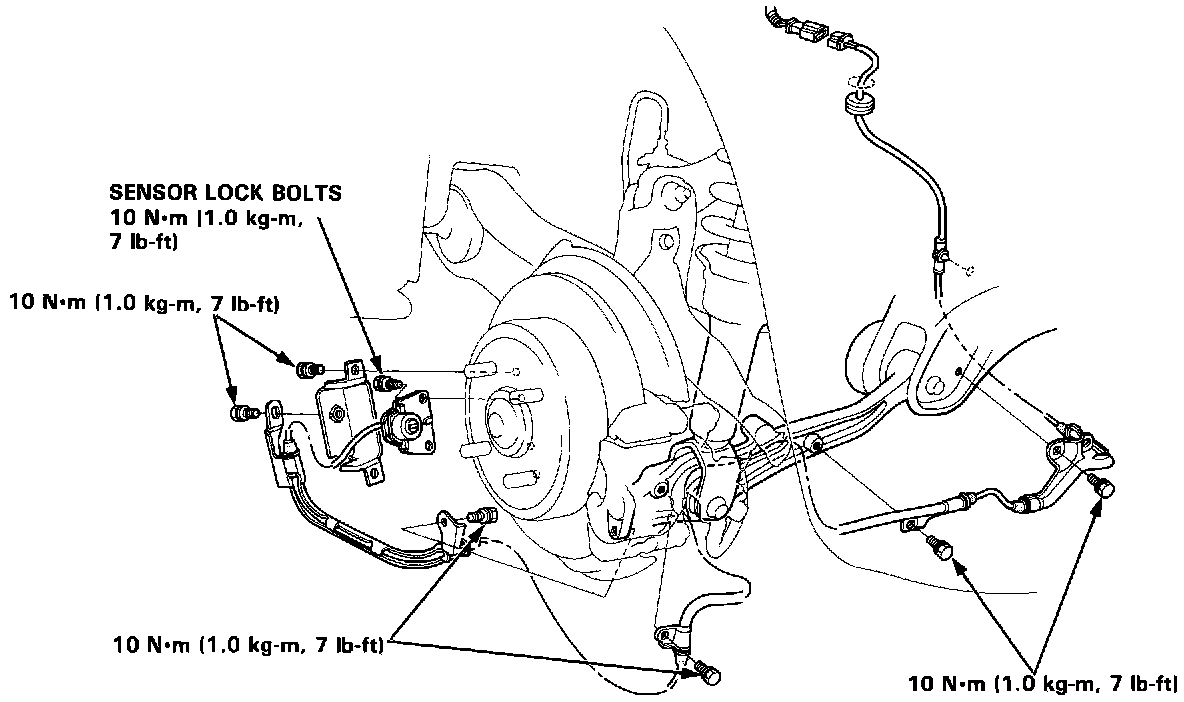

Rear Wheel Sensor Replacement:

NOTE:
^ Be careful when installing the sensors to avoid twisting the wires.
^ After sensor replacement, confirm proper operation, refer to Testing and Inspection / Procedures / Anti-Lock Brakes / Component Testing / Wheel Sensor Signal Confirmation.
