Home >> Honda >> 1993 >> Civic L4-1493cc 1.5L SOHC (VTEC) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Locations

Electronic Brake Control Module: Locations

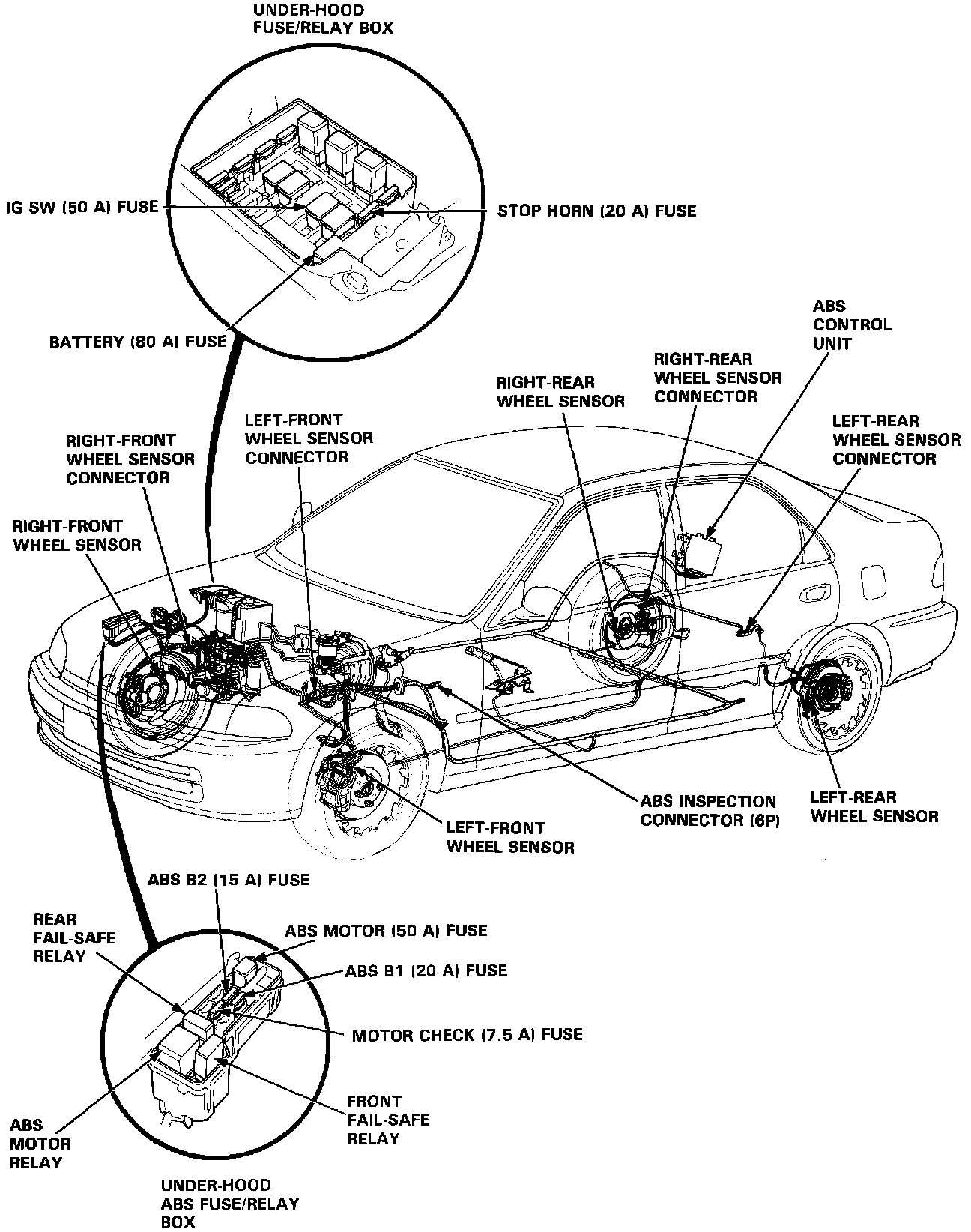

ABS System Component Locations:

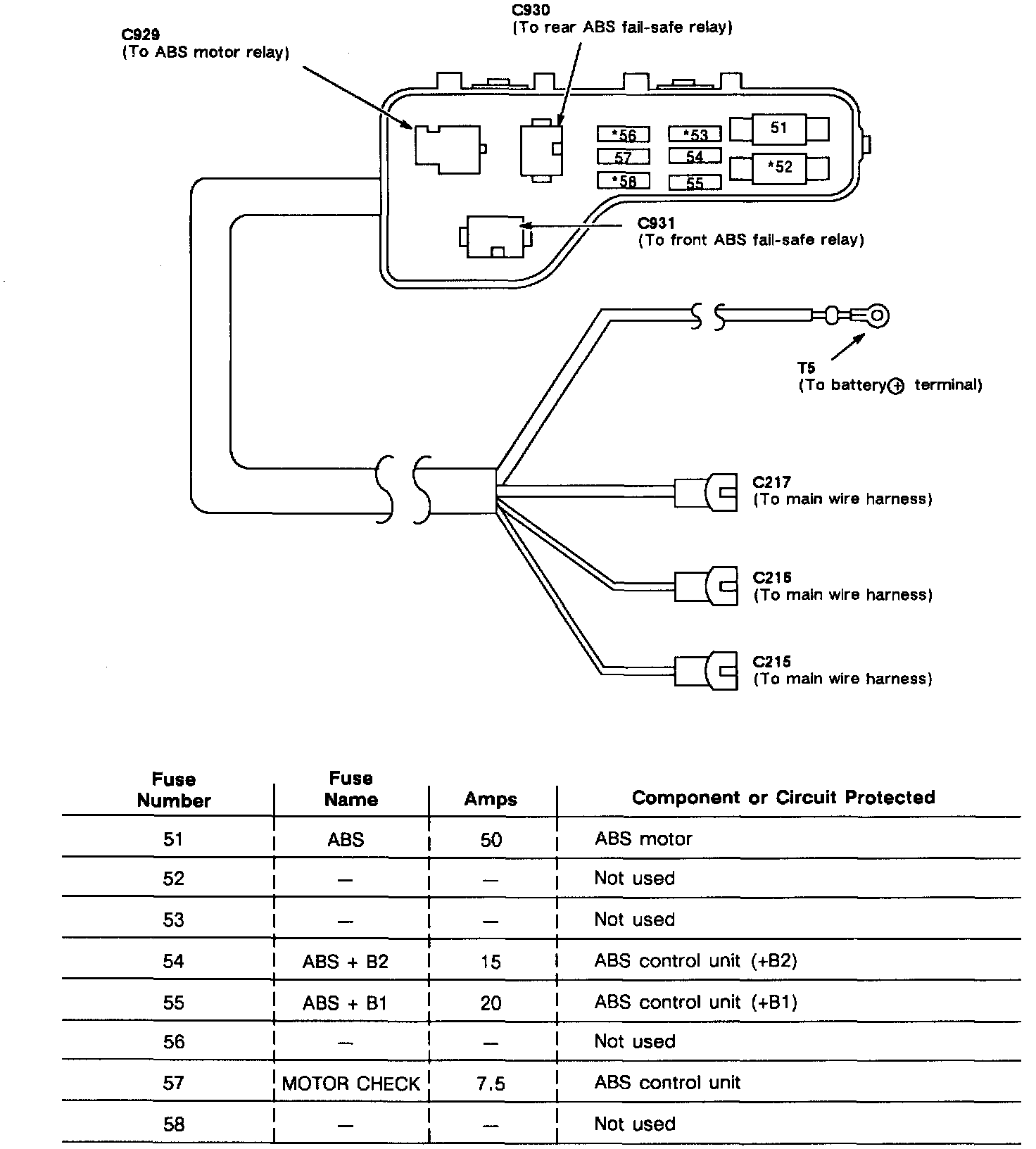

Under-hood ABS Fuse/Relay Box:
