Engine - Vacuum Hose Routing Label Correction

Bulletin No.
92-046

Issue Date
NOV 18, 1992

Model
1993 CIVIC VX

Applicable To
See VEHICLES AFFECTED

File Under
ENGINE

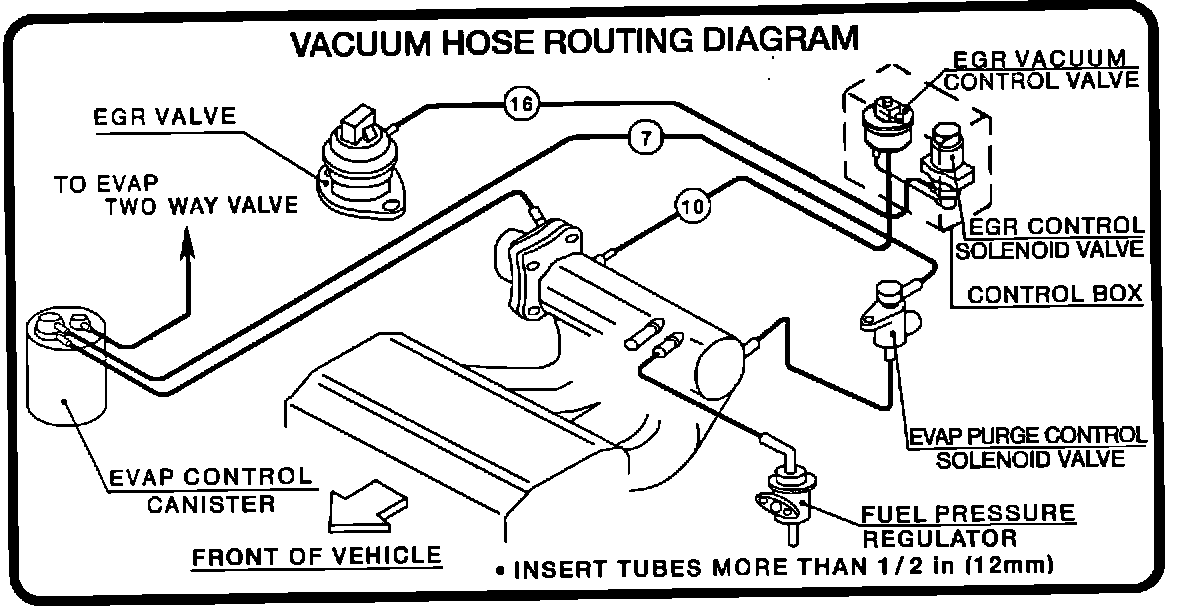

Vacuum Hose Routing Label

PROBLEM

Some 1993 Civic VX 3-doors received an incorrect vacuum hose routing label.

VEHICLES AFFECTED

1993 Civic VX 3-door:

From VIN 2HGEH237_PH500254 through 2HGEH237_PH508475

CORRECTIVE ACTION








Cover the incorrect underhood label with the new label supplied with this service bulletin.

Use a clean, dry cloth to remove any dirt from the existing underhood label, then apply the new label on top of it. Do not attempt to remove the existing label.

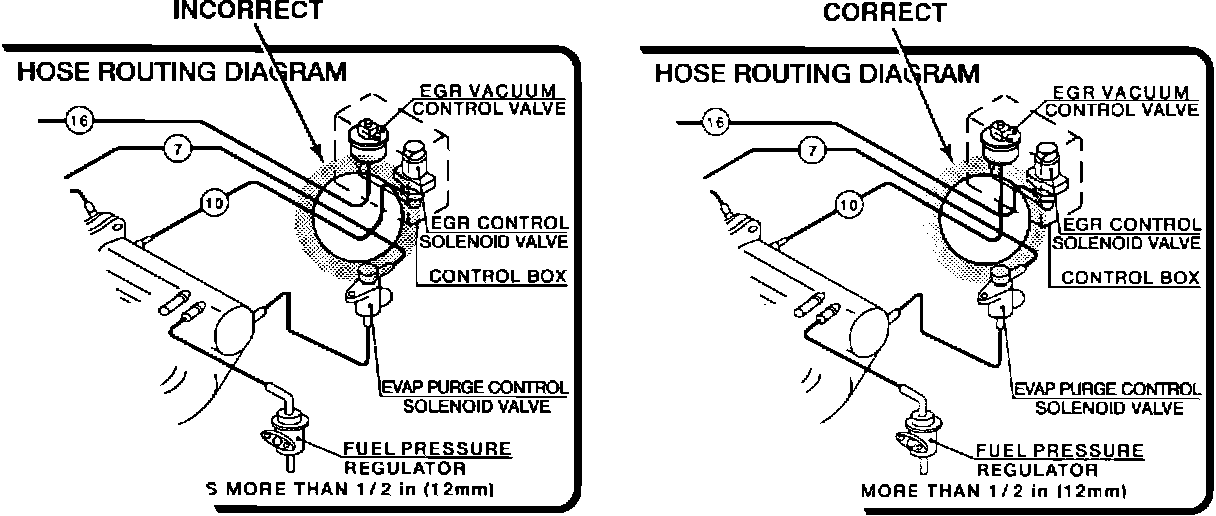

The correct label shows hose # 10 connected to the EGR vacuum control valve and hose # 16 connected to the EGR control solenoid valve.

WARRANTY CLAIM INFORMATION

Operation number: 823065

Flat rate time: 0.2 hour

Failed part: P/N 17277-P31-A01
H/C 4095519

Defect code: 650

Contention code: J63
