Home >> Honda >> 1993 >> Civic L4-1493cc 1.5L SOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Idle Control System >> Clutch Switch Signal

Clutch Switch Signal

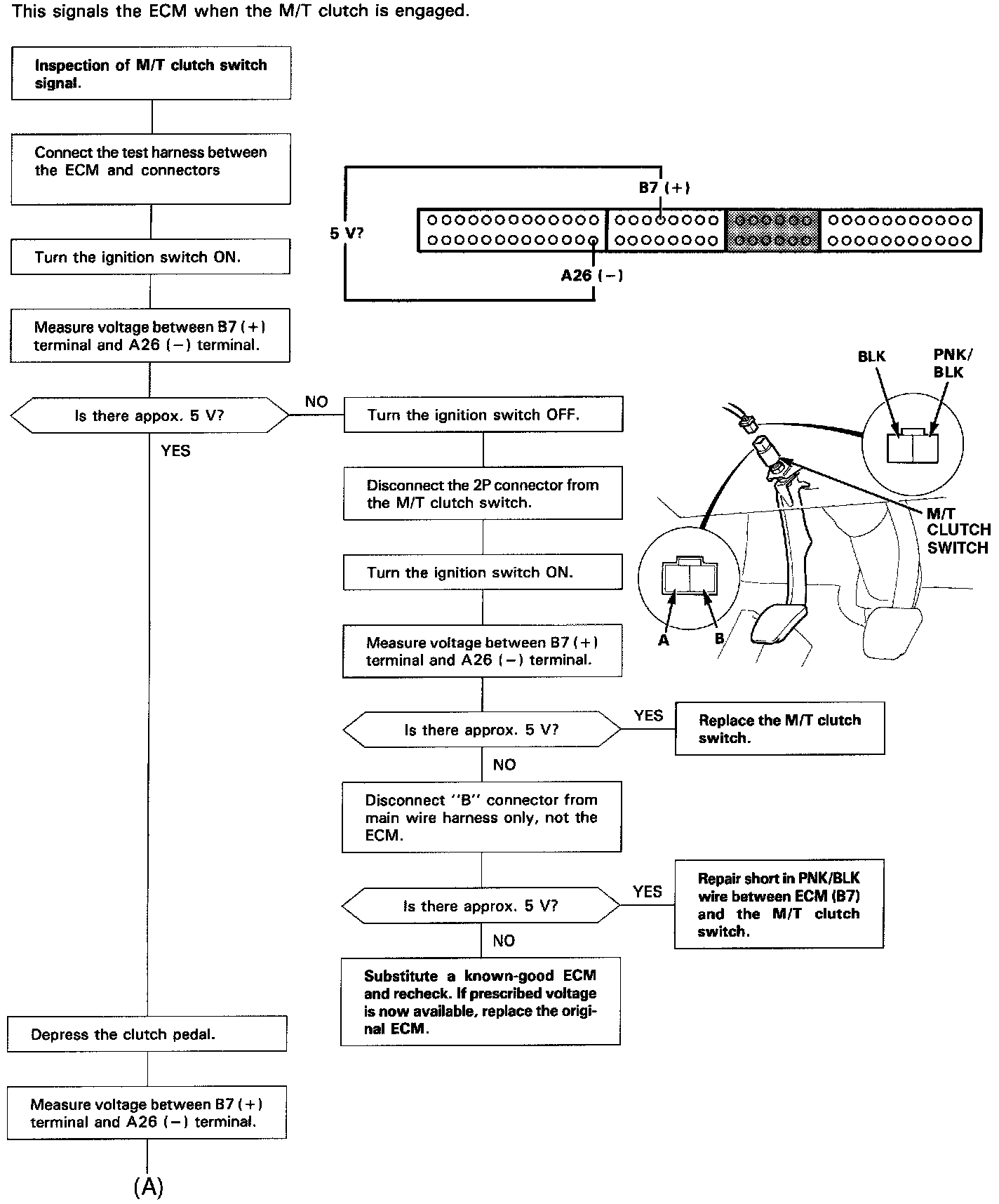

M/T Clutch Switch Signal (Part 1 Of 2):

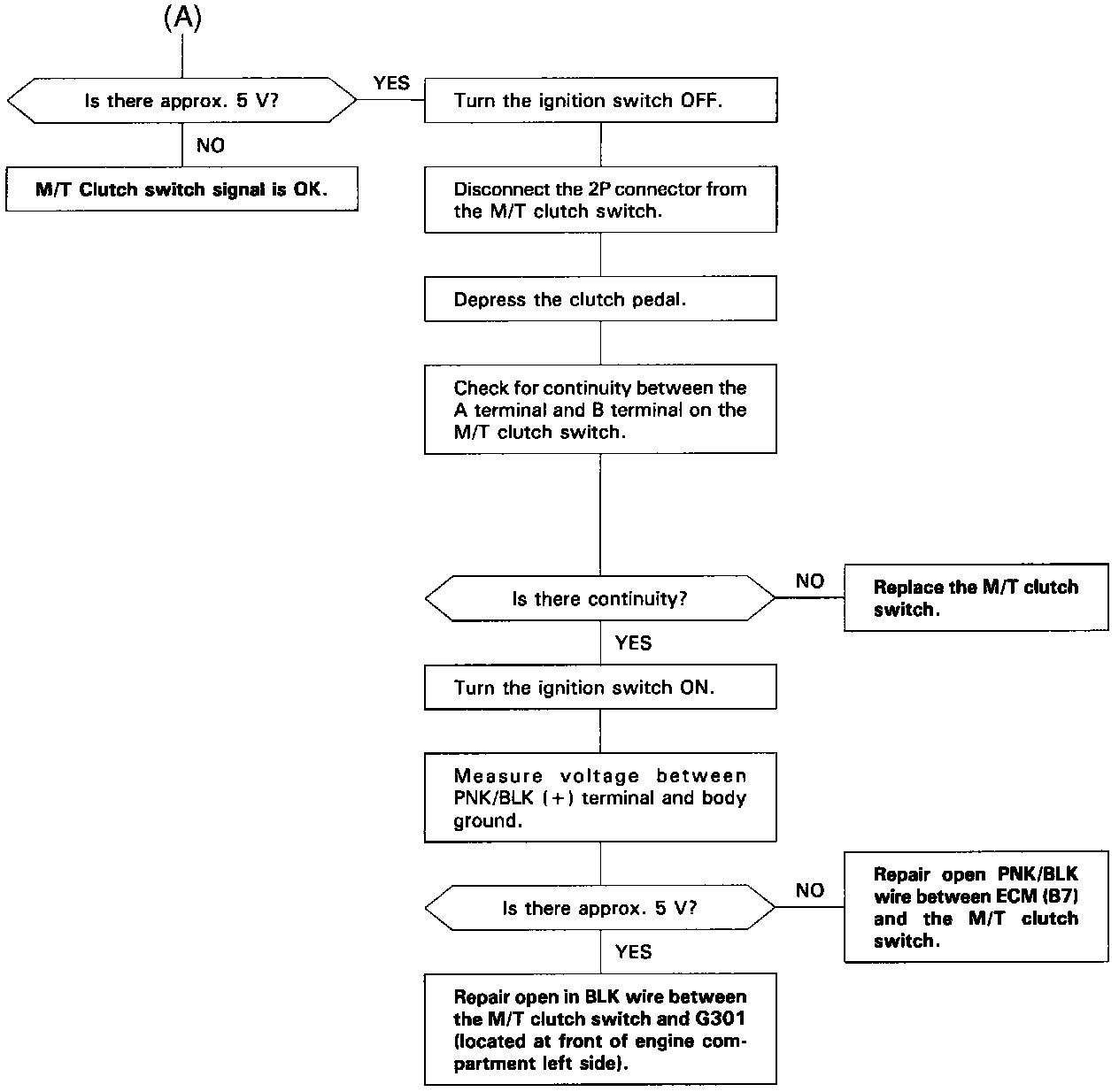

M/T Clutch Switch Signal (Part 2 Of 2):





CLUTCH SWITCH SIGNAL TEST
