VX Model Only

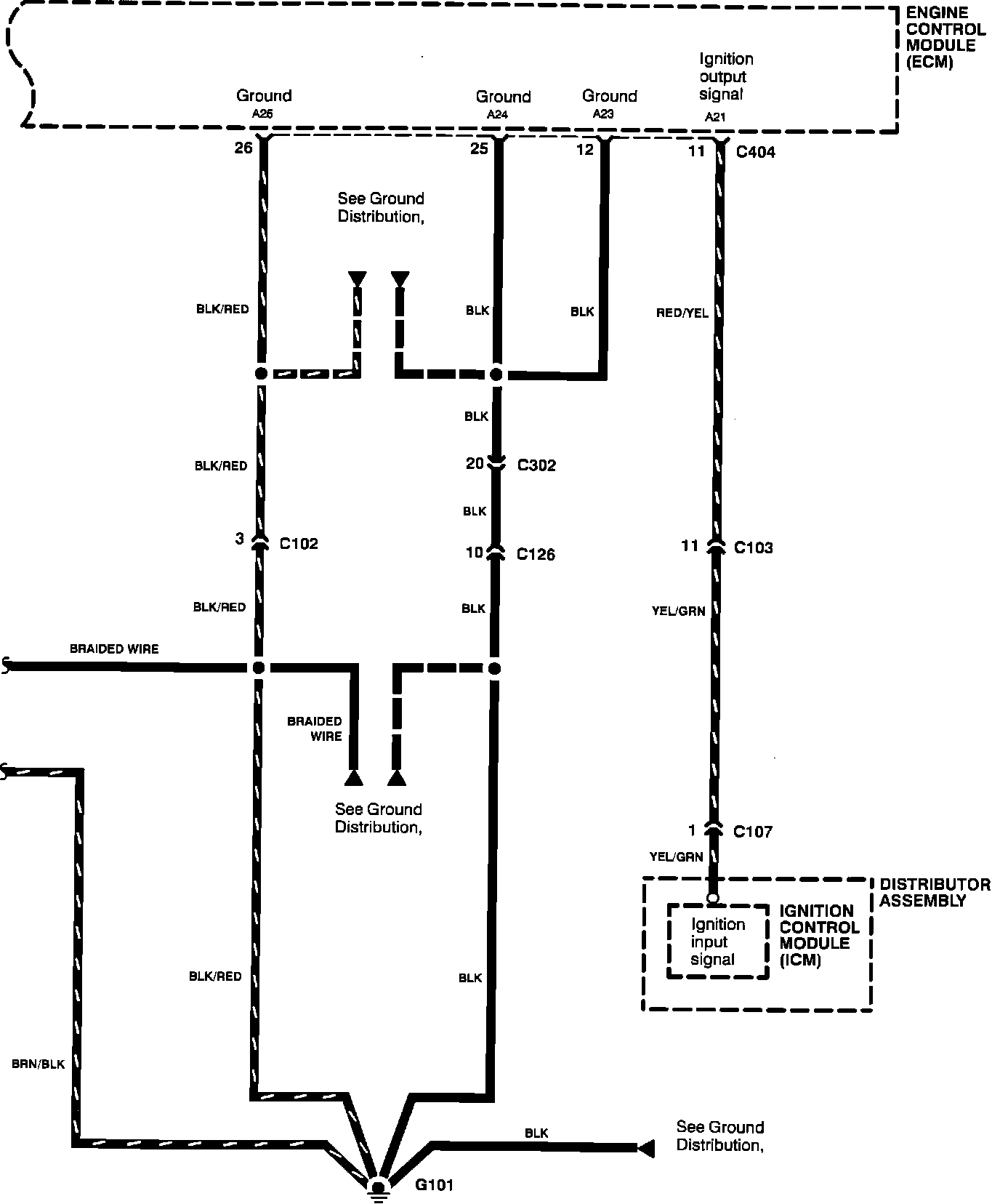

Programmed Fuel Injection System - VX Model:

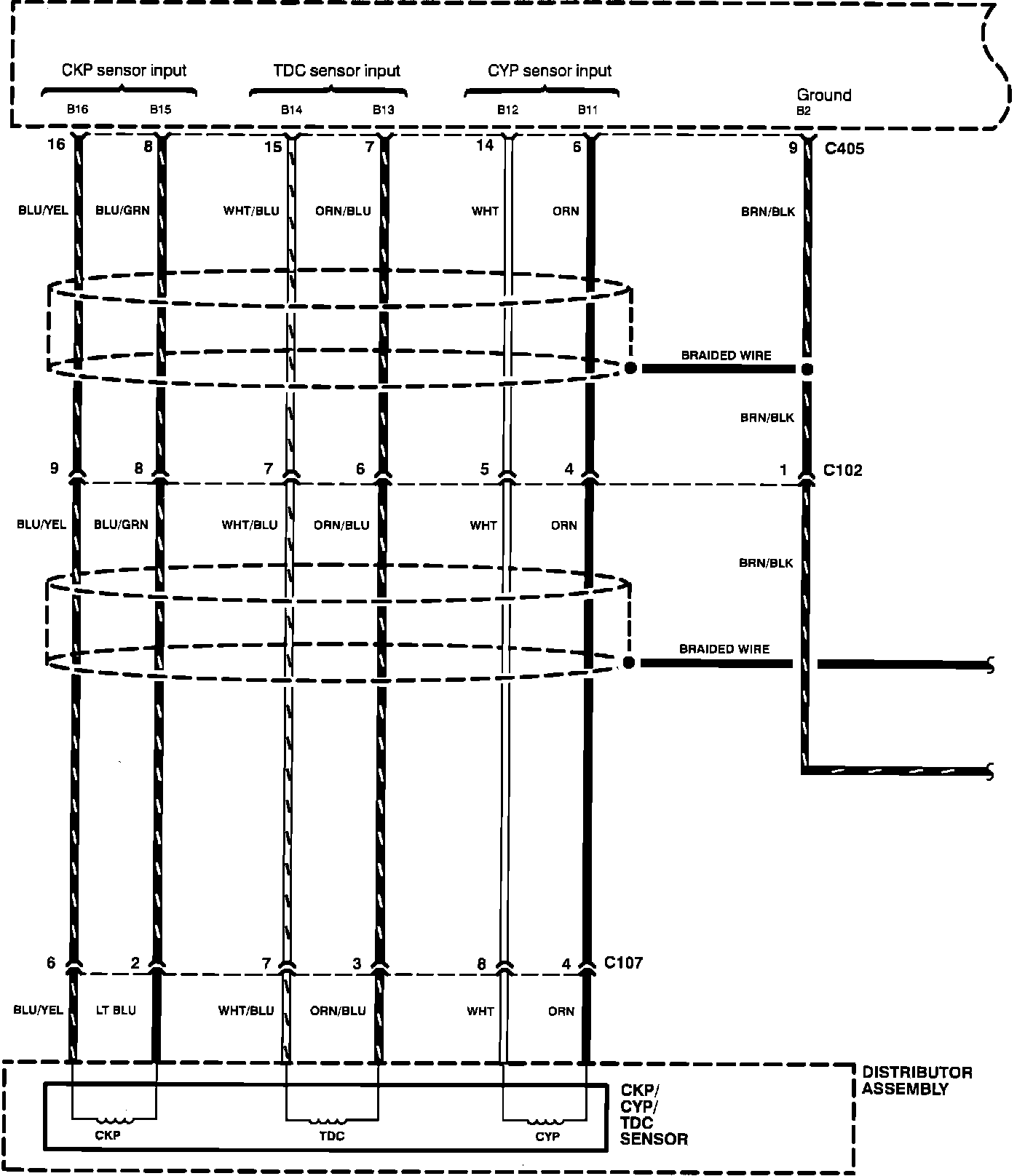

Programmed Fuel Injection System - VX Model:
