Home >> Honda >> 1993 >> Civic L4-1493cc 1.5L SOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Camshaft Position Sensor >> Diagrams >> Electrical Diagrams >> Exc. VX Model

Exc. VX Model

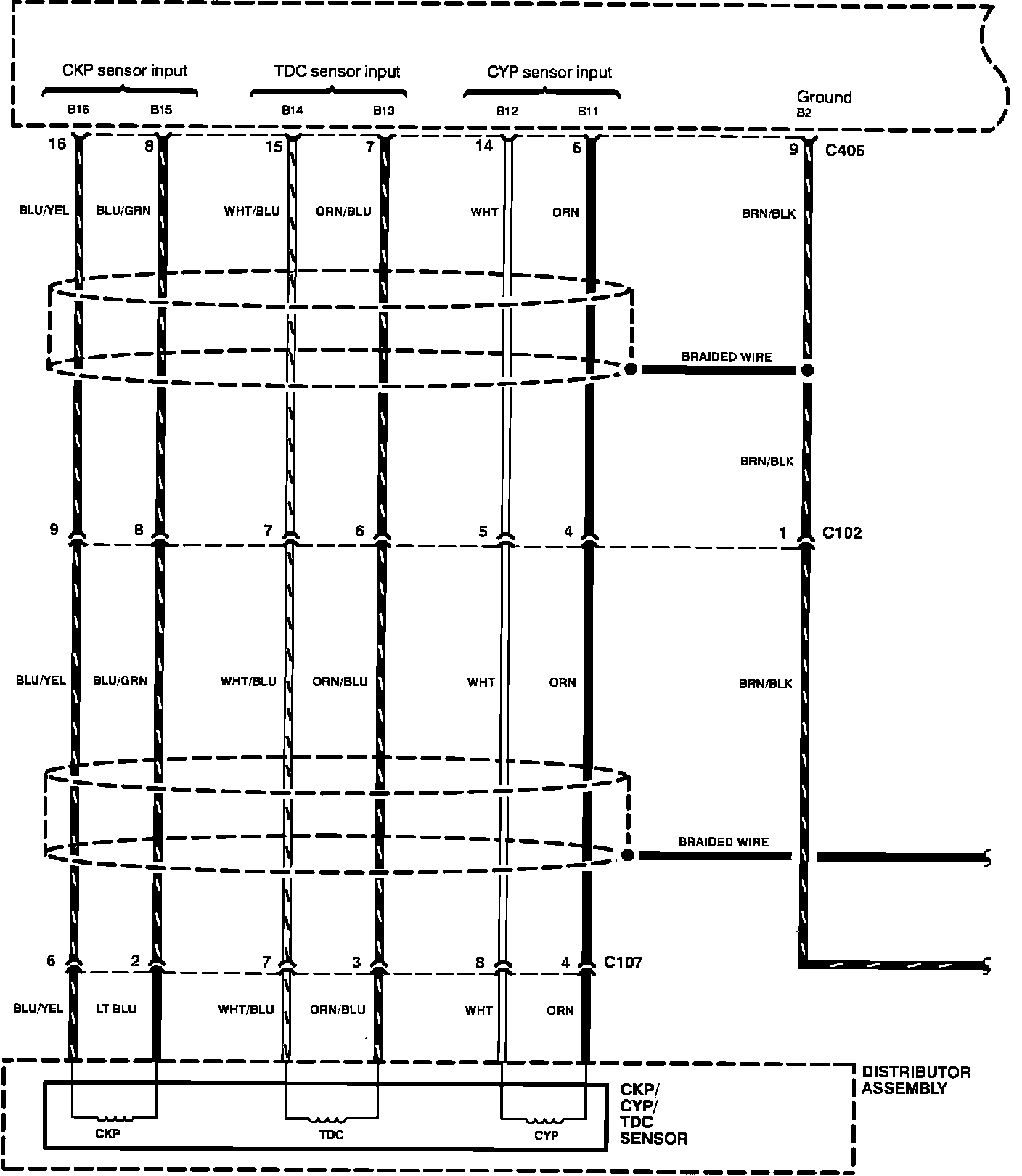

Programmed Fuel Injection System - All Except VX:

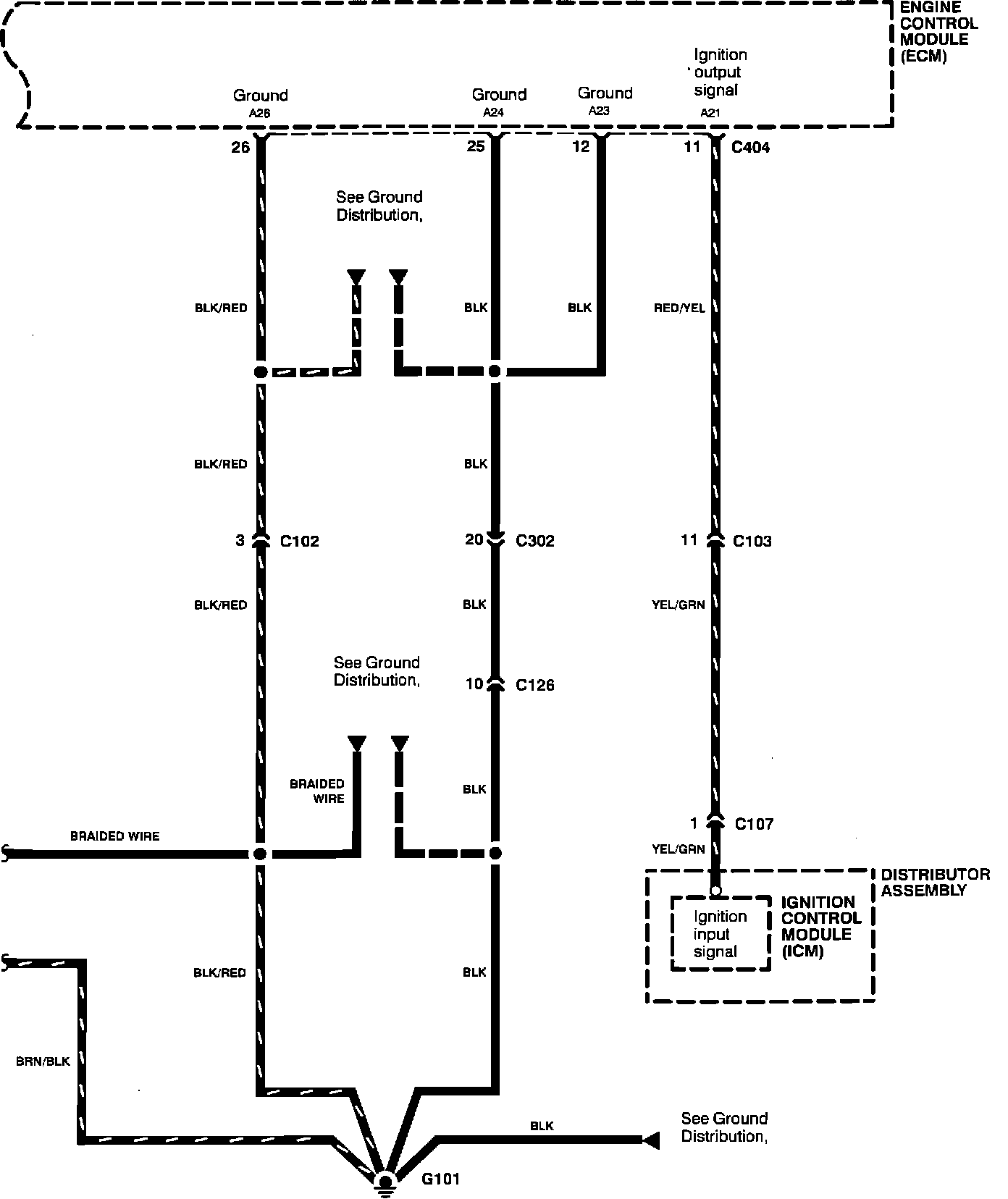

Programmed Fuel Injection System - All Except VX:
