VX Models

Programmed Fuel Injection System:

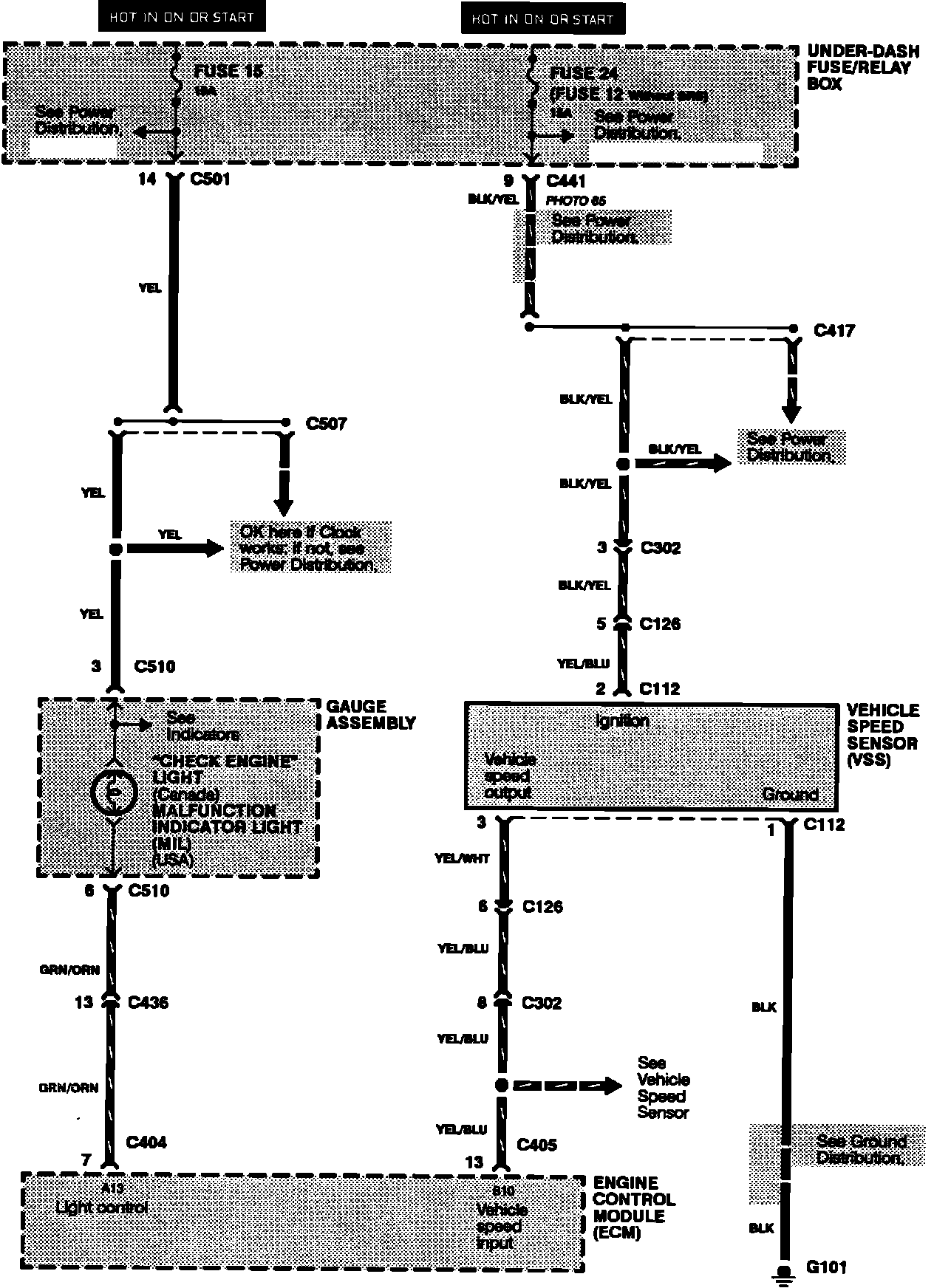

Engine Management (PGM-FI): Malfunction Indicator Light (MIL) And Vehicle Speed Sensors (VSS):
