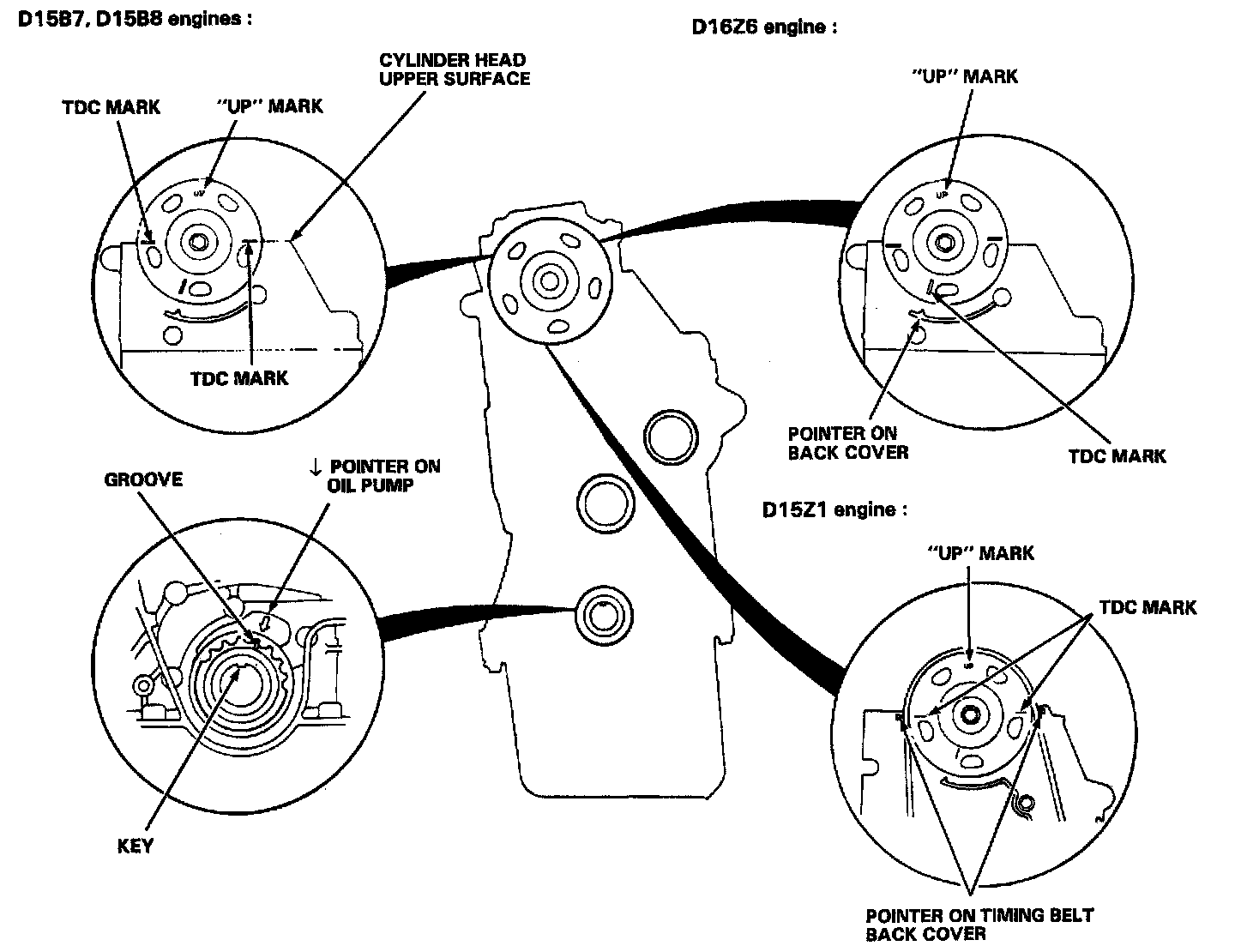

Timing Component Alignment Marks: Locations

Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

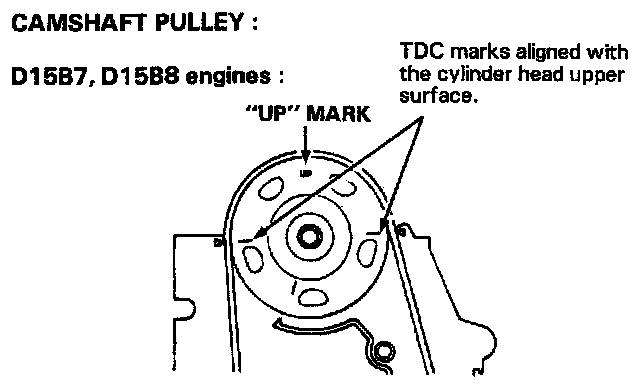

D15B7, D15B8 engines

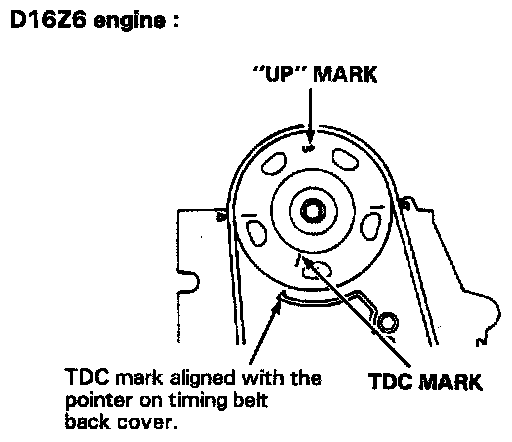

D16Z6 engine

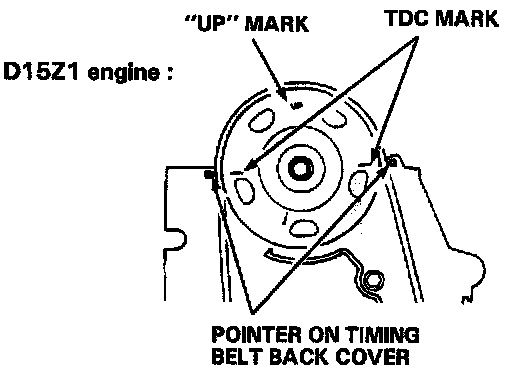

D15Z1 engine




For complete Timing Belt Removal and Installation information: Service and Repair
