Connecting Rod Bearing: Application and ID

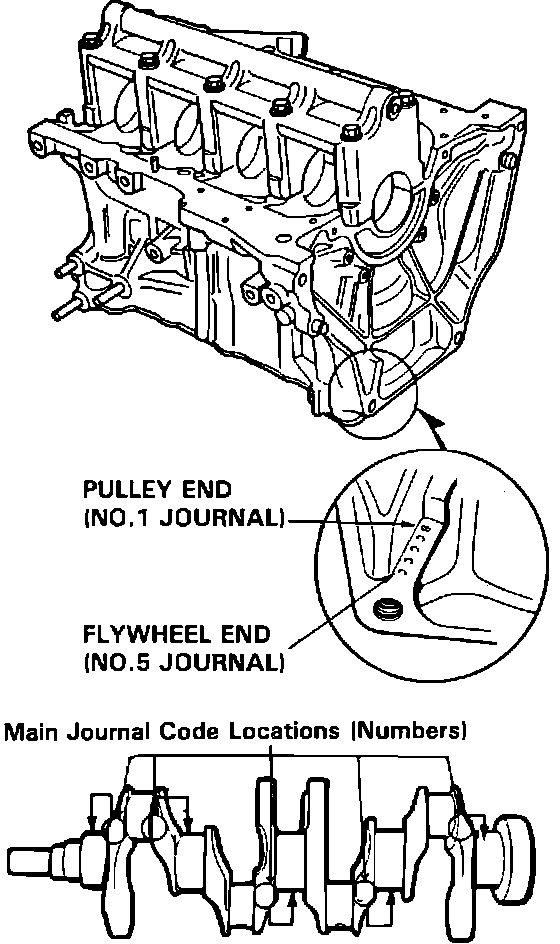

Crank Bore Code Location:

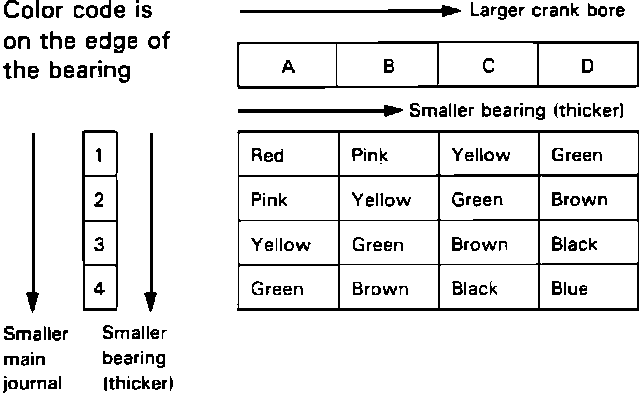

Crank Bearing Identification:

MAIN BEARING SELECTION
Different sizes of main bearings may be present in the same engine. To find the correct bearing size for each journal, use the provided chart to properly reference the code markings on block and crankshaft.

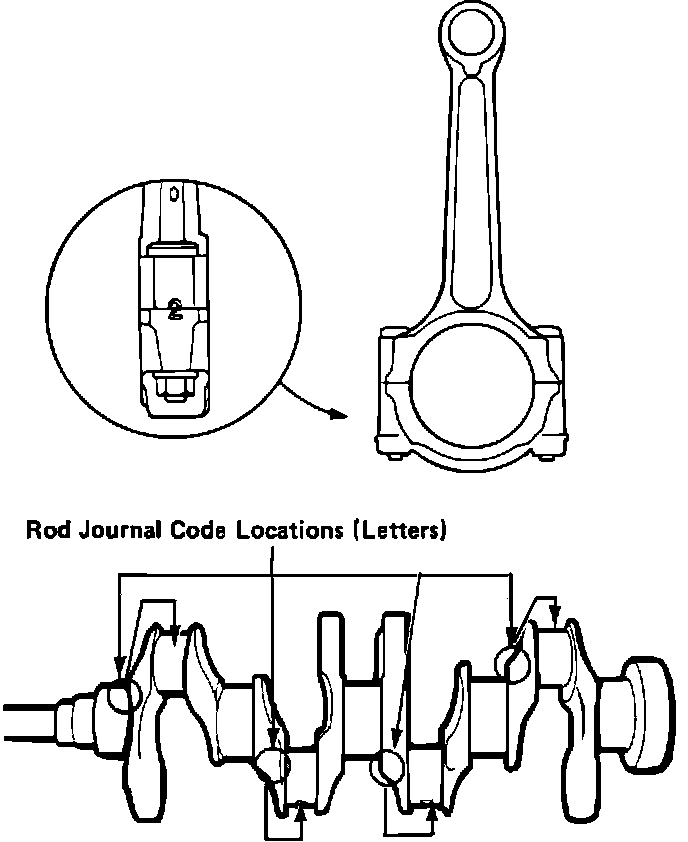

Rod Bearing Code Location:

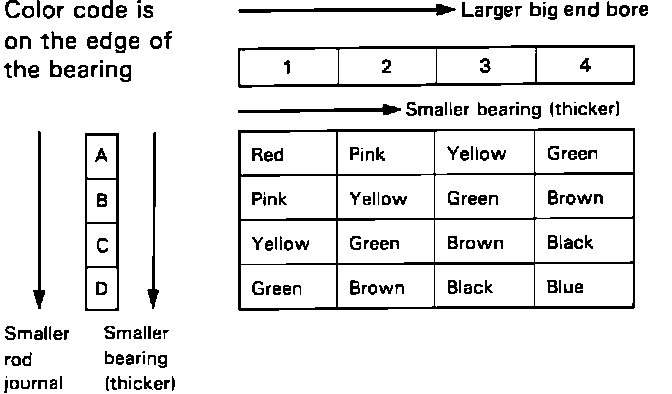

Rod Bearing Identification:

ROD BEARING SELECTION
Different sizes of rod bearings may be present in the same engine. To find the correct bearing size for each journal, use the provided chart to properly reference the code markings on connecting rod and crankshaft.
