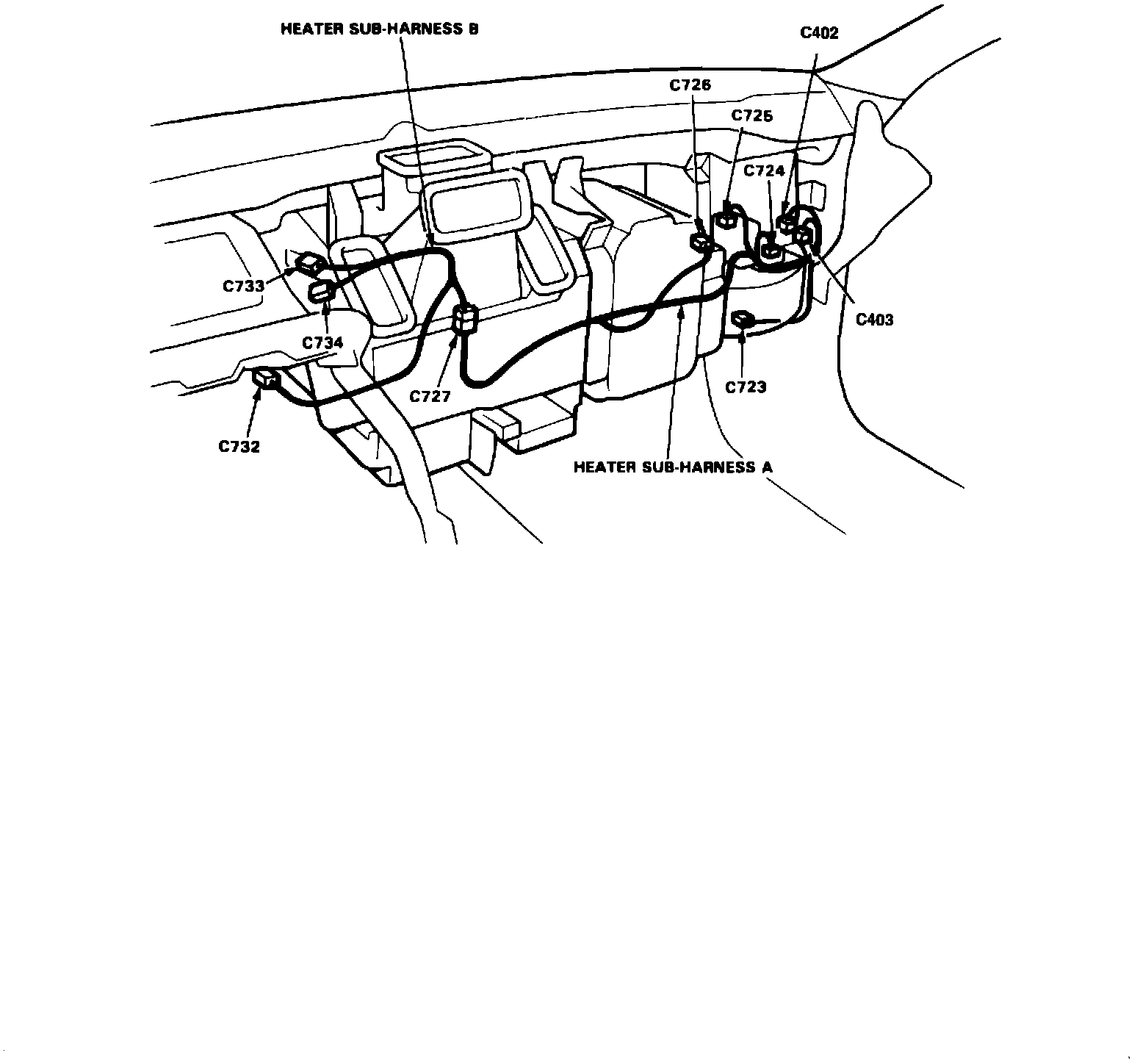

Heater and A/C Sub-Harnesses

Connector Locations And Wire Harness Routing: Heater And A/C Sub-harnesses:
