Home >> Honda >> 1993 >> Civic L4-1493cc 1.5L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Wiring Diagrams >> All Except VX >> Transmission Switches/Controls, and Upshift Indicator

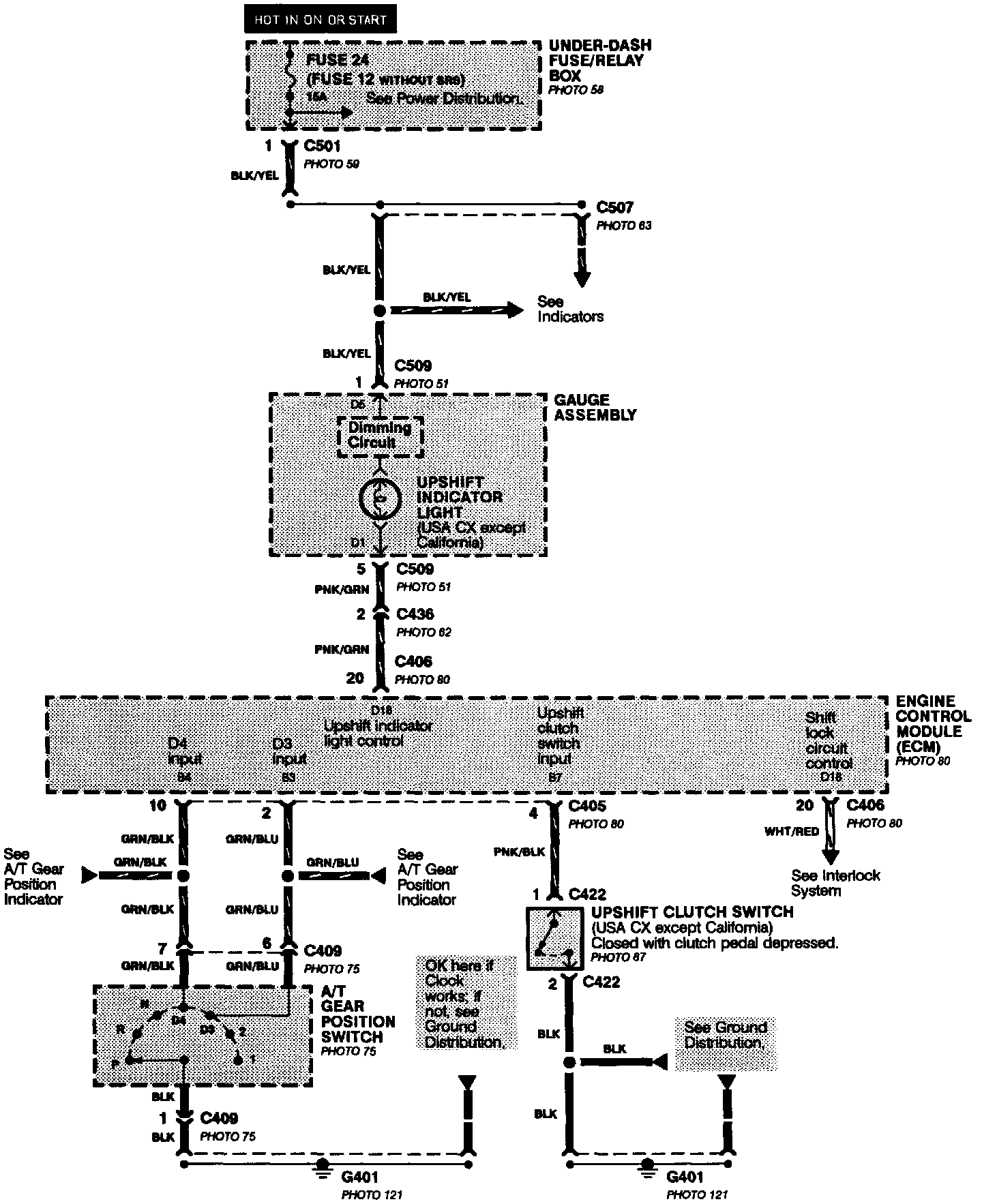

Transmission Switches/Controls, and Upshift Indicator
