Civic L4-1493cc 1.5L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Under-Dash Fuse/Relay Box
>>
Fuse 15, 16, 17, 18 and 19
Fuse 15, 16, 17, 18 and 19

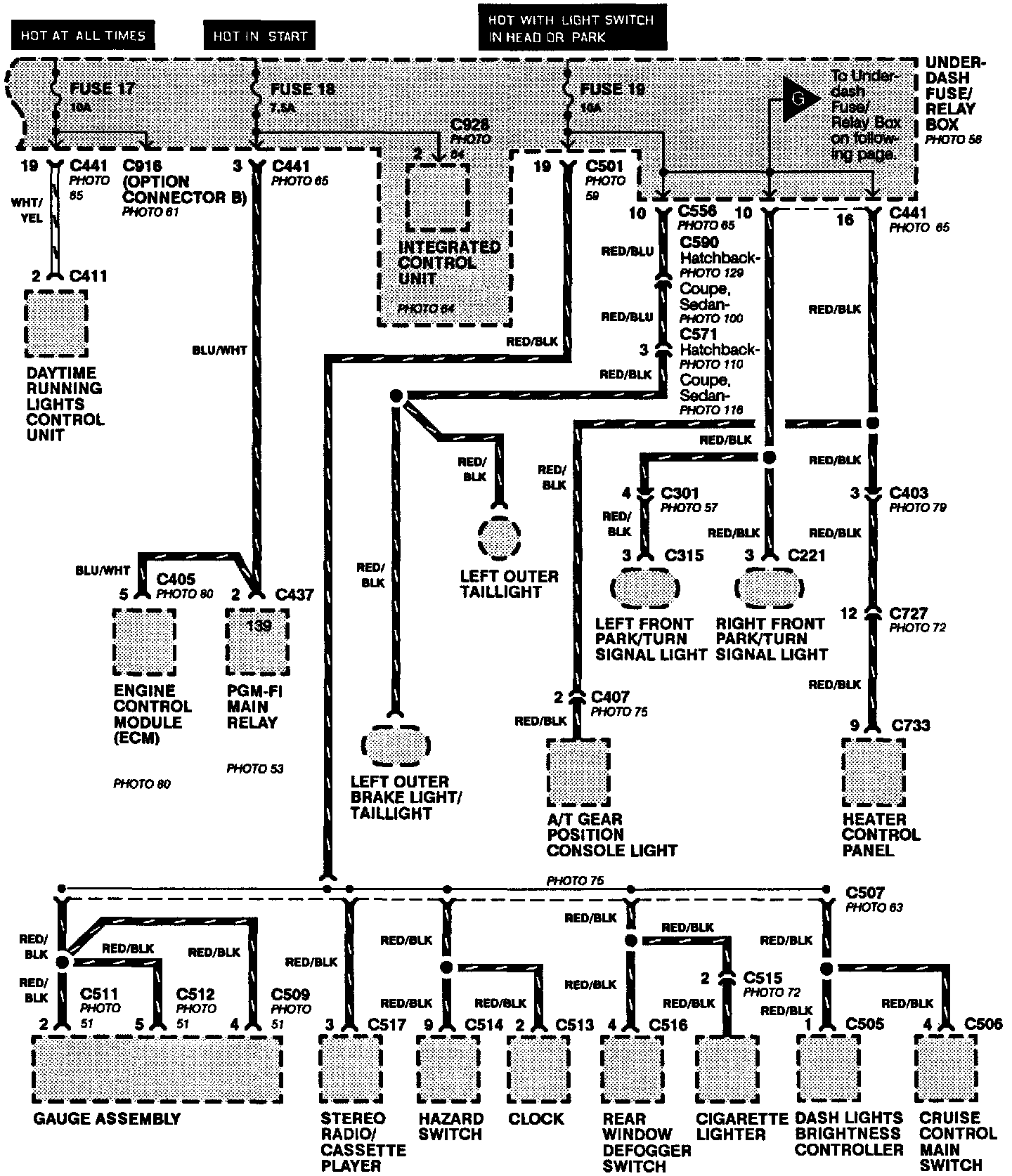

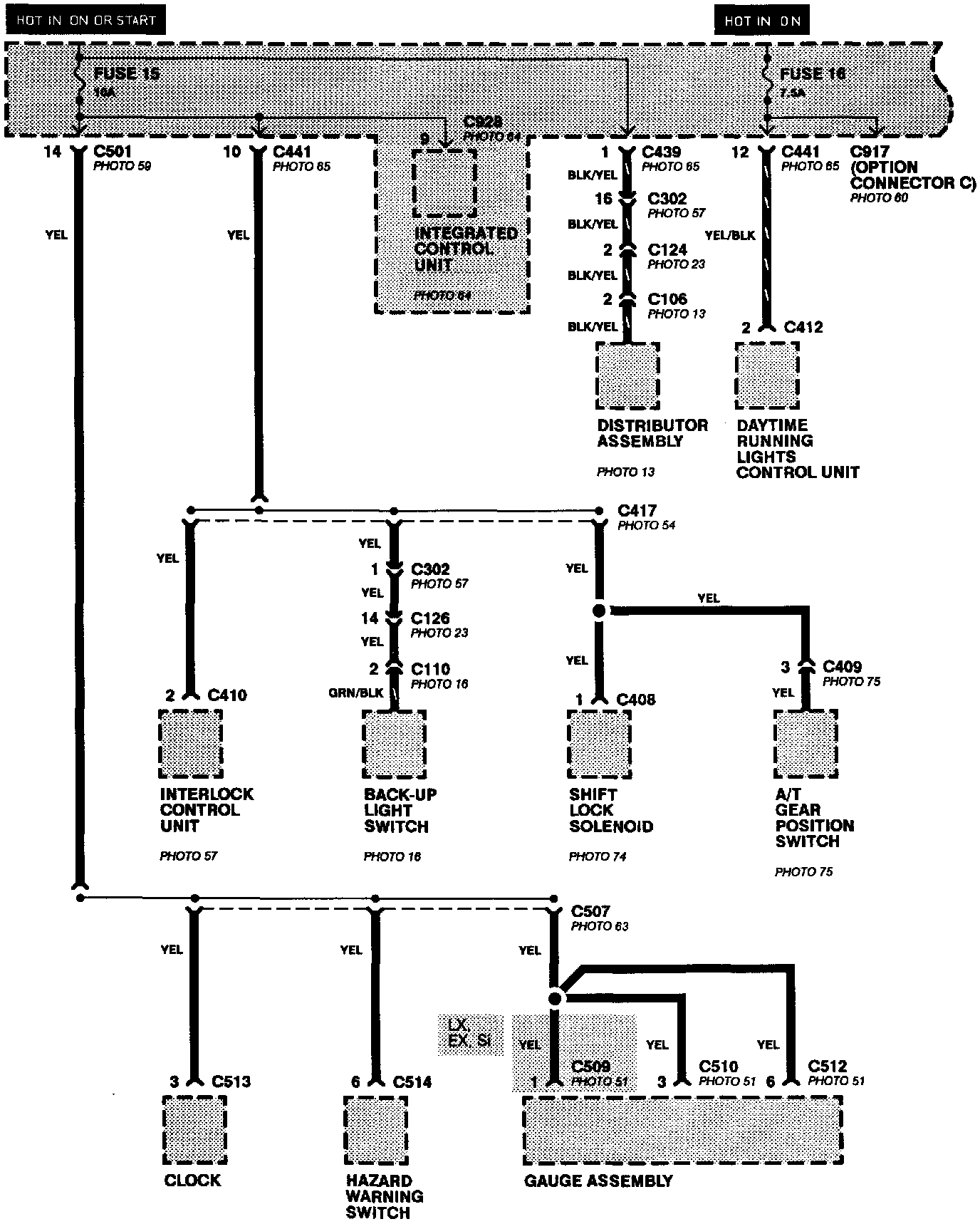

Power Distribution: Fuses And Relays To Components:
Power Distribution: Fuses And Relays To Components:
