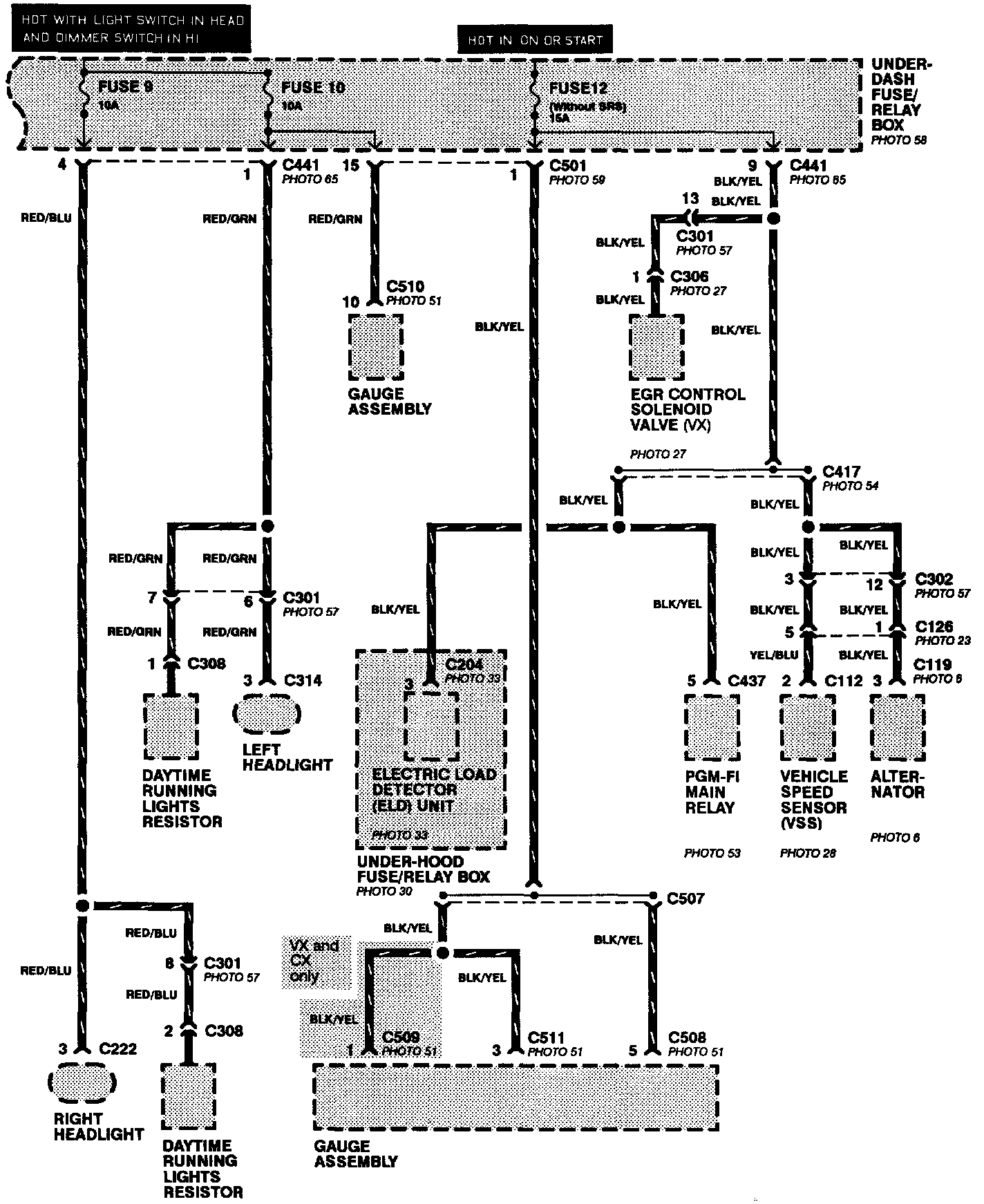

Fuse 1, 3, 6, 9, 10 and 12
Fuse 1, 3, 6, 9, 10 and 12
Power Distribution: Fuses And Relays To Components:
Power Distribution: Fuses And Relays To Components:
