Home >> Honda >> 1993 >> Civic L4-1493cc 1.5L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> License Plate Lamp >> Hatchback

Hatchback

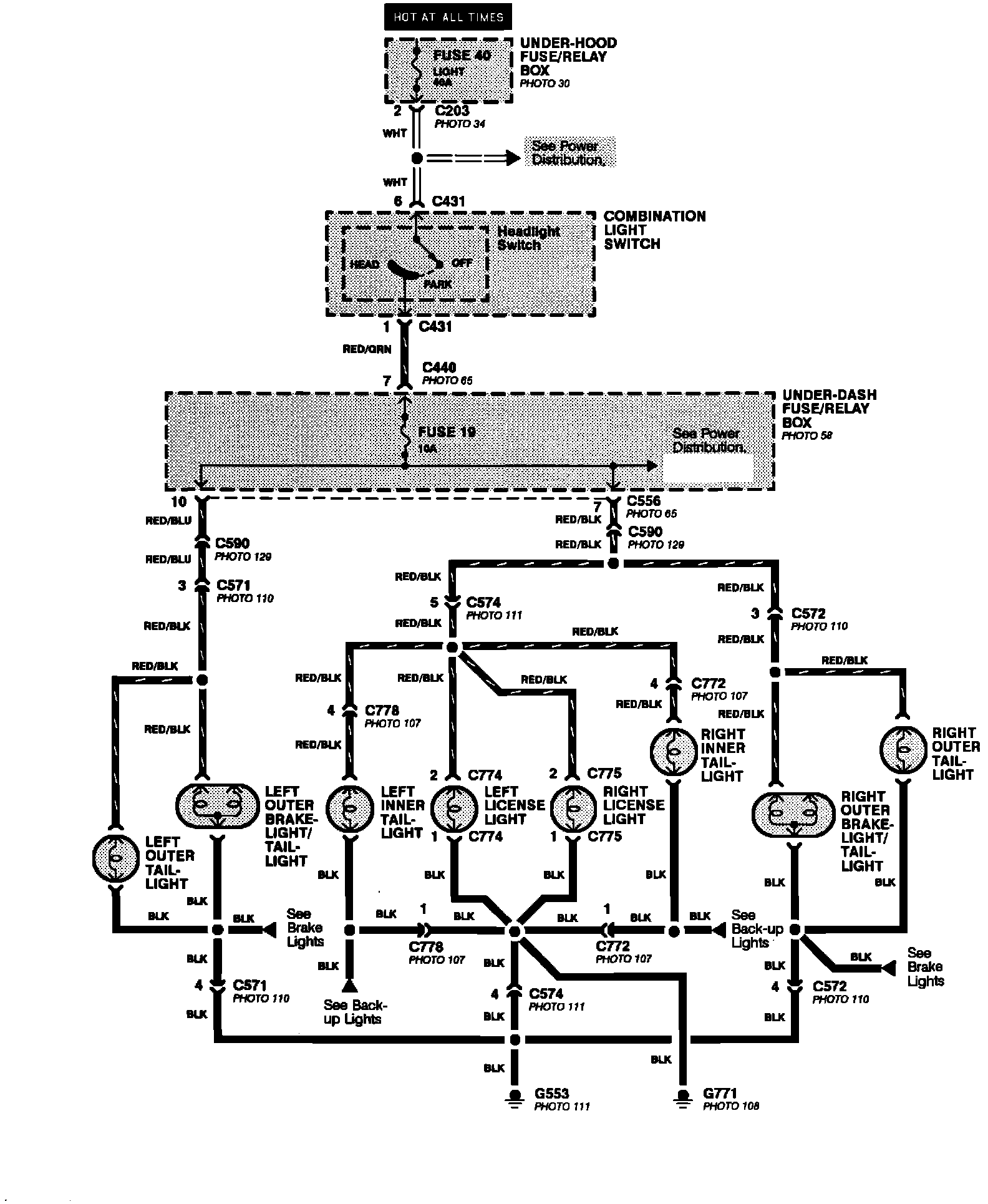

Exterior Lights: Taillights And License Plate (Hatchback):
