Home >> Honda >> 1993 >> Civic L4-1493cc 1.5L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> 3 of 4

3 of 4

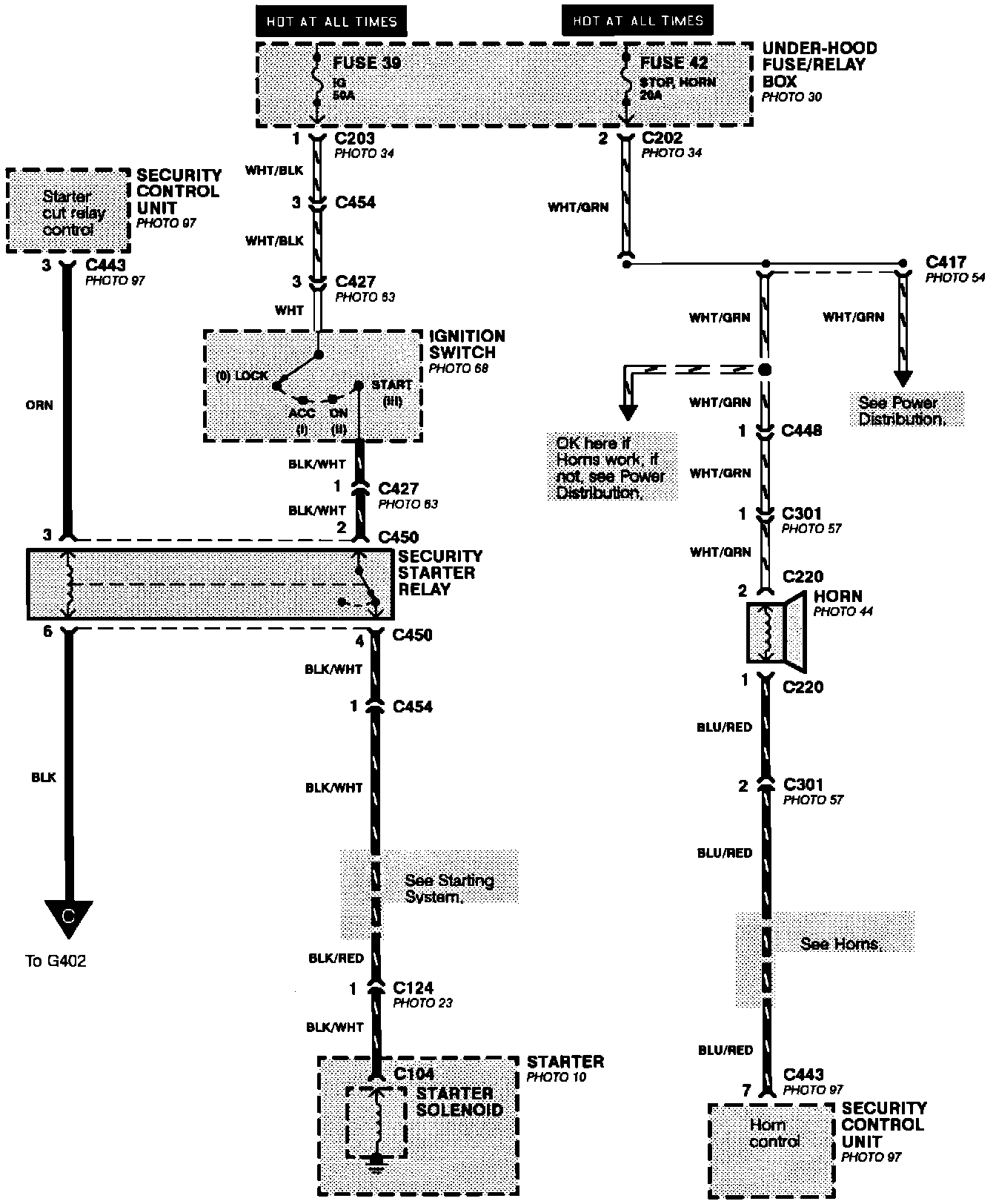

Security System: Starter And Horn:
