EGR Valve Position Sensor: Testing and Inspection

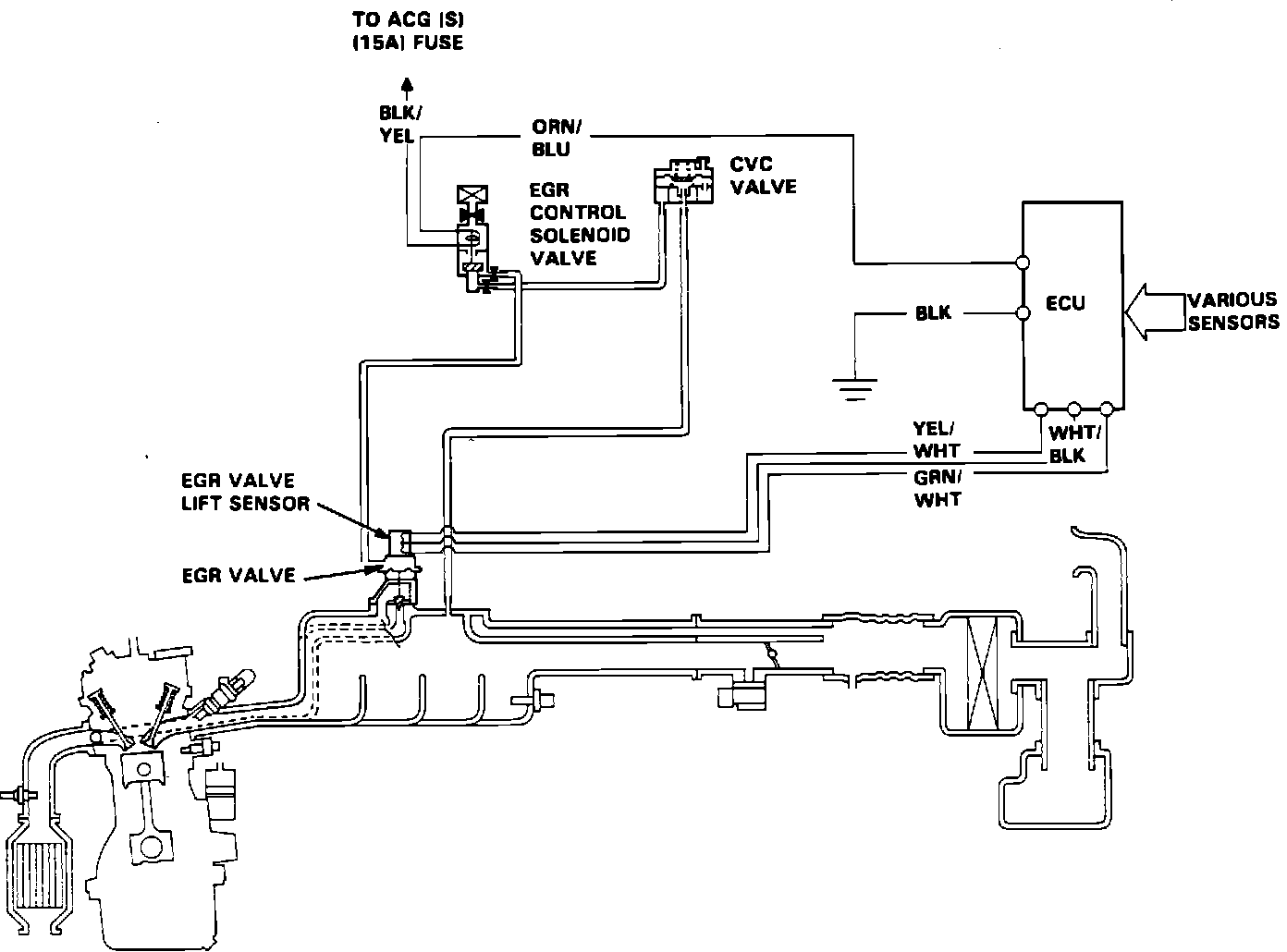

EGR System Diagram:
EGR SYSTEM DIAGRAM

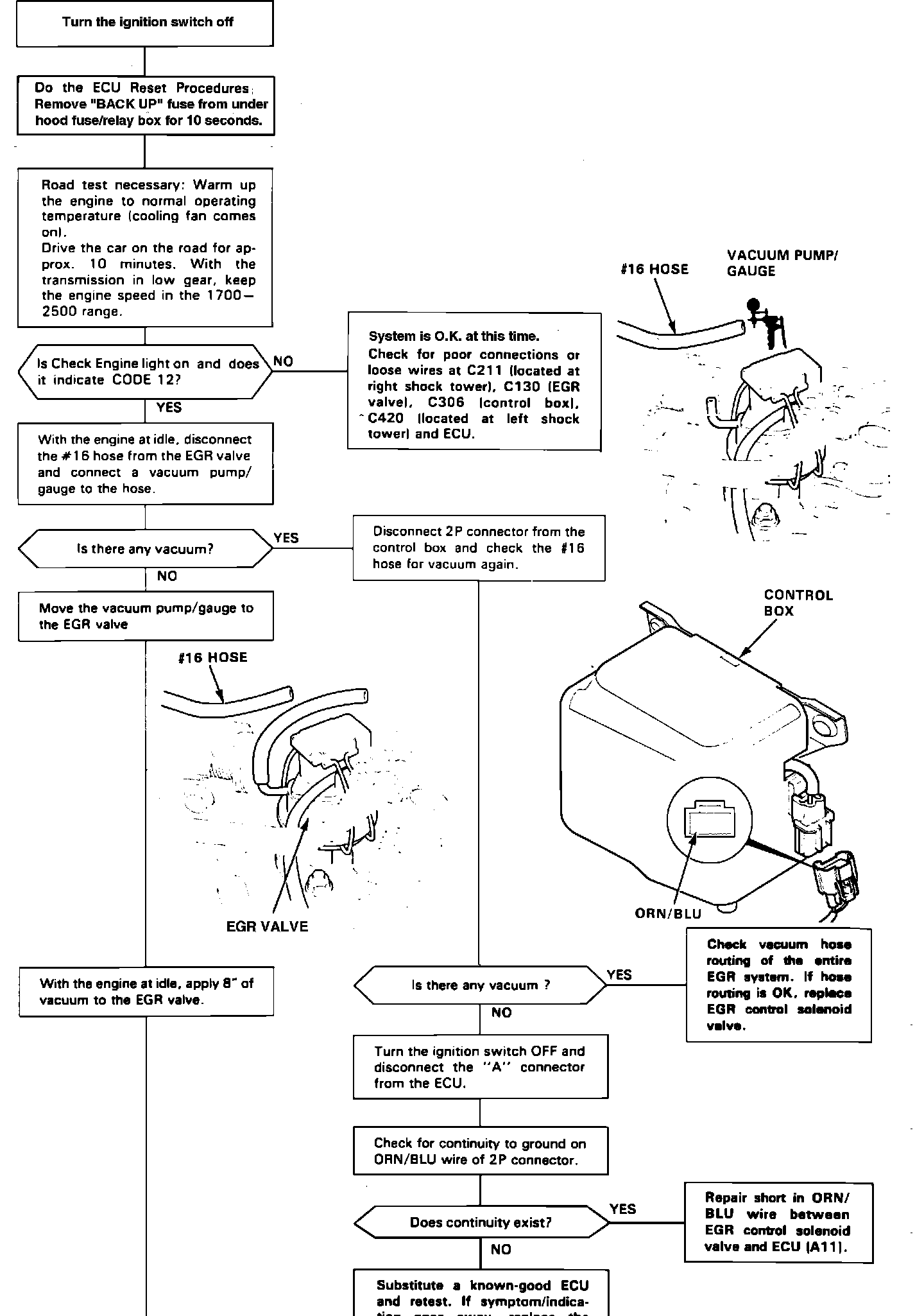

�� f� EGR System Test:
EGR SYSTEM TEST
