Home >> Honda >> 1990 >> Prelude L4-2056cc DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Tightening Specifications

Tightening Specifications

Fig. 3 Front Suspension. 1990-93 Accord & Prelude:

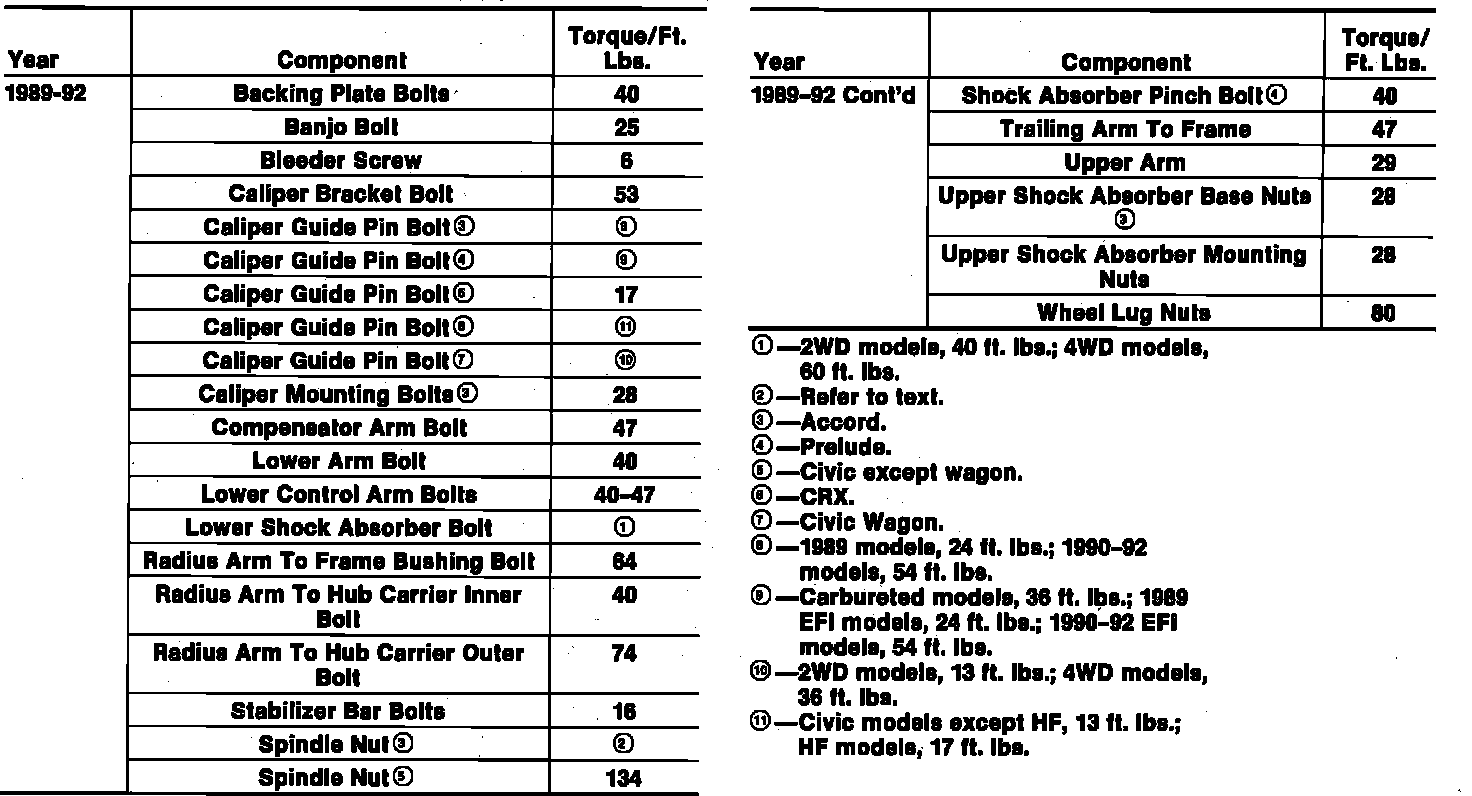

Tightening Specifications:

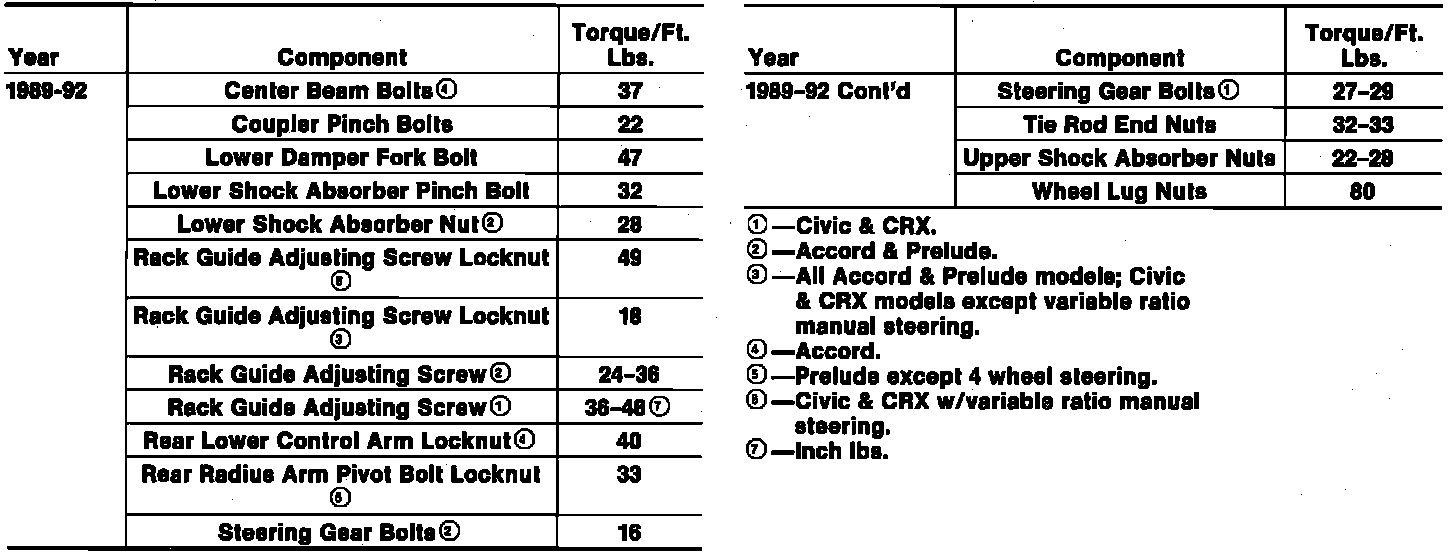

Tightening Specifications:
