Home >> Honda >> 1989 >> Prelude L4-1958cc SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Clutch Switch >> Testing and Inspection

Clutch Switch: Testing and Inspection

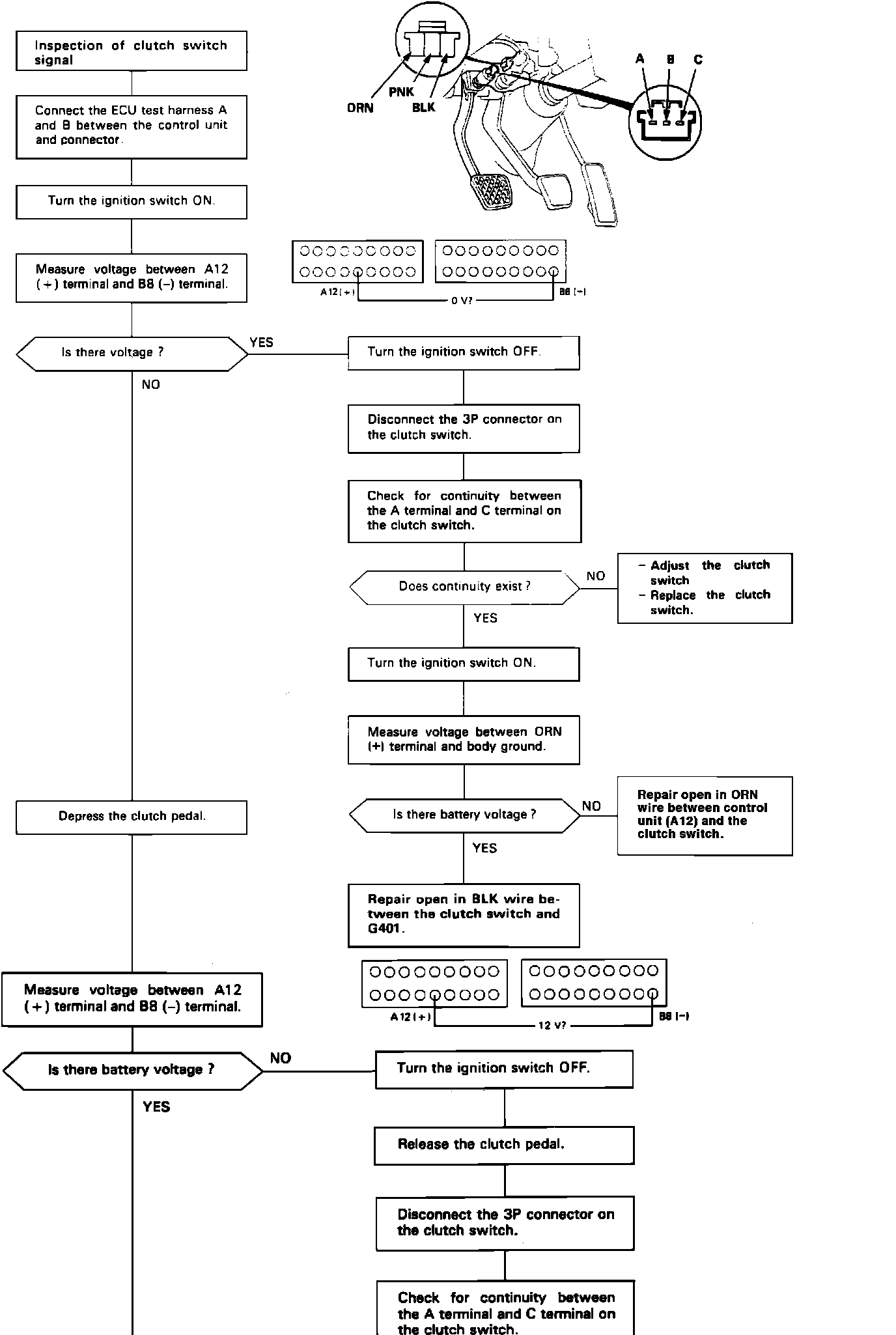

]��Fig. 8 Clutch Switch Signal Test (M/T only):
