Control Box

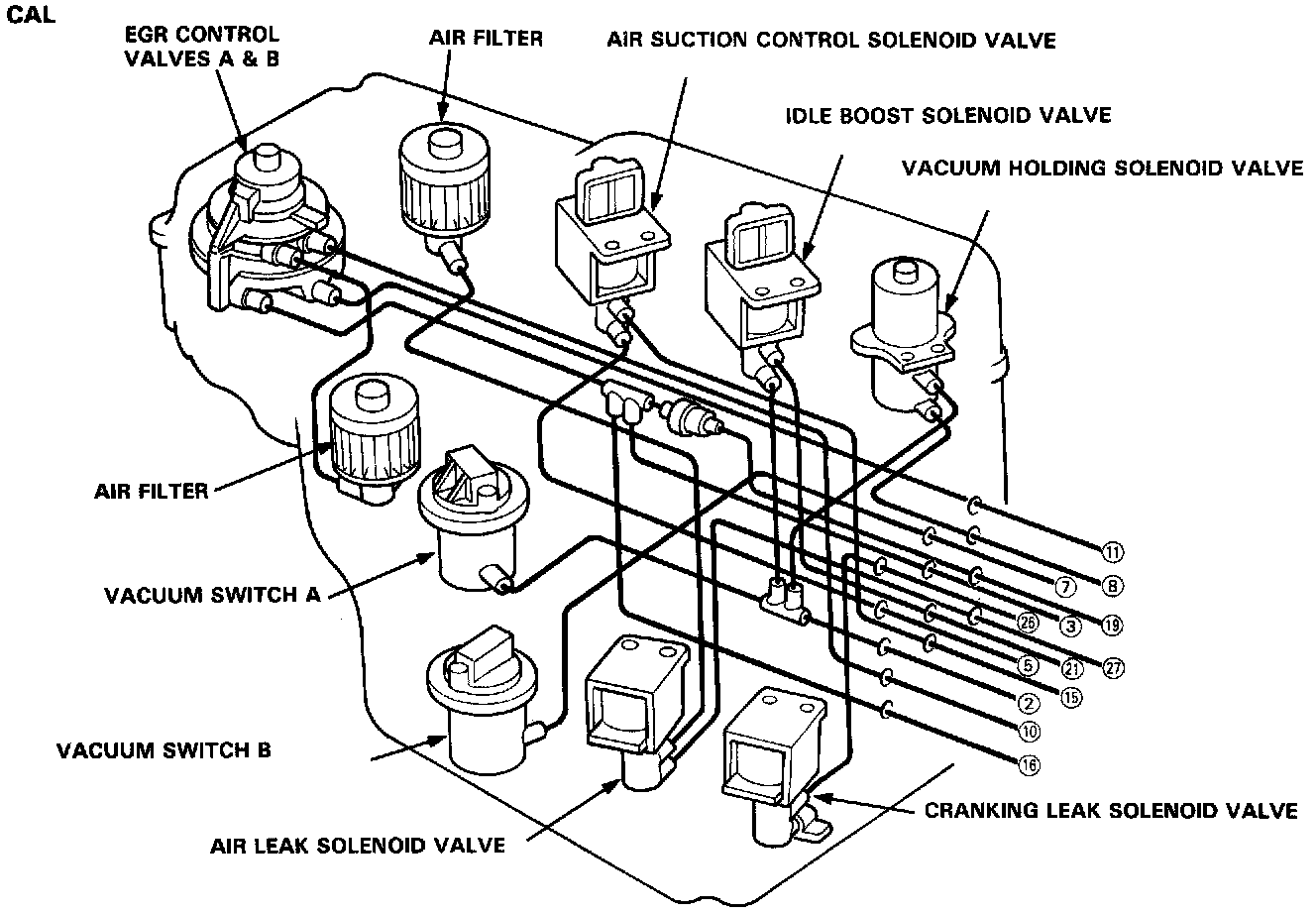

Control Box Automatic Trans California:

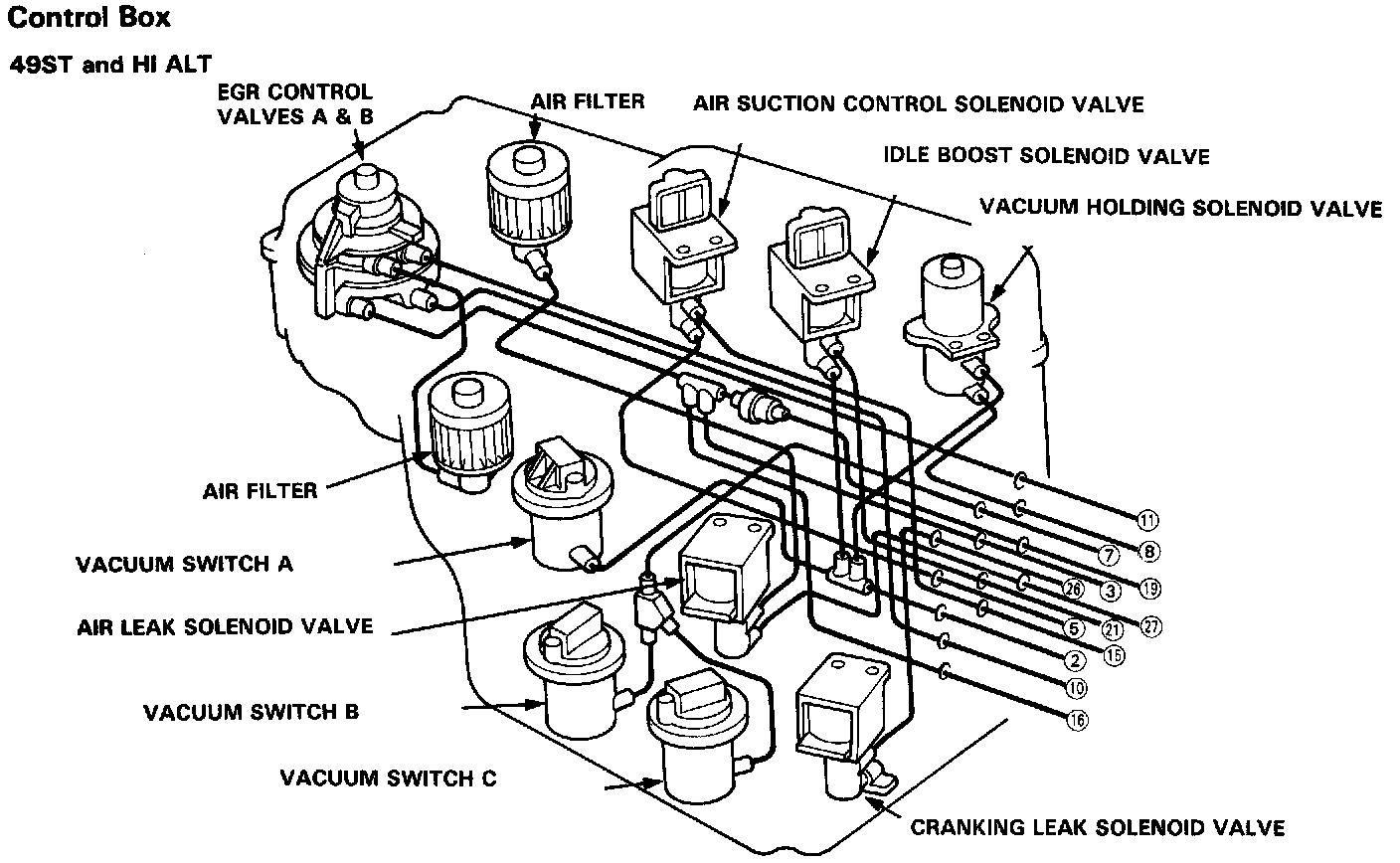

Control Box Federal Automatic Trans High Altitude:

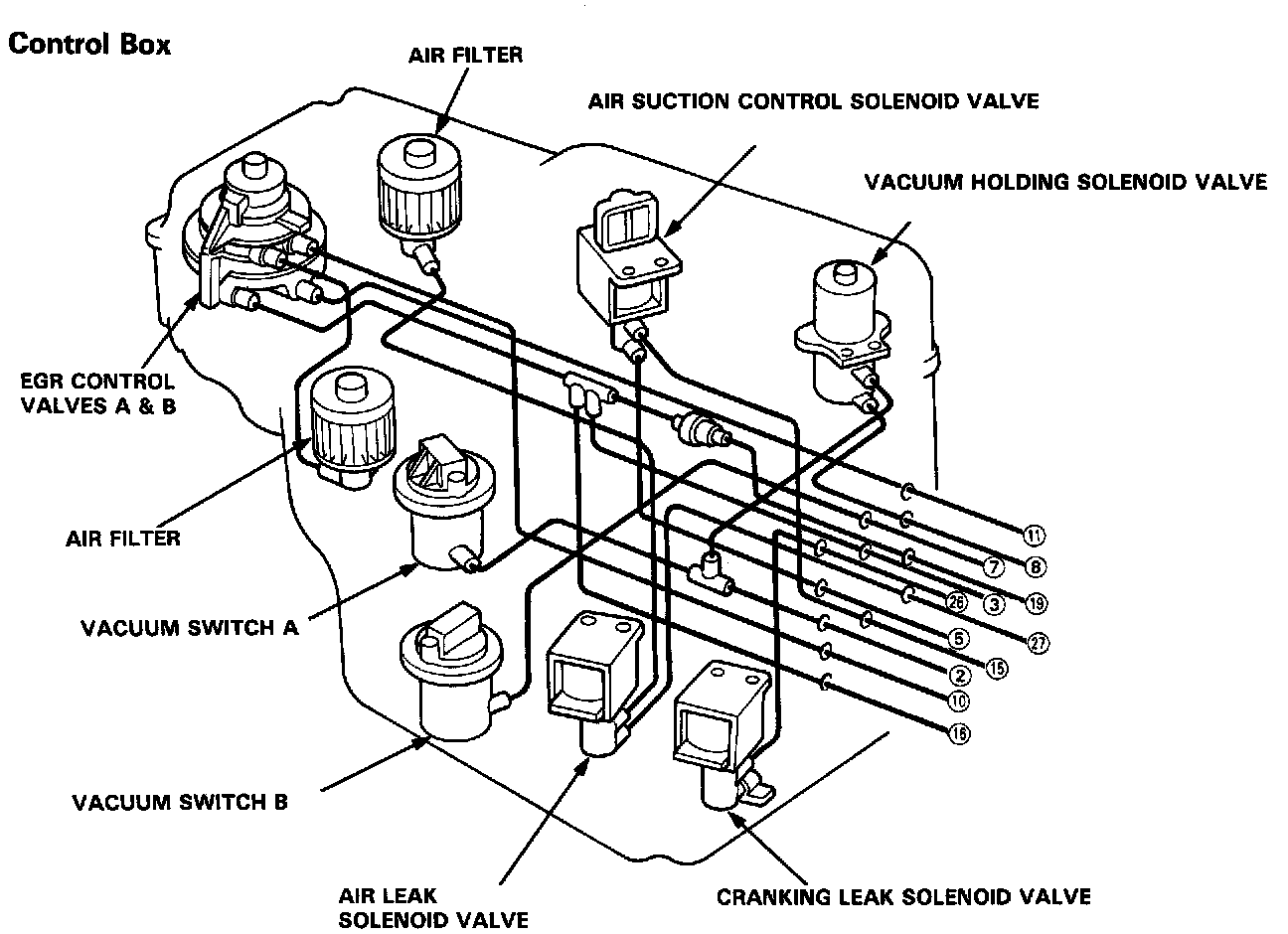

Control Box Manual Trans Carbureted:
