Feedback Control Solenoid: Testing and Inspection

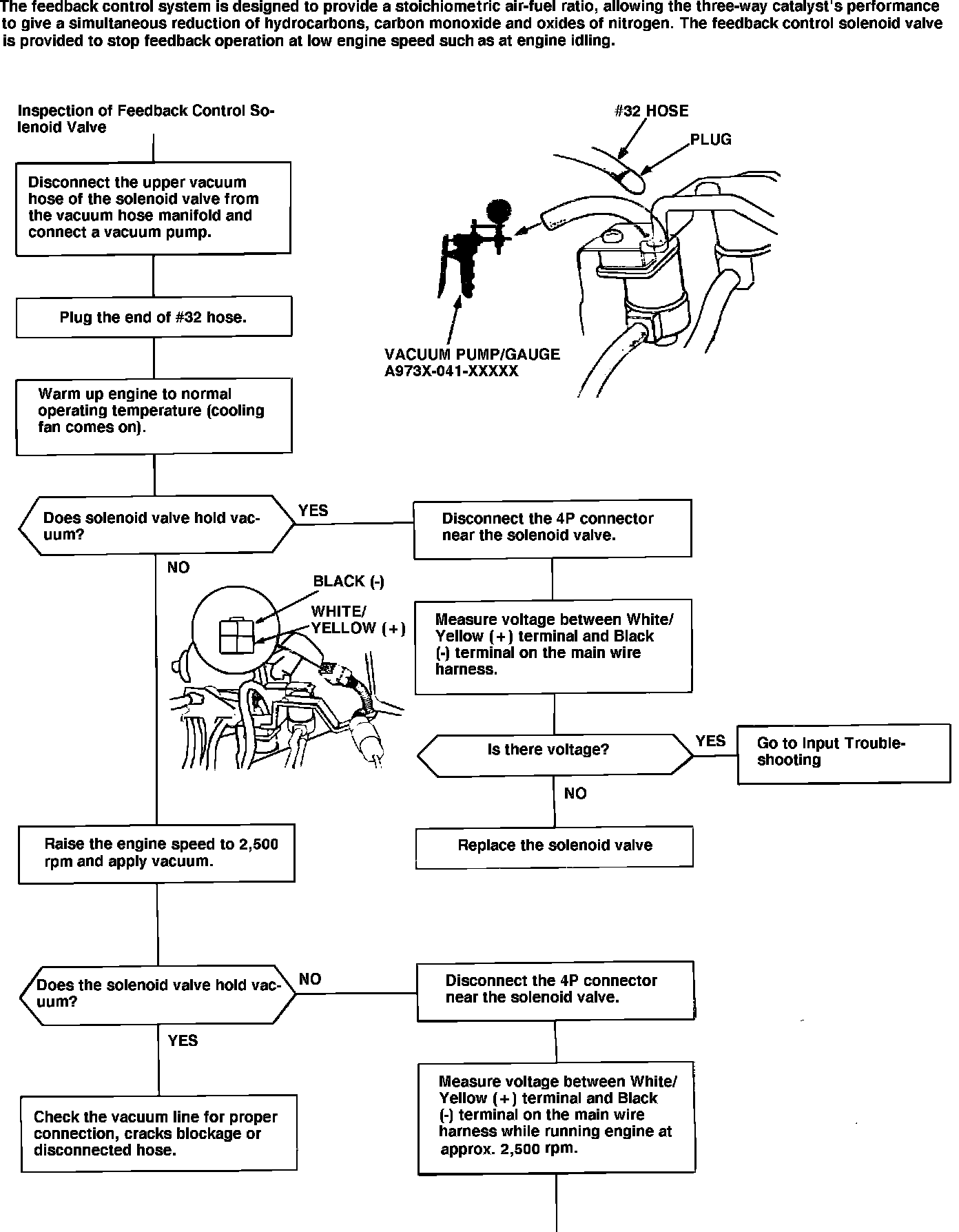

Fig. 24 Troubleshooting Feedback Control Solenoid Valve.:



Fig. 24 Troubleshooting Feedback Control Solenoid Valve .:
