Turn Signals
Turn Signals

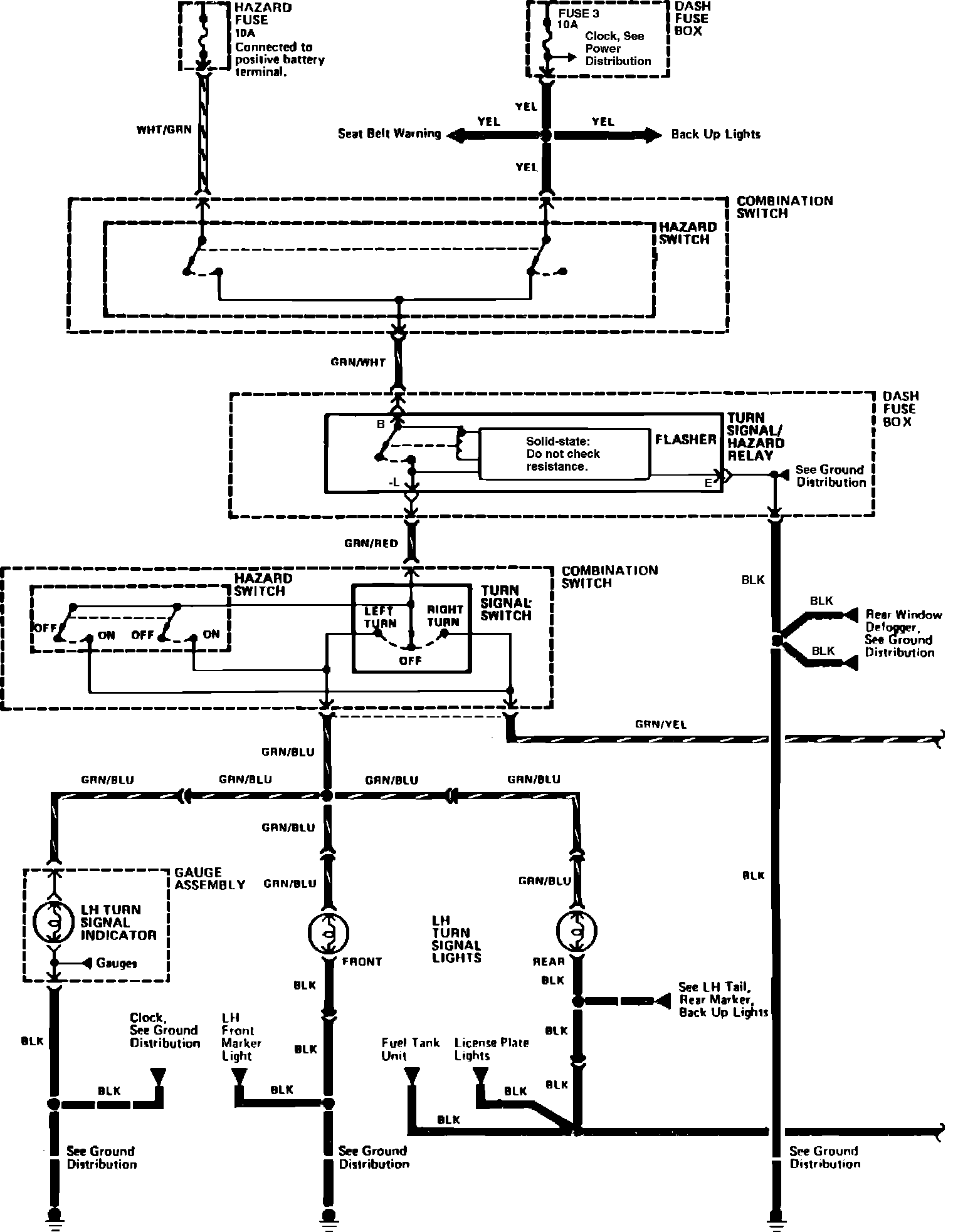

Fig. 81a Hazard Flasher & Turn Signal Lights Wiring Circuit (Part 1 of 2). CRX:
Fig. 81b Hazard Flasher & Turn Signal Lights Wiring Circuit (Part 2 of 2). CRX:
