Air Conditioning System
Air Conditioning System

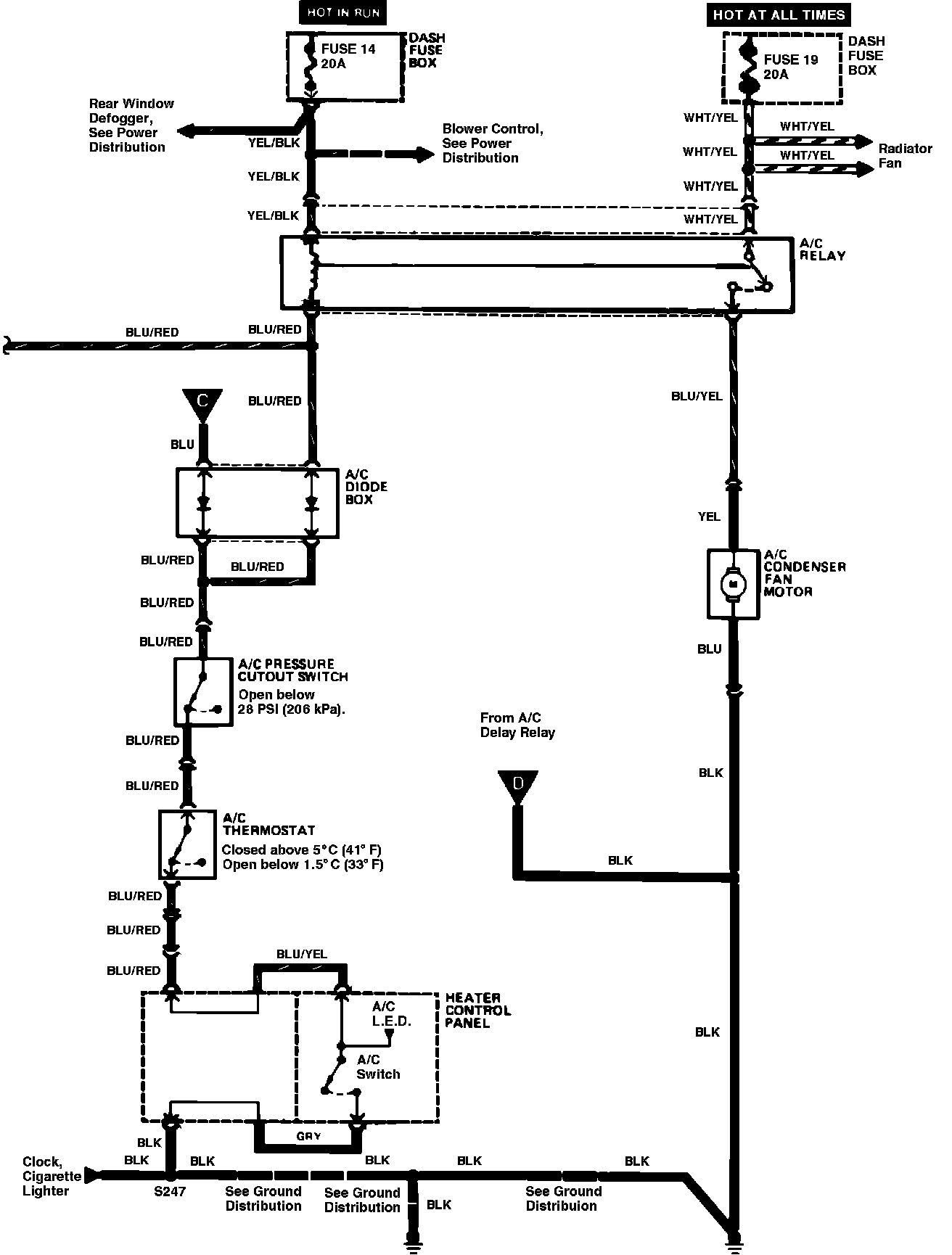

Fig. 64a Air Conditioning Wiring Circuit (Part 1 of 2). CRX:
Fig. 64b Air Conditioning Wiring Circuit (Part 2 of 2). CRX:
