Chart 5 Rear Wiper Motor Runs Continuously

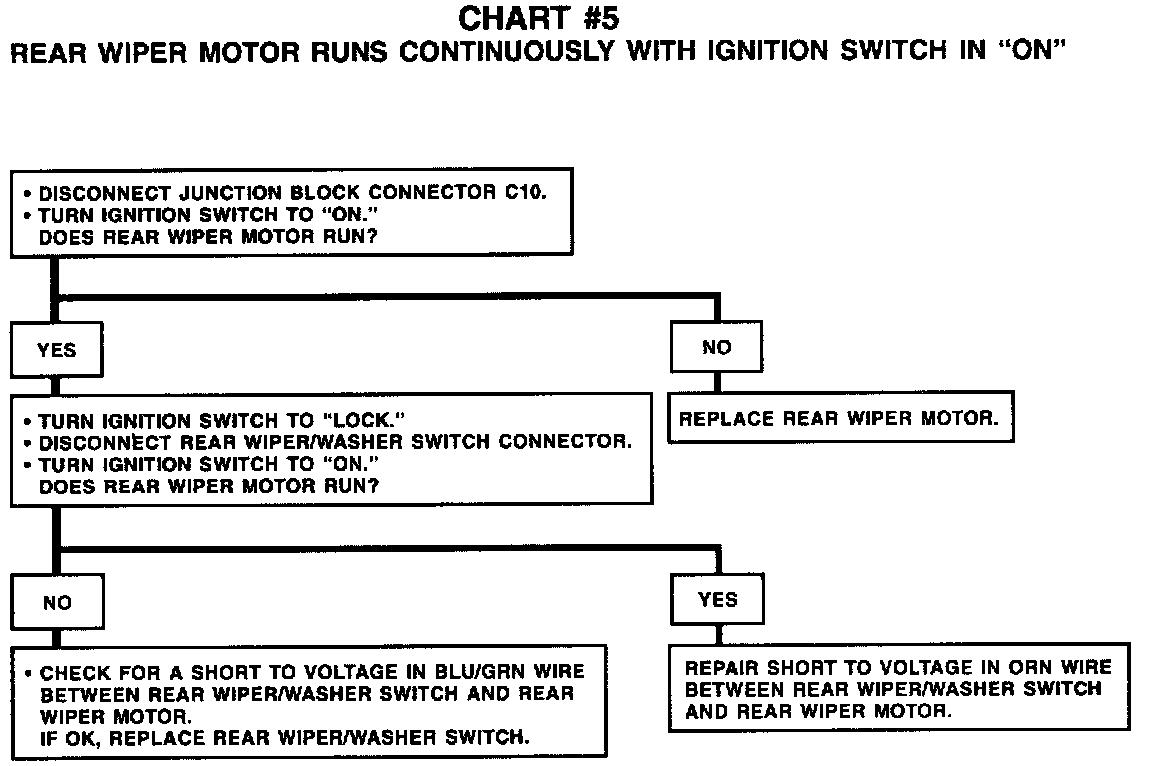

Chart #5 Rear Wiper Motor Runs Continuously With Ignition Switch In ON:
