Home
>>
Geo
>>
1996
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Front
>>
Without Pulse
>>
Chart 7 Wipers Do Not Operate
Chart 7 Wipers Do Not Operate

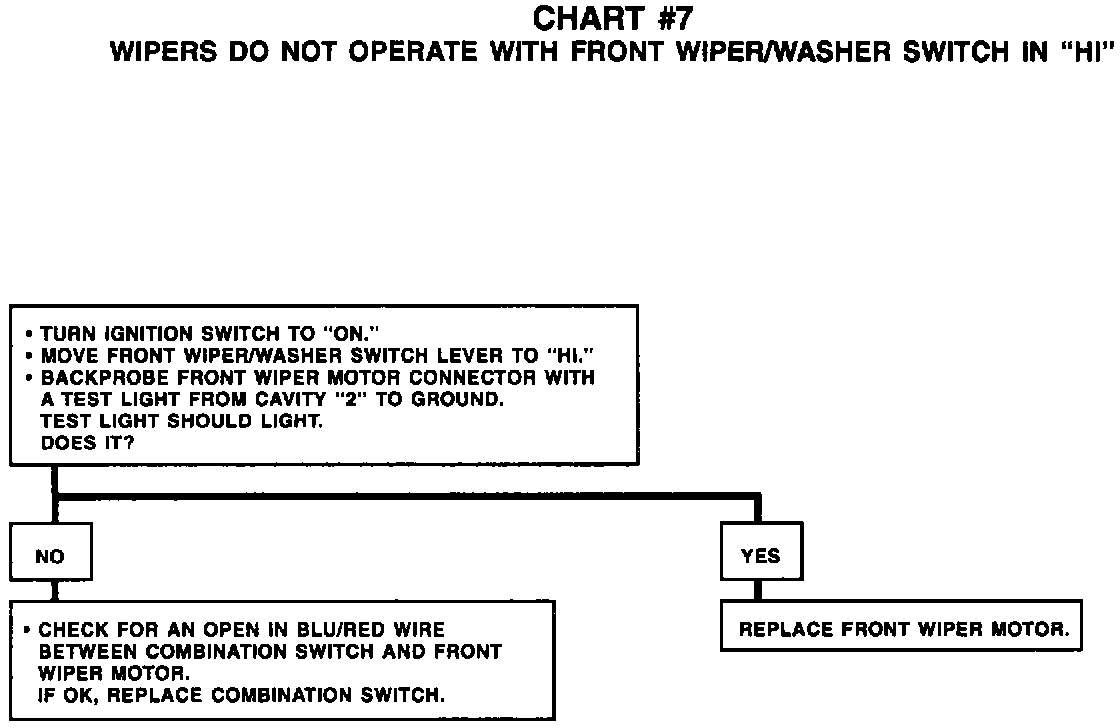

Chart #7 Wipers Do Not Operate With Front Wiper/Washer Switch In HI:
