Geo
>>
1996
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Front
>>
Without Pulse
>>

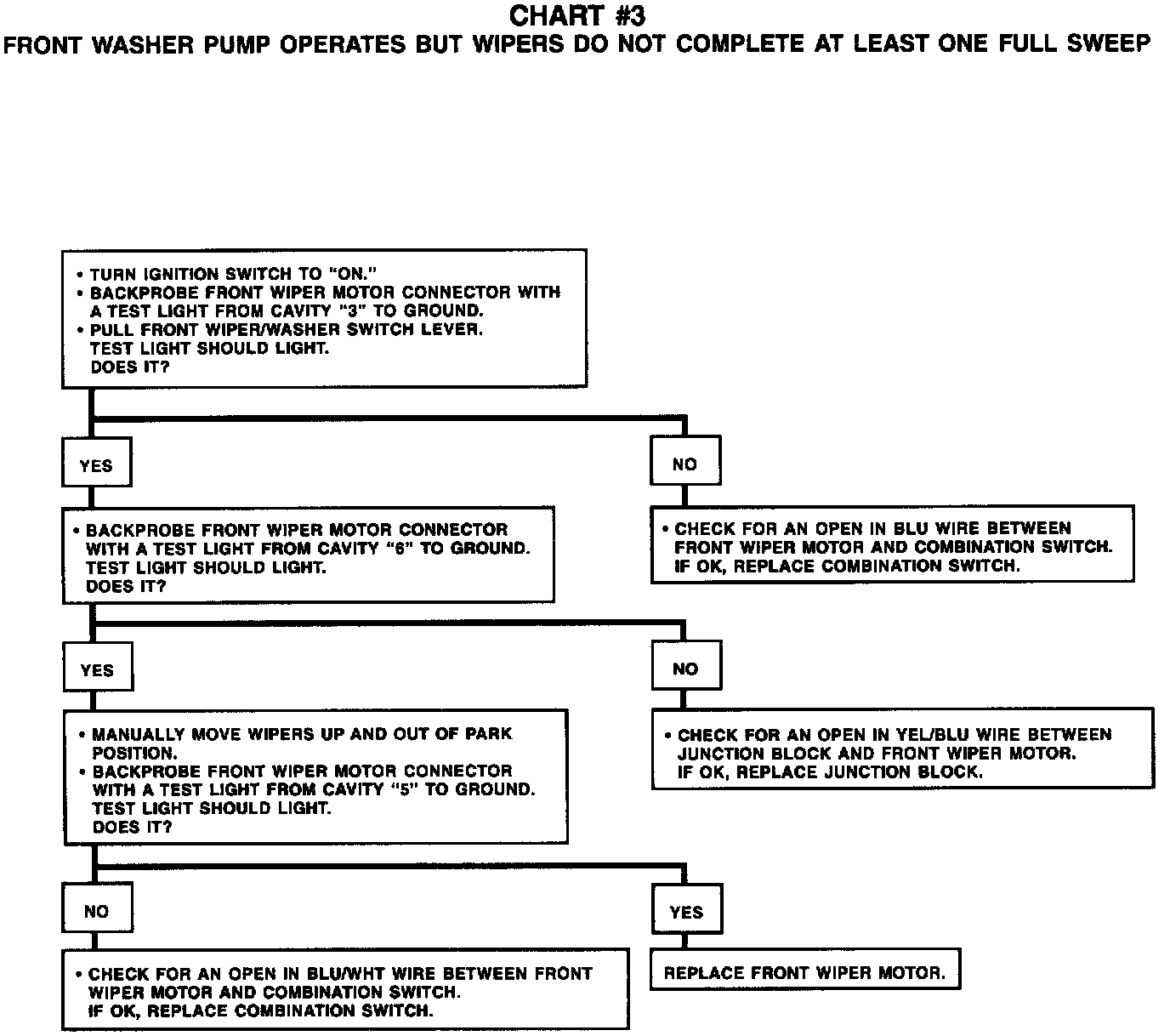

Chart 3 Front Washer Pump Operates
Chart 3 Front Washer Pump Operates
Chart #3 Front Washer Pump Operates:
