Geo
>>
1996
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Front
>>
With Pulse
>>

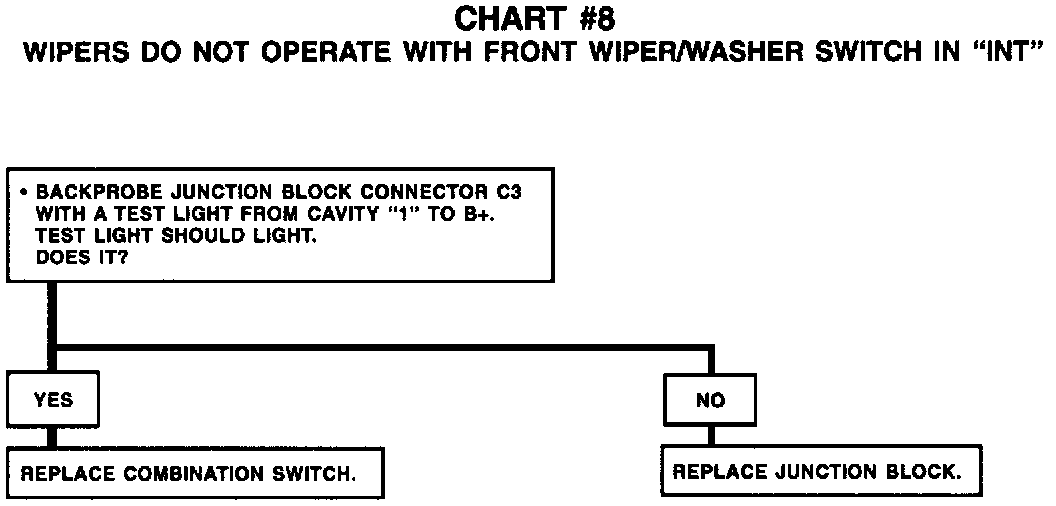

Chart 8 Wipers Do Not Operate
Chart 8 Wipers Do Not Operate
Chart #8 Wipers Do Not Operate With Front Wiper/Washer Switch In INT:
