Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Front
>>
With Pulse
>>
Chart 2 Front Washer Pump Does Not Operate
Chart 2 Front Washer Pump Does Not Operate

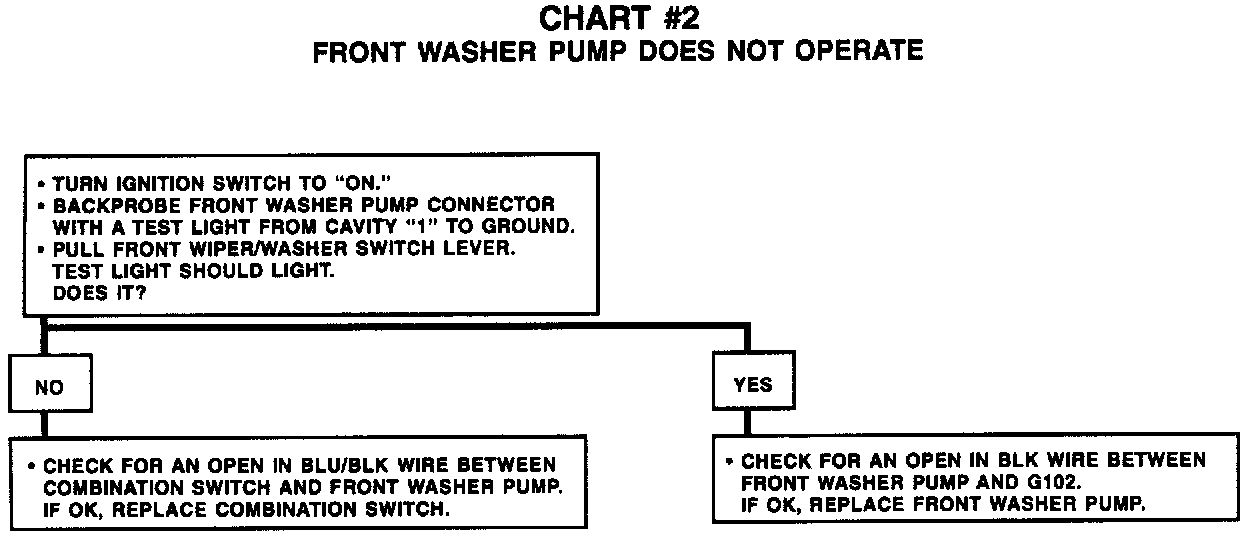

Chart #2 Front Washer Pump Does Not Operate:
