Symptom Diagnostic Charts - Brake Transaxle Shift Interlock
>>

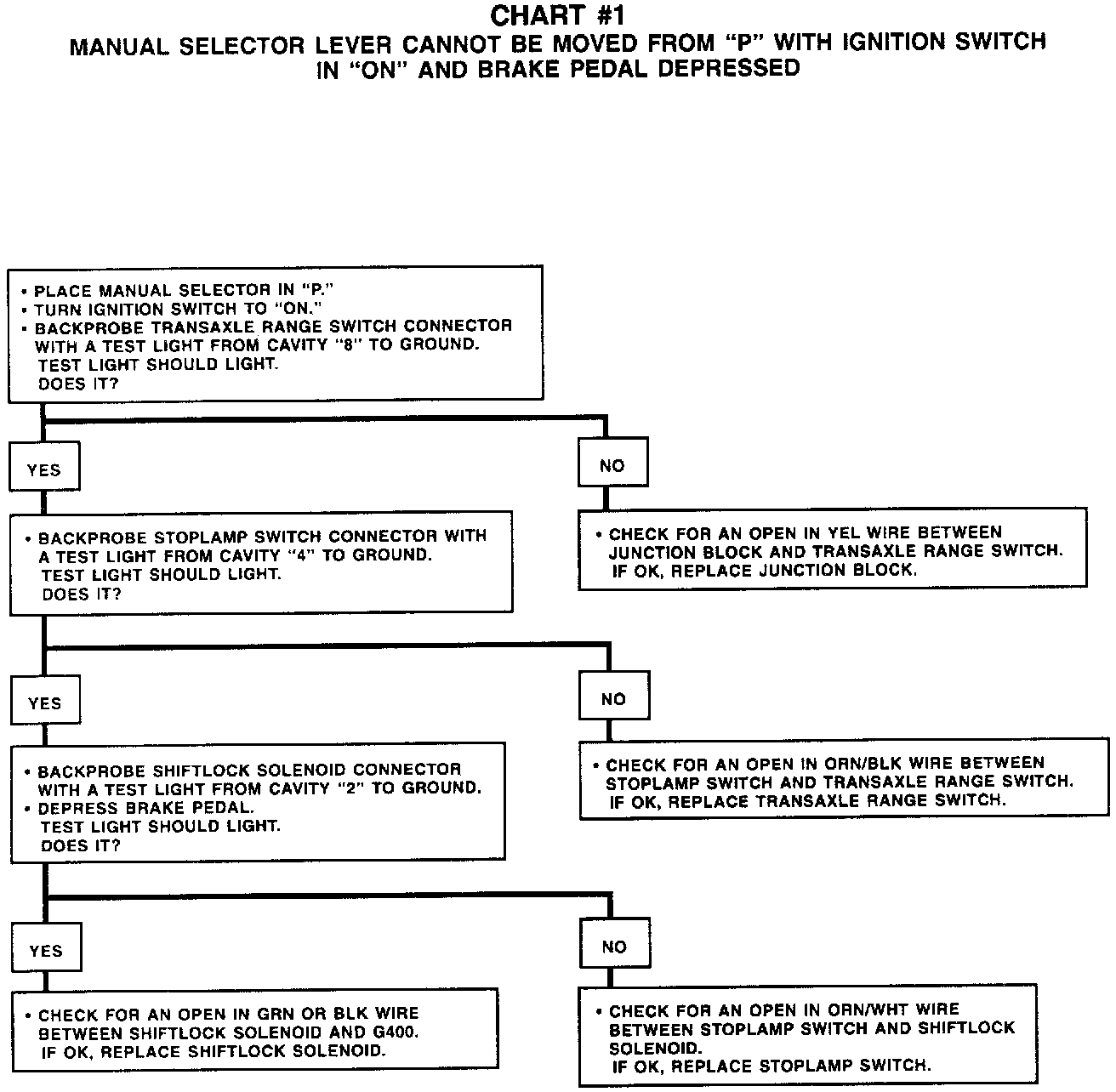

Chart #1 Manual Selector Lever Cannot Be Moved
Chart #1 Manual Selector Lever Cannot Be Moved
Chart #1 Manual Selector Lever Cannot Be Moved:
