Reaction Gear Sets and One-Way Clutch

REMOVE OR DISCONNECT

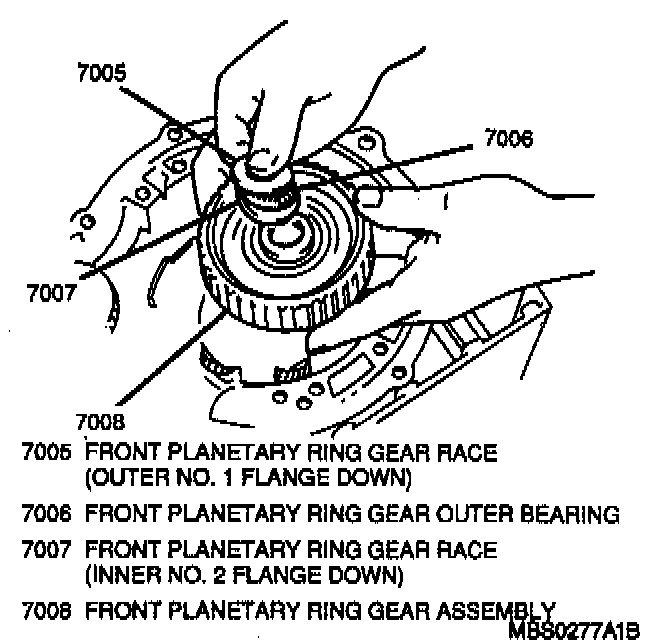

1. Front planetary ring gear outer bearing and bearing races.
2. Front planetary ring gear assembly.
3. Front planetary carrier inner bearing and bearing races.

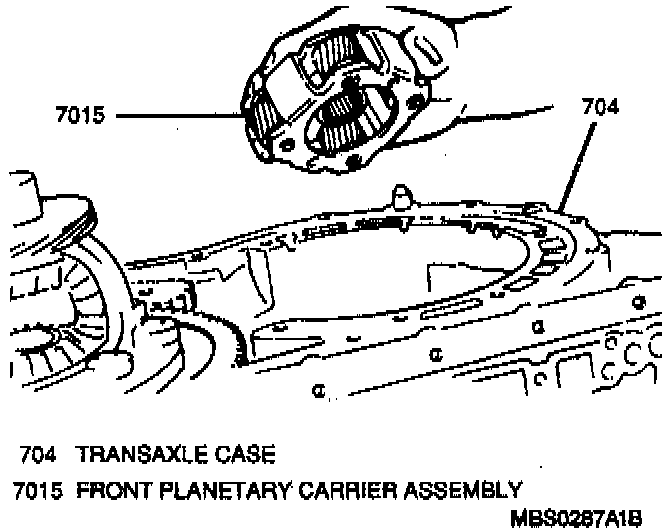

4. Front planetary carrier assembly from sun gear input drum.
5. Front planetary carrier bearing and race from sun gear.

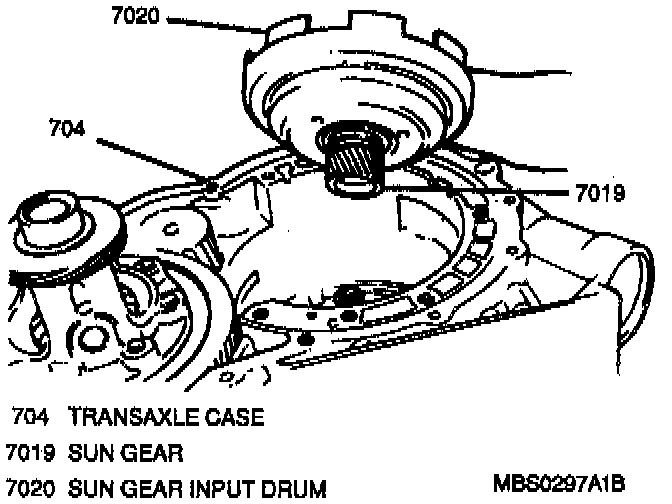

6. Sun gear input drum from rear planetary carrier.
7. Planetary thrust washer and rear planetary outer thrust washer from rear planetary carrier.

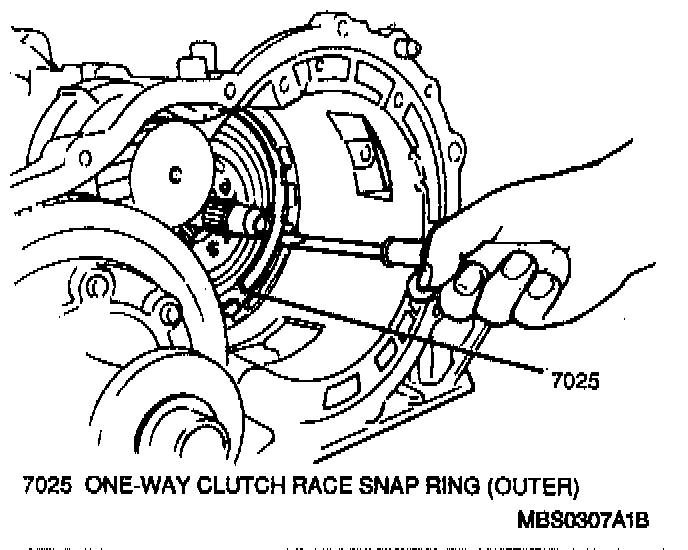

8. Outer one-way clutch race snap ring. Use caution not to damage the inside of the transaxle case.





9. One-way clutch assembly and rear planetary carrier assembly.
10. No. 1 inner one-way clutch race snap ring.





11. Rear planetary ring gear, ring gear bearing, bearing races and rear planetary inner thrust washer.
