Intermediate Band and Forward/Direct Clutch Assemblies

REMOVE OR DISCONNECT

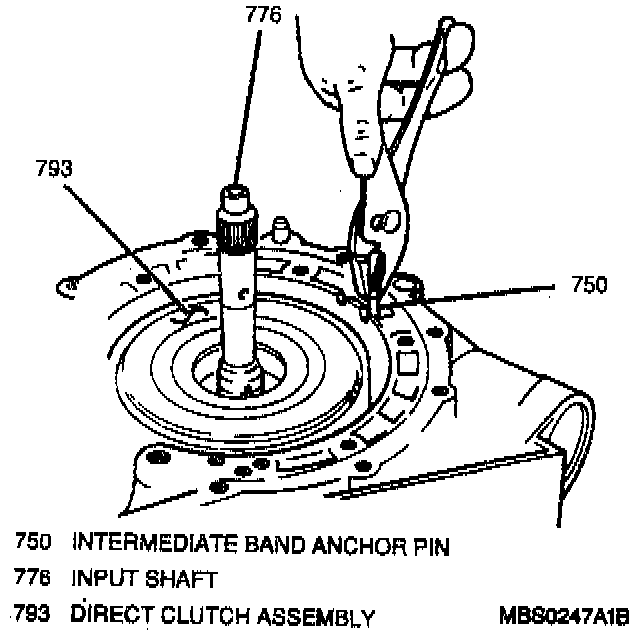

1. Intermediate band anchor pin.

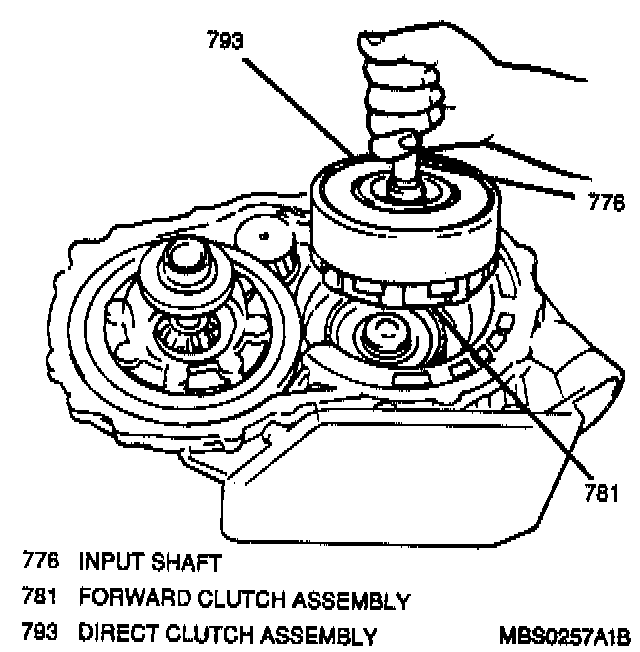

2. Direct clutch and forward clutch assemblies by grasping the input shaft and gently lifting up. Use caution not to drop the front planetary ring gear bearing and/or races which sometimes may adhere to the forward clutch assembly.

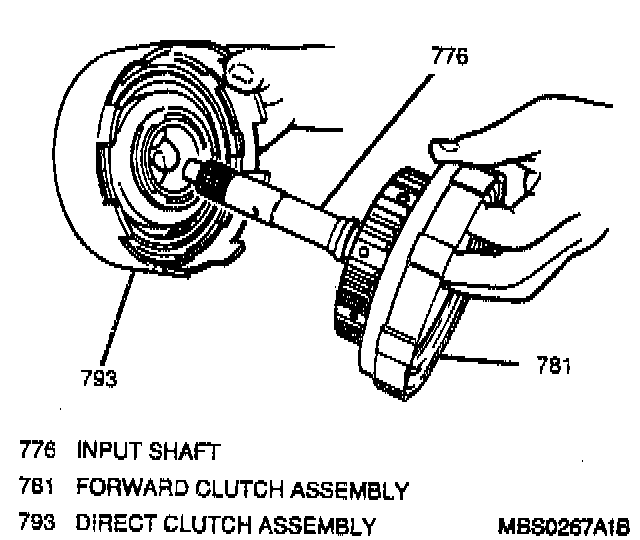

3. Direct clutch assembly from the forward clutch housing and input shaft.
4. Intermediate band from transaxle case.
