Parking Lock Pawl and Manual Linkage

REMOVE OR DISCONNECT

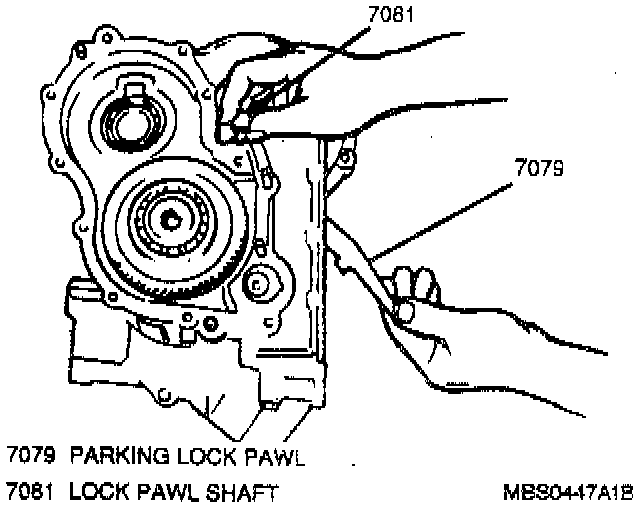

1. Parking lock pawl shaft and spring.
2. Parking lock pawl.

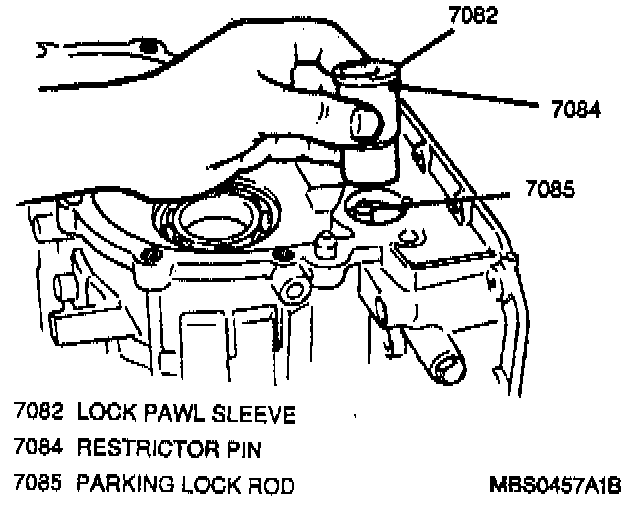

3. Parking lock pawl sleeve.

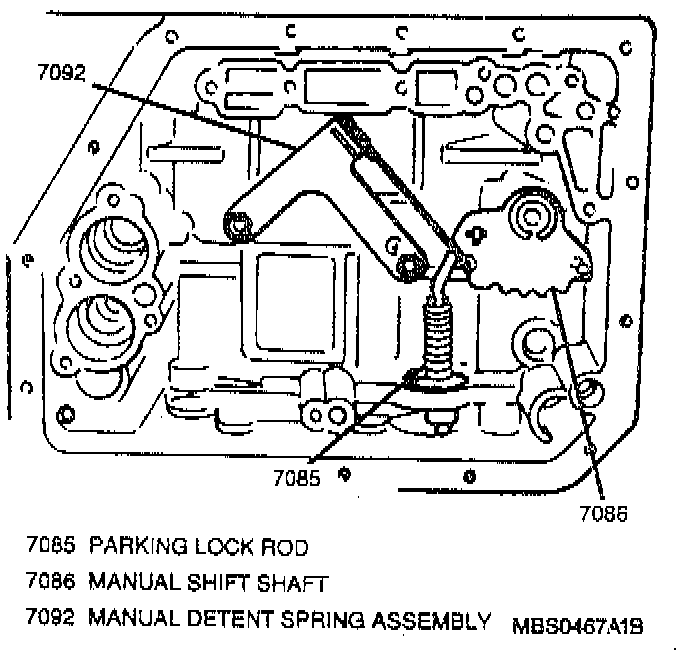

4. Manual detent spring assembly.

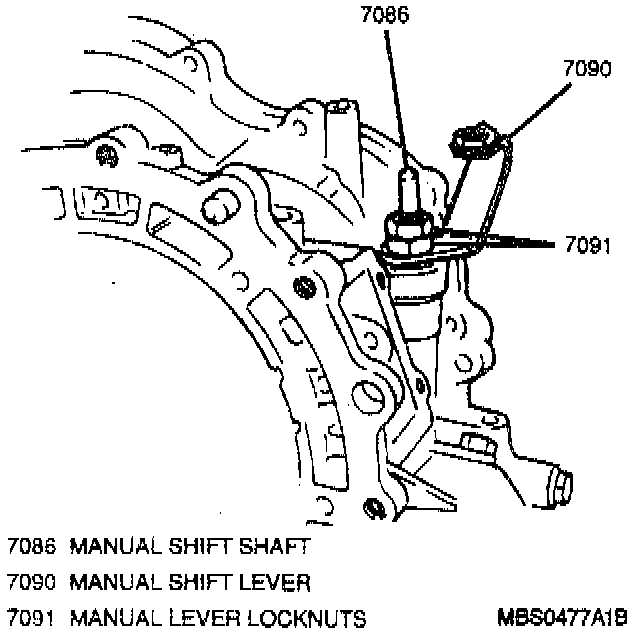

5. Manual lever locknuts.
6. Manual shift lever and manual shift shaft.
